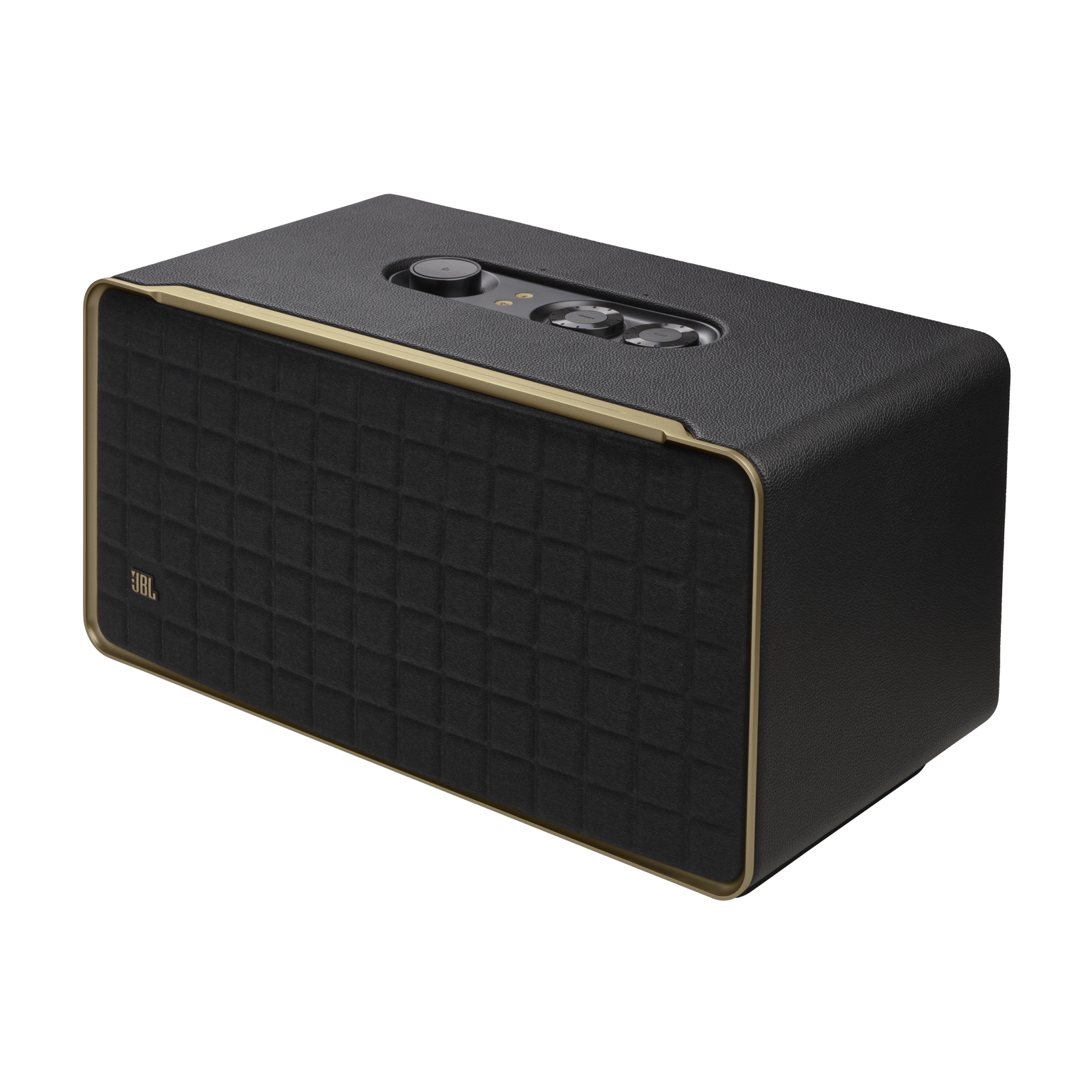

JBL Authentics 500

General Specifications

Sound system

3.1 & Dolby Atmos Music

Power supply

100 – 240V AC, ~ 50/60Hz

Total speaker power output (Max @THD 1%)

270W

Transducer

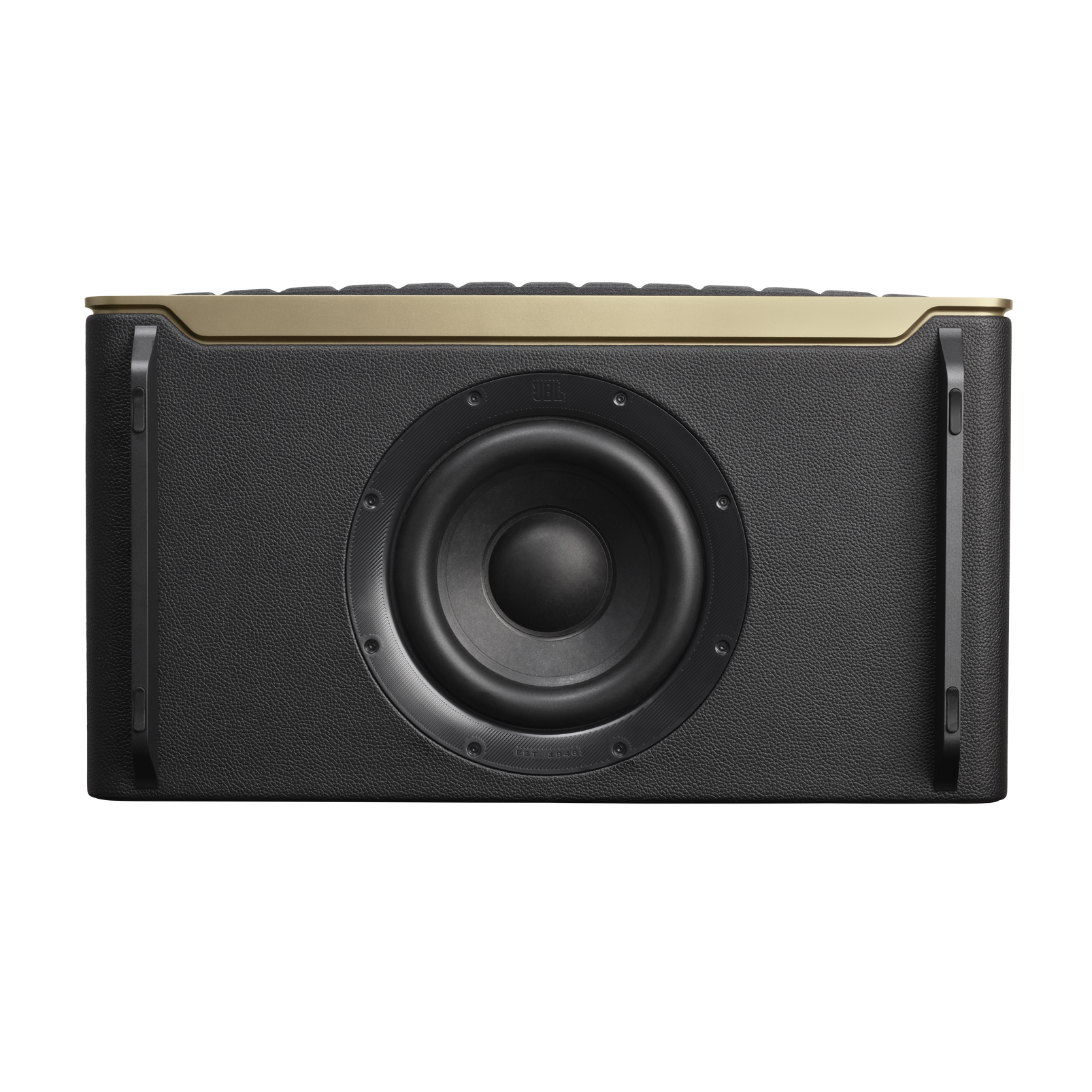

3 x 25mm aluminum dome tweeter + 3 x 2.75 midrange + 6.5 subwoofer

Networked standby power

< 2.0 W

Operating temperature:0 °C – 45 °C

Audio Specifications

Frequency response

40Hz – 20kHz (-6dB)

Audio inputs:1 Audio in, Bluetooth/WIFI, Ethernet and USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Dimensions (W x H x D)

447 x 240 x 255.7 mm / 17.60 x 9.45 x 10.07

Weight

7.8 kg / 17.20 lbs

Packaging dimensions (W x H x D)

515 x 322 x 315 mm / 20.3 x 12.7 x 12.4

Packaging Weight

11.4 kg / 25.1 lbs

Control and Connection Specifications

USB port

Type C

USB rating

5V DC, 1A

Supporting -formats

mp3,WAV

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 – 48 kHz

MP3 bitrate

80 – 320 kpbs

Bluetooth version

5.3

Bluetooth pro-le

A2DP 1.3.2, AVRCP 1.5

Bluetooth transmitter frequency range:2400 MHz – 2483.5 MHz

Bluetooth transmitter power:<17 dBm

Wi-Fi network:IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 – 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power

<20 dBm

5G Wi-Fi transmitter frequency range

5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz

5G Wi-Fi transmitter power

<23 dBm

Features

3D Dolby Atmos

Yes

JBL One App

Yes

3.5 mm audio cable Input

Yes

Voice Assistant integration

Yes

Built-in Wi-Fi

Yes

Bluetooth

Yes

System Specifications

–

* Amazon Alexa and Google Assistant may not be available in all countries or languages. Features and functionality may vary.

–

?2023 Amazon.com, Inc. or it’s affiliates. Amazon, Alexa, and all related marks are trademarks of Amazon.com, Inc. or its affiliates.

–

Google is a trademark of Google LLC.

–

– https://www.jbl.com/services-availability.html

Please check here for your country/language

–

Availability of Dolby Atmos Music may depend on subscription plan.
