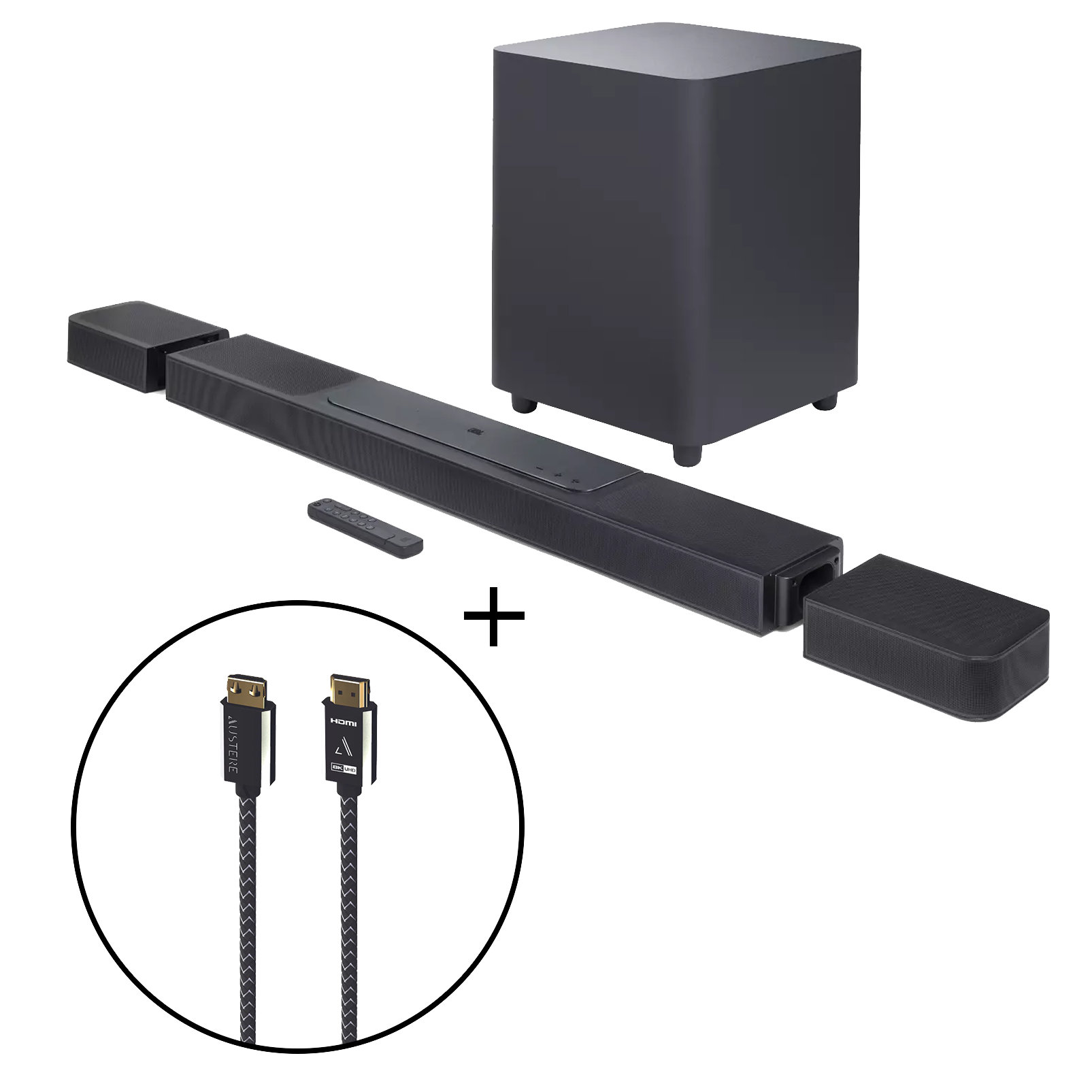

SoundbarsJBL Bar 1300X + Austere VII Series 8K HDMI Cable 1.5m
$1,614.95
Availability:
1000 in stock
General Specifications
- Sound system
- 11.1.4 channel
- Power supply
- 100 – 240V AC, ~ 50/60Hz
- Networked standby power
- < 2.0W
- Operating temperature
- 0°C – 45°C
Audio Specifications
- Total speaker power output (Max @THD 1%)
- 1170W
- Soundbar output power (Max @THD 1%)
- 650W
- Surround speaker output power (Max @THD 1%)
- 2x 110W
- Subwoofer output power (Max. @THD 1%)
- 300 W
- Soundbar transducer
- 6x (46×90)mm racetrack drivers, 5x 0.75 (20mm) tweeters, 4x 2.75 (70mm) up-firing full-range drivers
- Surround speaker transducer
- (46×90)mm racetrack driver, 0.75 (20mm) tweeter, 2.75 (70mm) up-firing full-range driver, 2x (48×69)mm rounded rectangle Passive Radiators
- Subwoofer transducer
- 12” (311mm)
- Frequency response
- 33Hz – 20kHz (-6dB)
- Audio inputs
- 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Total soundbar dimensions (W x H x D)
- 1376 x 60 x 139 mm / 54.2 x 2.4 x 5.5
- Main soundbar dimensions (W x H x D)
- 1000 x 60 x 139 mm / 39.4 x 2.4 x 5.5
- Detachable surround speaker dimensions (each) (W x H x D)
- 202 x 60 x 139 mm / 8 x 2.4 x 5.5
- Subwoofer dimensions (W x H x D)
- 366 x 481 x 366 mm / 14.4 x 18.9 x 14.4
- Soundbar weight
- 4.3kg / 9.5 lbs
- Detachable surround speaker weight (each)
- 1.25 kg / 2.75 lbs
- Subwoofer weight
- 15.65 kg / 34.5 lbs
- Packaging dimensions (W x H x D)
- 450 x 1135 x 549 mm/ 17.7 x 44.7 x 21.6
- Packaging Weight
- 27kg / 59.50 lbs
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file format
- MP3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 – 48 kHz
- MP3 bitrate
- 80 – 320 kpbs
- Bluetooth version
- Main bar – 5.0, Detachable surround speaker – 5.2
- Bluetooth profile
- Main bar – A2DP 1.2 and AVRCP 1.5, Detachable surround speaker – A2DP 1.3 and AVRCP 1.6
- Bluetooth transmitter frequency range
- 2400MHz – 2483.5MHz
- Bluetooth transmitter power
- <15dBm (EIRP)
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
- 2.4G Wi-Fi transmitter power
- < 20dBm (EIRP)
- 5G Wi-Fi transmitter frequency range
- 5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz
- 5G Wi-Fi transmitter power
- 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
- 2.4G wireless frequency range
- 2406 – 2474MHz
- 2.4G wireless power
- ＜10dBm (EIRP）
Battery
- Lithium battery
- 3.635V, 6600 mAh
- Detachable surround speaker playtime
- up to 12 Hours (may vary according to content type and volume level)
Video Specifications
- HDMI video input
- 3
- HDMI video output (with Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP version
- 2.3
- HDR pass through
- HDR10, Dolby Vision
