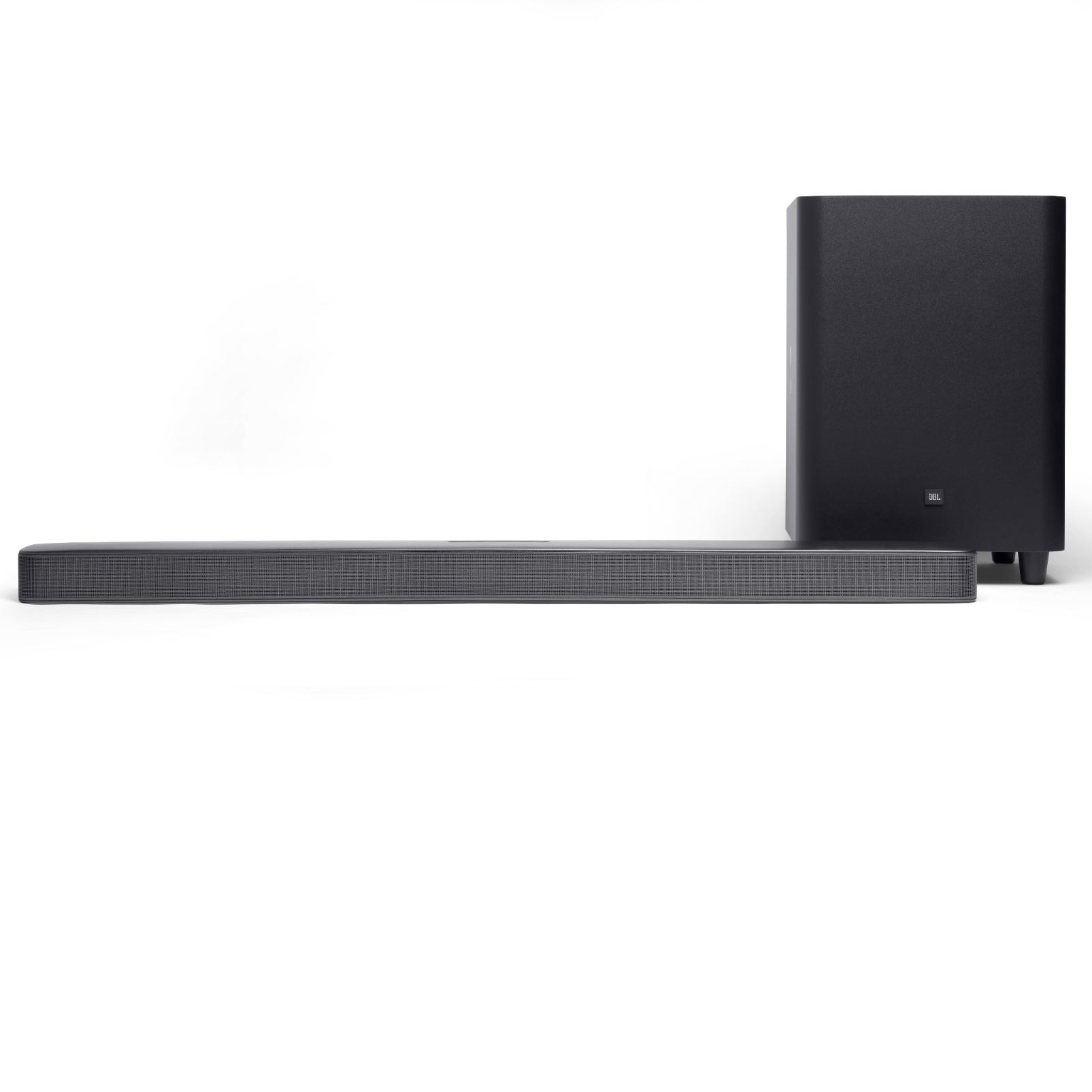

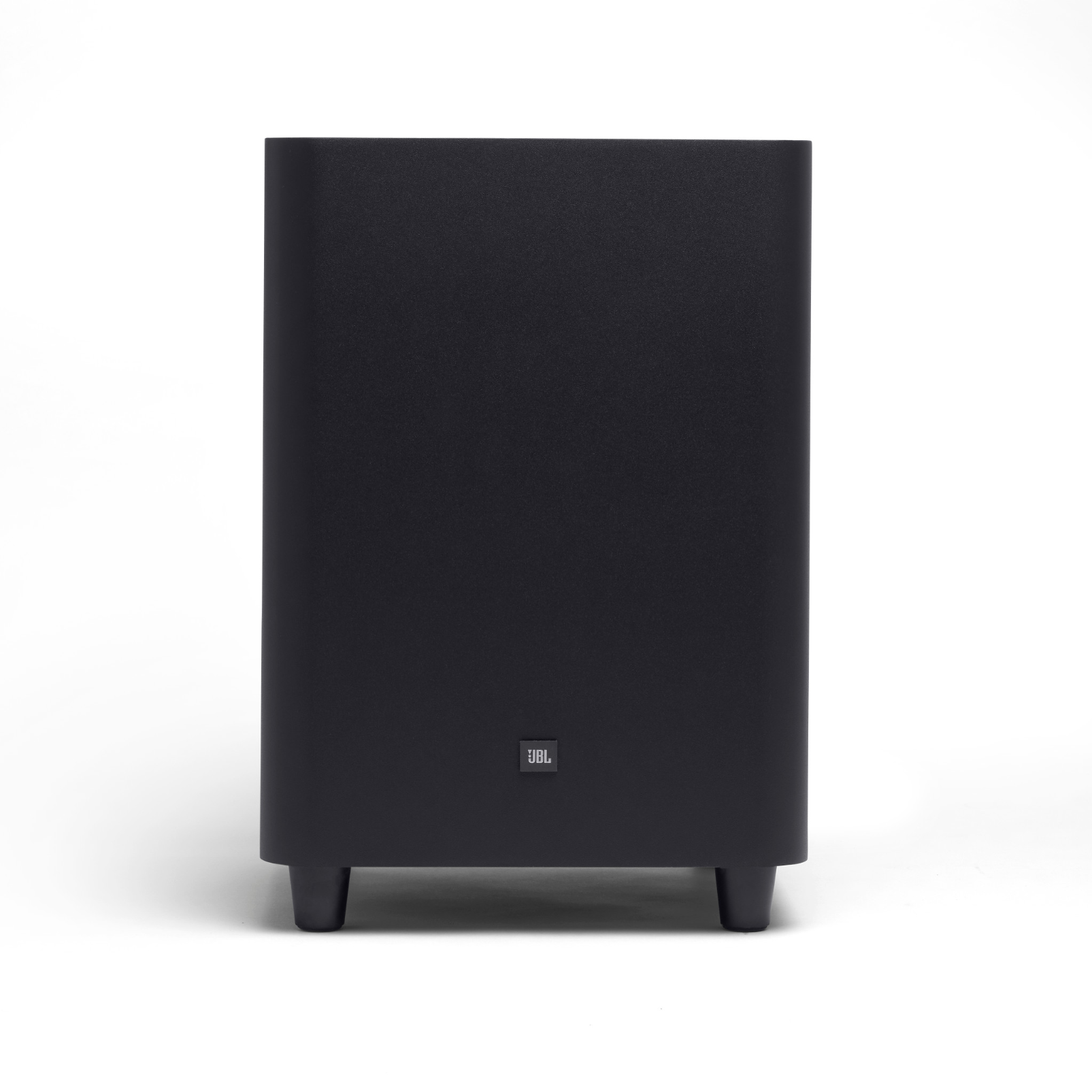

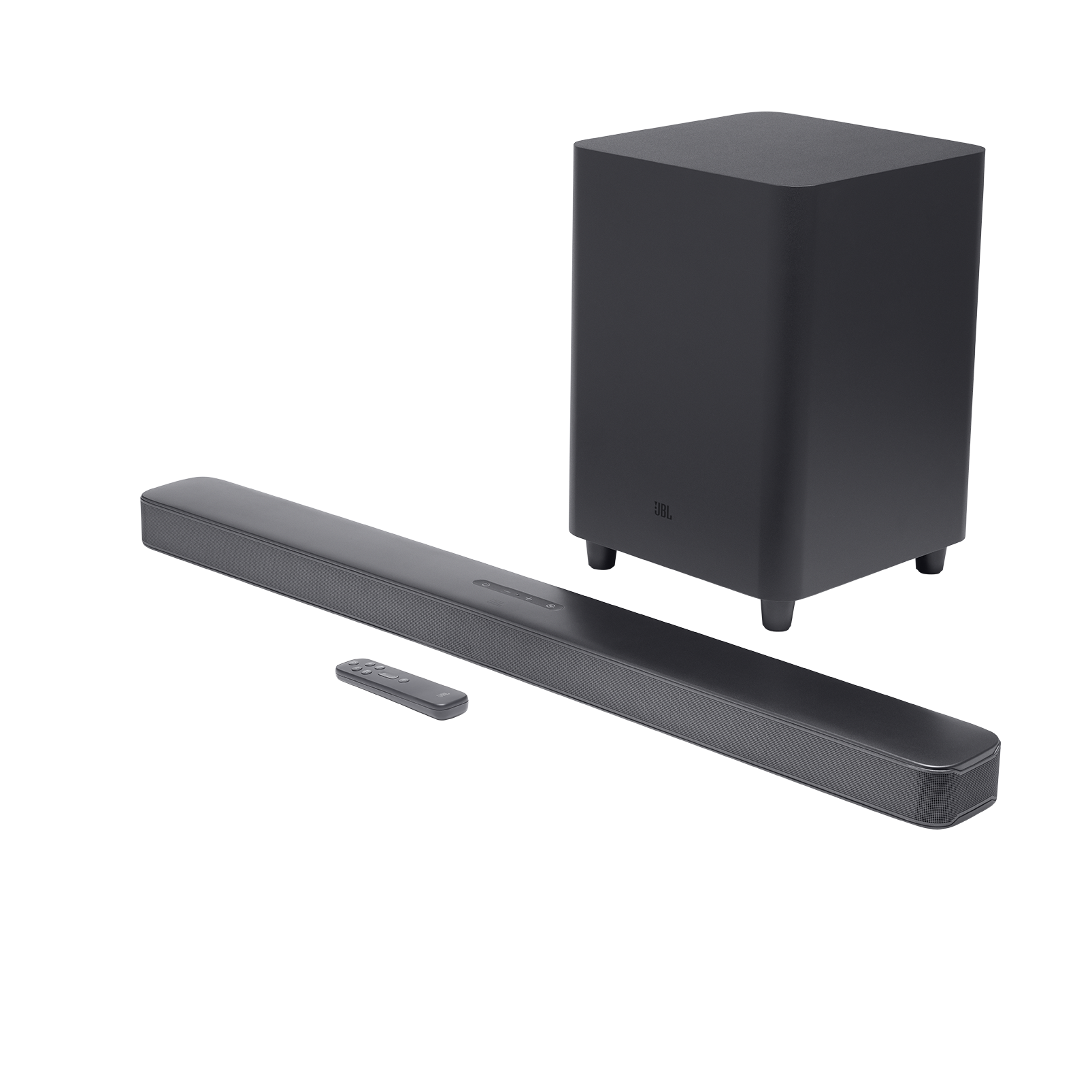

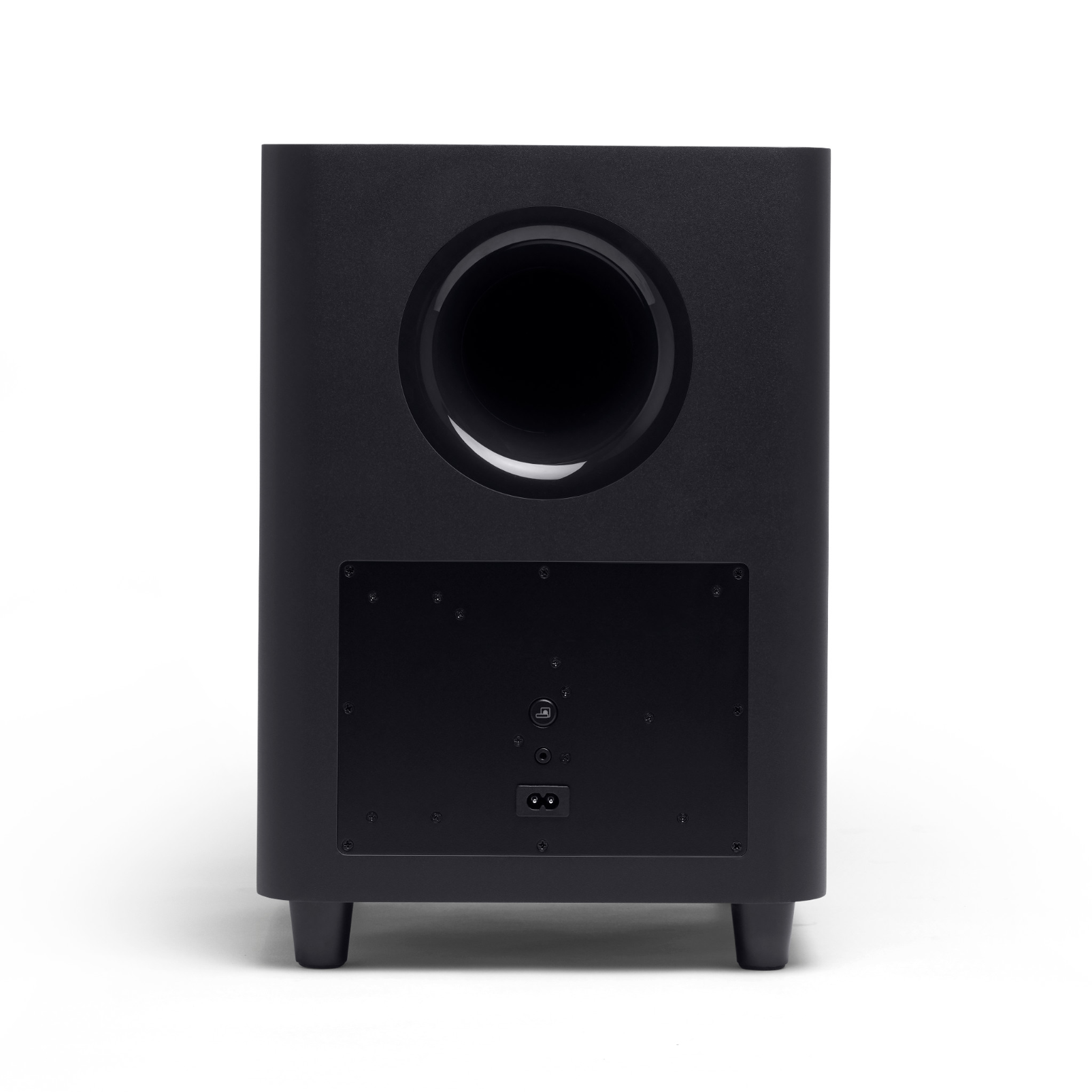

Bar 5.1 CNTR (Soundbar Unit), BAR 5.1 SUB (Subwoofer Unit)
Power supply
100 – 240V AC, ~ 50/60Hz
Soundbar output power (Max. @THD 1%)
5 x 50W
Subwoofer output power (Max. @THD 1%)
300W
standby power
<0.5W
networked standby power
<2.0W
Operating temperature
0°C – 45°C
BAR 5.1 SURROUND is in compliance with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013.
Off Mode
N/A
Network Standby
<2.0W
Time to standby
<20minutes
* Standby
in the condition of all wireless connections of Soundbar are deactivated, if no provide any audio or video signal to the Soundbar unit, the Soundbar unit will automatically into standby mode in 10 minutes.
* Networked standby
in the condition of any wireless connection of Soundbar is activated, if no provide any audio or video signal to the Soundbar unit, the Subwoofer and Soundbar unit will automatically into networked standby mode in 10 minutes.
Any audio or video recover will bring device from standby to operation mode.
Audio Specifications
Total speaker power output (Max. @THD 1%)
550W
Max SPL
103dB
Frequency response
40Hz – 20KHz

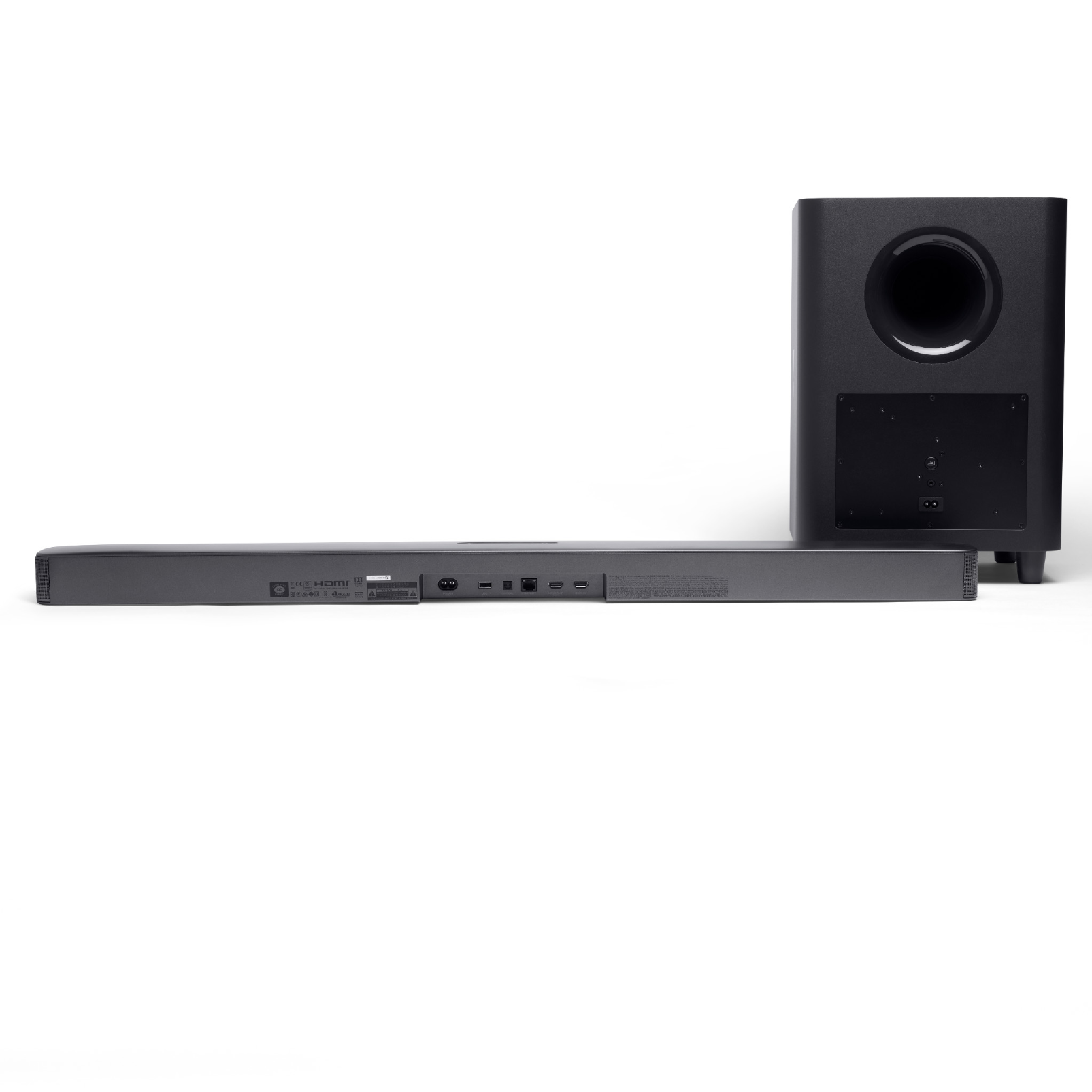

Audio inputs
1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
