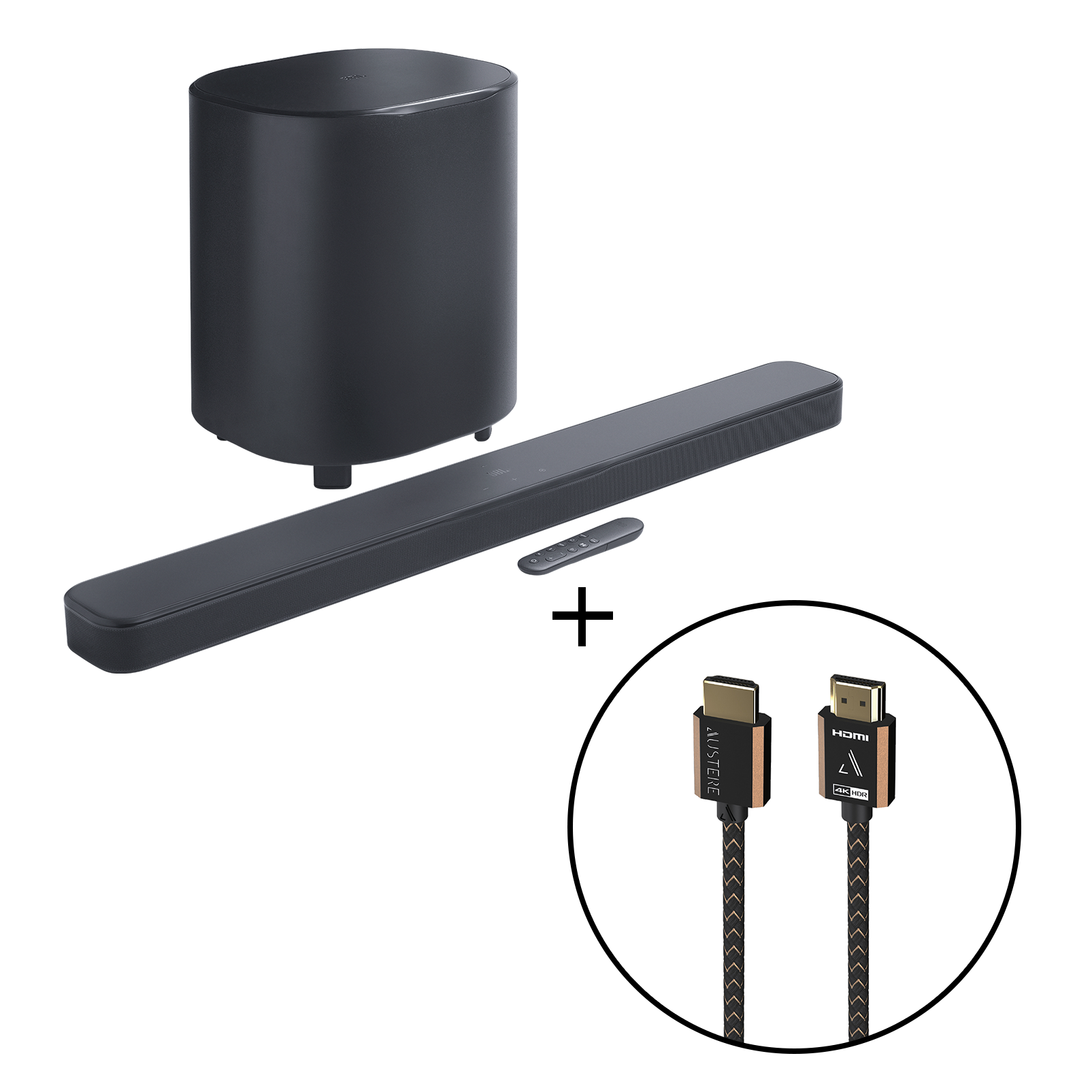

Browse AllJBL Bar 500MK2 + Austere III Series 4K HDMI Cable 1.5m
$531.94
Availability:
1000 in stock
General Specifications
- Model
- BAR 500MK2 (soundbar unit) BAR 500MK2 SUB (subwoofer unit)
- Sound system
- 5.1 channel
- Power supply
- 100 – 240V AC, ~ 50/60Hz
- Total speaker power output* (Max. @THD 1%)
- 750W
- Soundbar output power** (Max. @THD 1%)
- 450W
- Subwoofer output power*** (Max. @THD 1%)
- 300W
- Soundbar transducer
- 5x (42×80)mm racetrack drivers, 4x 0.75 (20mm) tweeters
- Subwoofer transducer
- 10” (260mm)
- Networked standby power
- < 2.0 W
- Operating temperature
- 0°C – 45 °C
Audio Specifications
- Frequency response
- 40Hz – 20kHz (-6dB)
- Audio inputs
- Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Main soundbar dimensions (W x H x D)
- 940 x 50.5 x 104 mm / 37 x 2.0 x 4.1
- Subwoofer dimensions (W x H x D)
- 325 x 400 x 325 mm / 12.8 x 15.7 x 12.8
- Soundbar weight
- 2.9kg / 6.5lbs
- Subwoofer weight
- 8.1 kg / 17.8 lbs
- Packaging dimensions (W x H x D)
- 1020 x 395 x 490 mm / 40.2 x 15.6 x 19.3
- Packaging Weight
- 18.0kg / 39.7lbs (EMEA/UK/AU/NZ) 15.9kg / 34.9lbs (Others)
- * RMS @THD 1%
* RMS @THD 1% 225W *** RMS @THD 1%
- 375W ** RMS @THD 1%
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file formats
- mp3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 – 48 kHz
- MP3 bitrate
- 80 – 320 kbps
- Bluetooth version
- v5.3
- Bluetooth profile
- A2DP v1.3, AVRCP v1.5
- Bluetooth transmitter frequency range
- 2400 MHz – 2483.5 MHz
- Bluetooth transmitter power
- <15 dBm (EIRP)
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 – 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi transmitter power
- < 20 dBm (EIRP)
- 5G Wi-Fi transmitter frequency range
- 5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz
- 5G Wi-Fi transmitter power
- 5.15 – 5.25GHz <23dBm, 5.25 – 5.35GHz & 5.470 – 5.725GHz <20dBm, 5.725 – 5.825GHz <14dBm (EIRP)
- 2.4G wireless transmitter frequency range
- 2406 – 2474MHz
- 2.4G wireless transmitter power
- <10dBm (EIRP)
- Note
- Band 5.6 – 5.64 GHz will be disabled when shipped to Australia / New Zealand.
Video Specifications
- HDMI video input
- 1
- HDMI video output (with Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP version
- 2.3
- HDR pass through
- HDR10+, Dolby Vision
