JBL Bar 700MK2

General Specifications

Sound system

7.1 channel

Power supply

100 – 240V AC, ~ 50/60Hz

Total speaker power output* (Max. @THD 1%)

780W

Soundbar output power** (Max. @THD 1%)

400W

Surround speaker output power*** (Max. @THD 1%)

2x 40W

Subwoofer output power**** (Max. @THD 1%)

300W

* RMS @THD 1%

* RMS @THD 1% 200W *** RMS @THD 1%

390W ** RMS @THD 1%

Soundbar transducer

6x (44×80)mm racetrack drivers, 2x 1 (25mm) tweeters

Surround speaker transducer

2x (44×90)mm racetrack drivers

Subwoofer transducer

10” (260mm)

Networked standby power

< 2.0 W

Operating temperature

0°C – 45 °C

Lithium battery

3.635V, 3283mAh

Detachable surround speaker playtime

up to 10 hours (may vary according to content type and volume level)

Audio Specifications

Frequency response

35Hz – 20kHz (-6dB)

Audio inputs

Optical, Bluetooth, USB (USB playback

is available in US version. For other versions, USB is for Service only.)

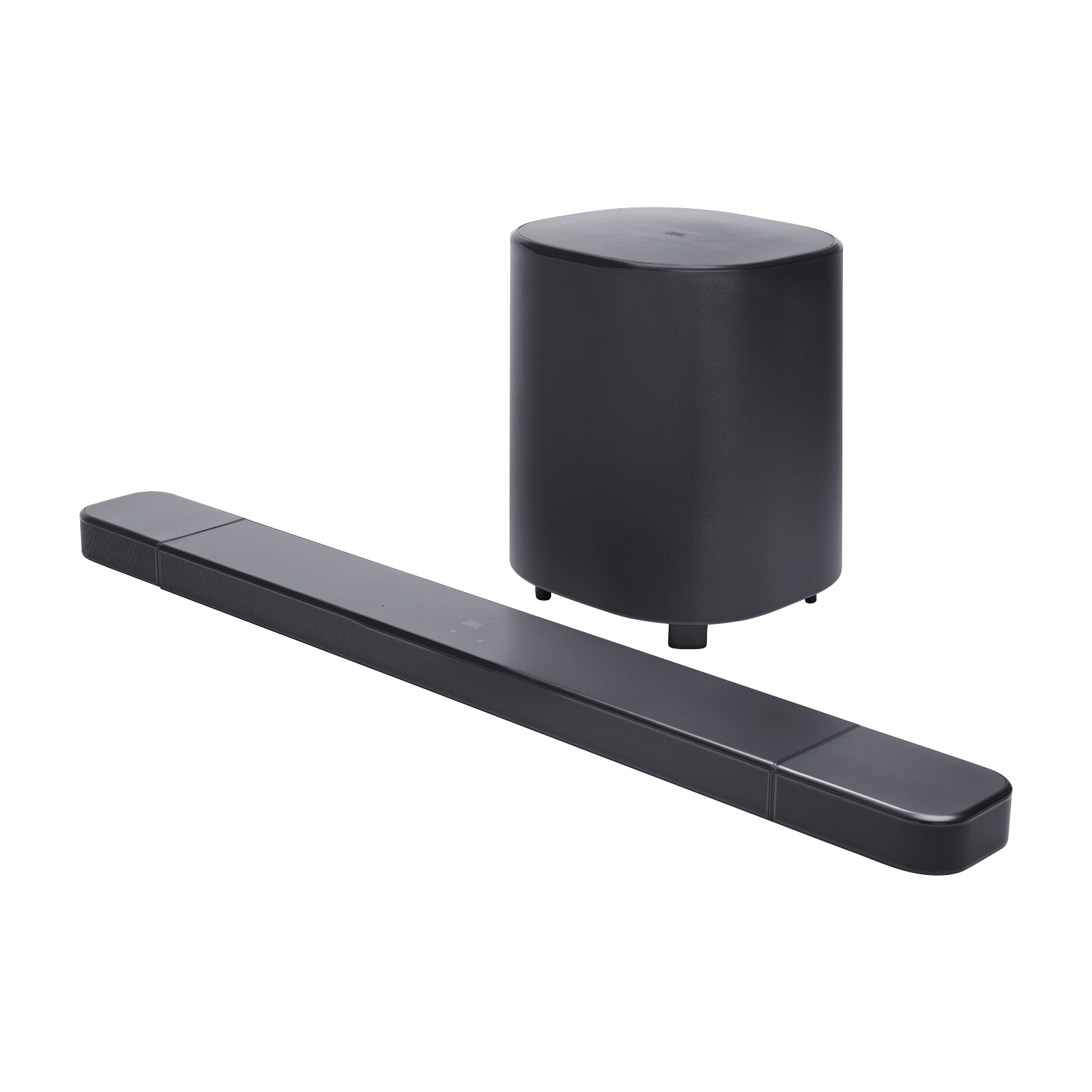

Dimensions

Total soundbar dimensions (W x H x D)

1163 x 52 x 128mm / 45.8 x 2.0 x 5.0

Soundbar dimensions (W x H x D)

854 x 52 x 128mm / 35.6 x 2.0 x 5.0

Detachable surround speaker dimensions (each) (W x H x D)

169 x 52 x 128mm / 6.7 x 2.0 x 5.0

Subwoofer dimensions (W x H x D):

325 x 400 x 325 mm / 12.8 x 15.7 x 12.8

Soundbar weight

5kg / 11lbs

Detachable surround speaker weight (each)

0.7 kg / 1.6 lbs

Subwoofer weight

8.1kg / 17.8 lbs

Packaging dimensions (W x H x D)

980 x 398 x 495 mm / 38.58 x 15.67 x 19.49

Packaging Weight

20.8kg / 45.9lbs (EMEA/UK/AU/NZ); 18.08kg / 41.4lbs (Others)

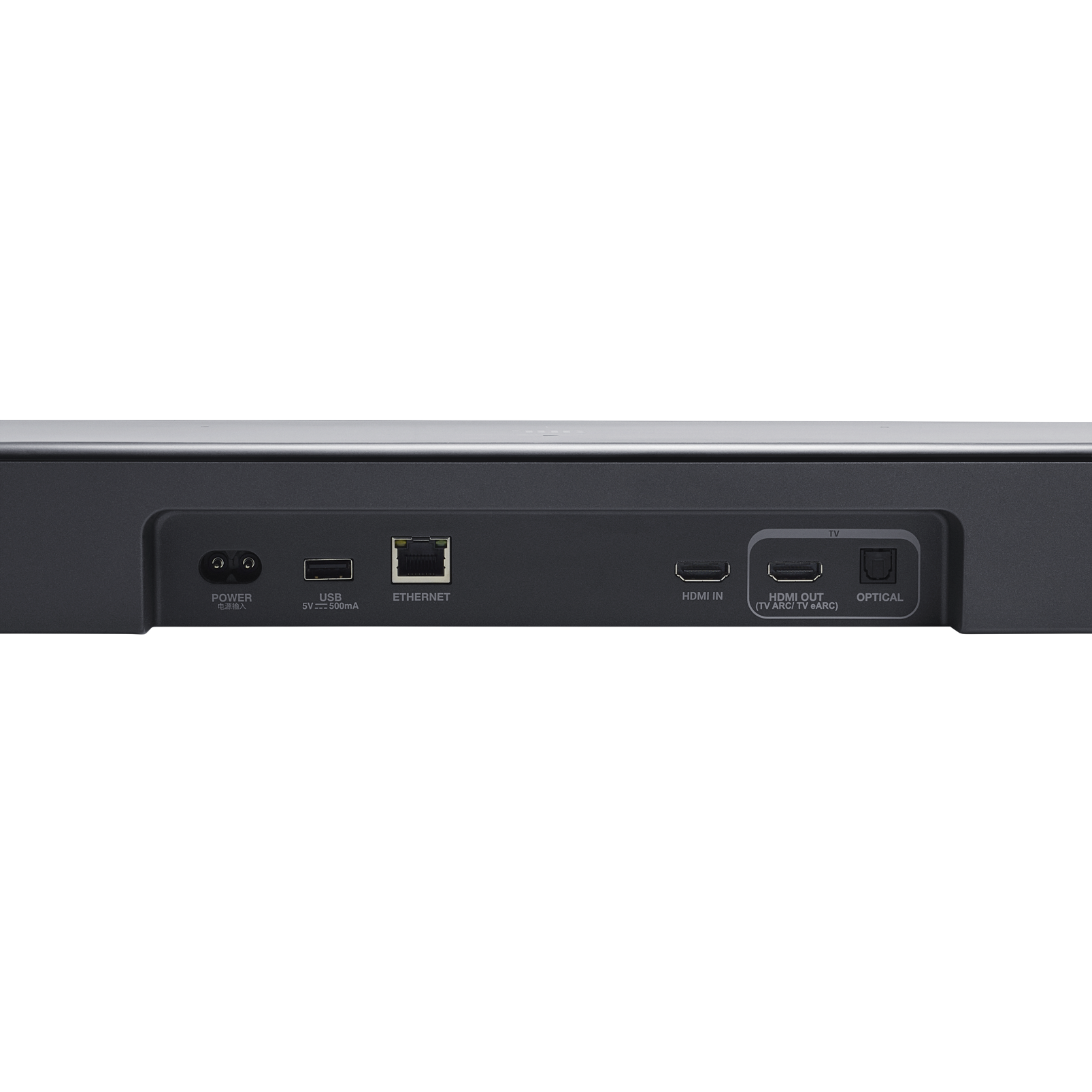

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file formats

mp3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 – 48 kHz

MP3 bitrate

80 – 320 kbps

Bluetooth version

v5.3

Bluetooth profile

A2DP v1.3, AVRCP v1.5

Bluetooth transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth transmitter power

<15 dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 – 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power

< 20 dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz

5G Wi-Fi transmitter power

5.15 – 5.25GHz <23dBm,

5.25 – 5.35GHz & 5.470 – 5.725GHz <20dBm, 5.725 – 5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range

2406 – 2474MHz

2.4G wireless transmitter power

<10dBm (EIRP)

Note

Band 5.6 – 5.64 GHz will be disabled when shipped to Australia / New Zealand.

Video Specifications

HDMI video input

1

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10+, Dolby Vision
