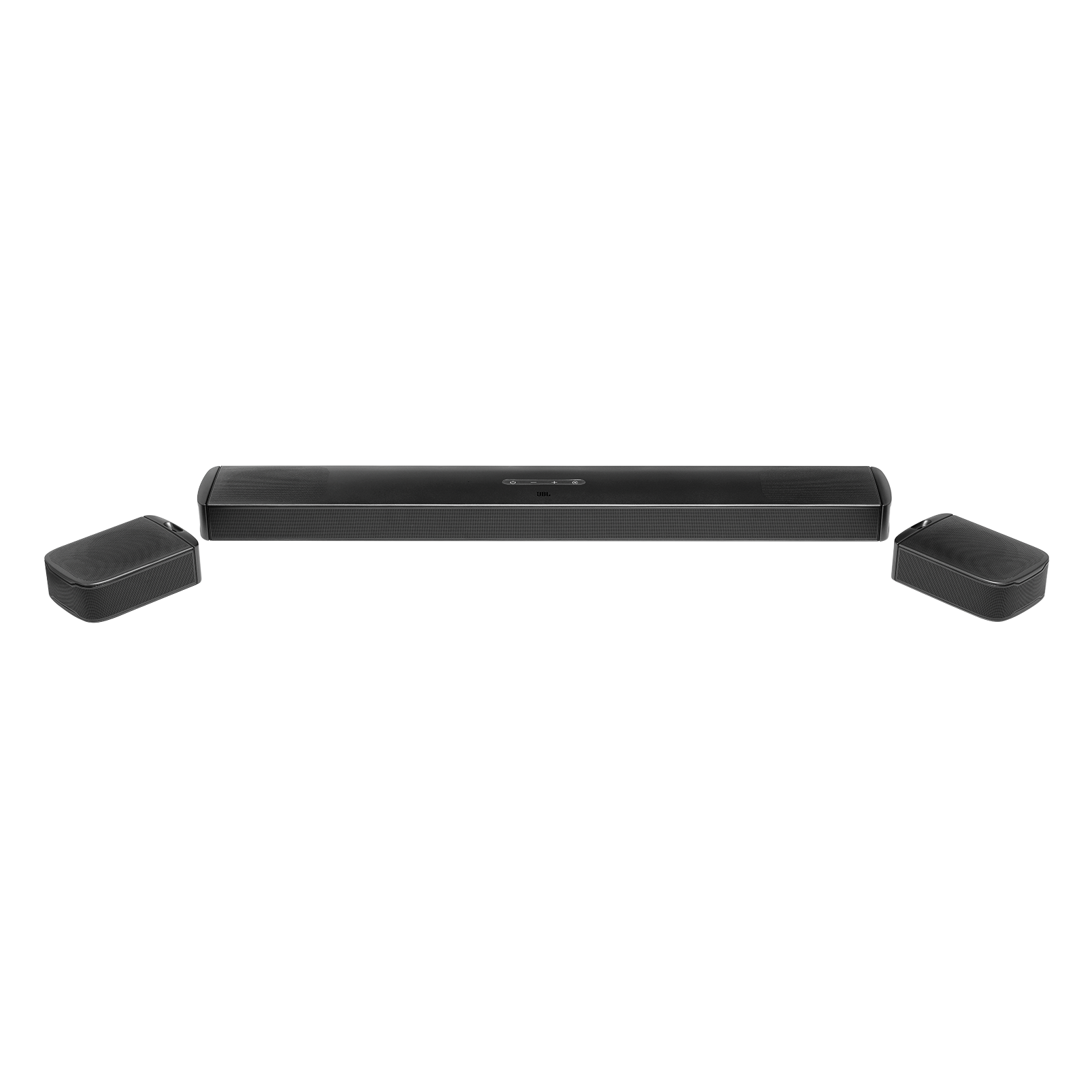

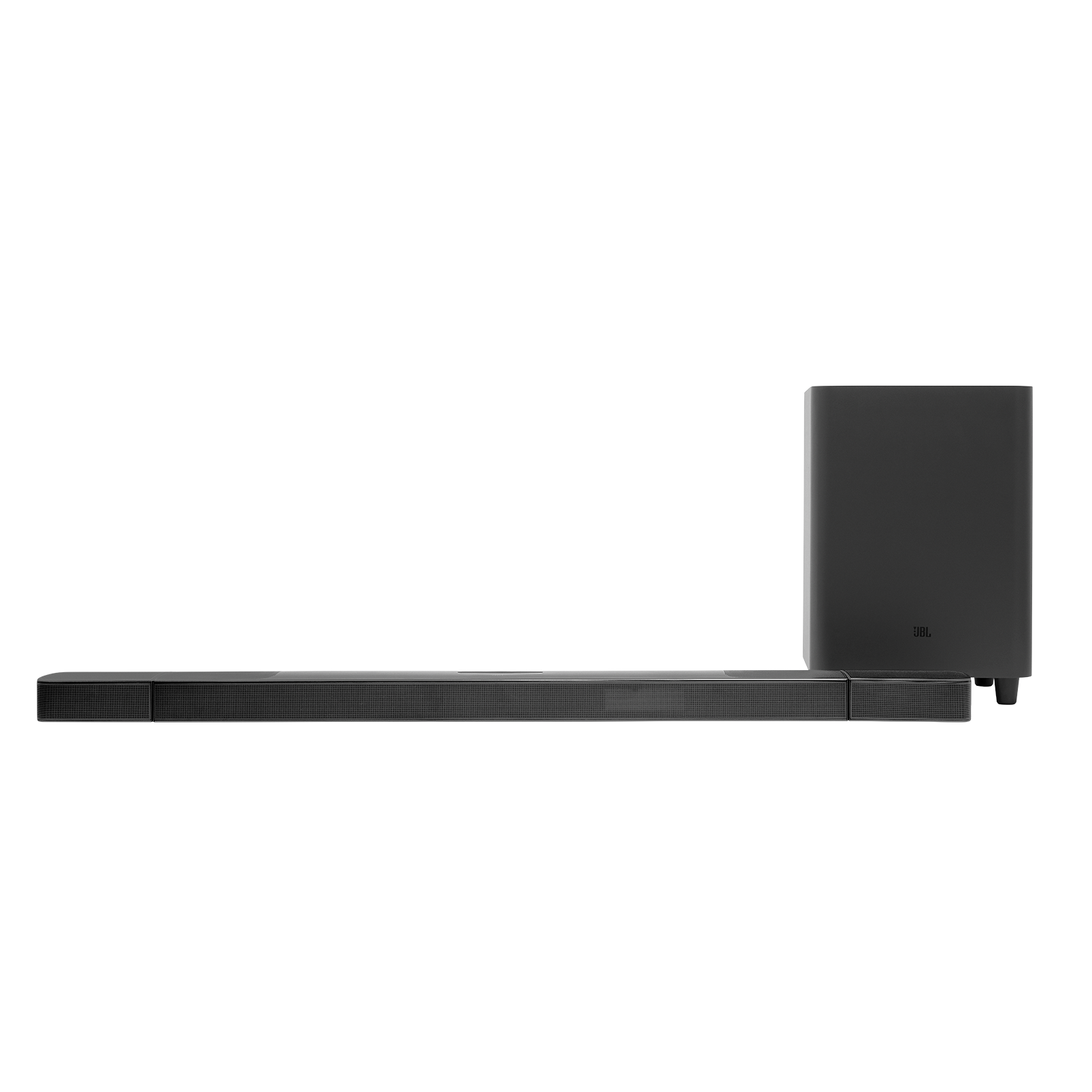

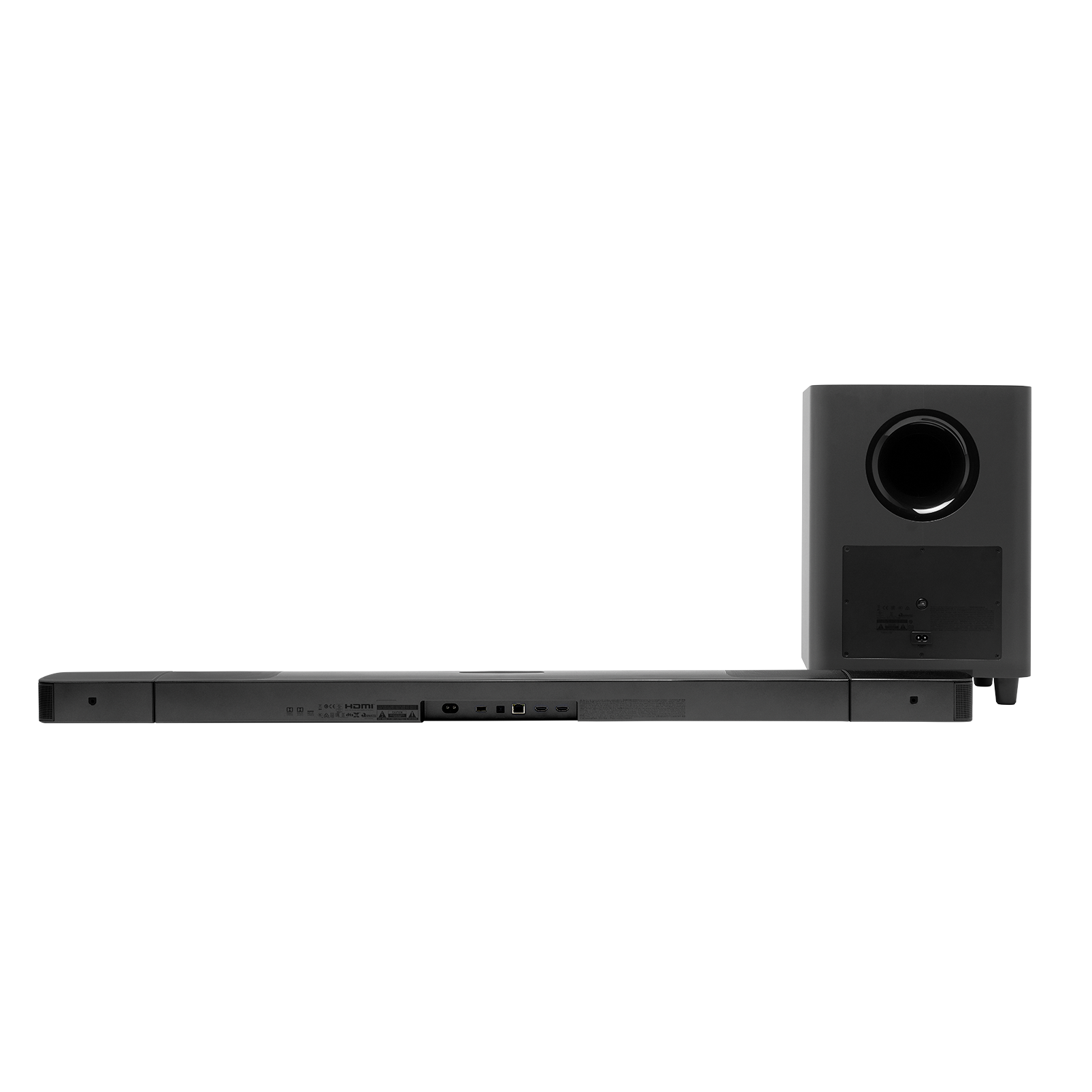

Browse AllJBL BAR 9.1 True Wireless Surround with Dolby Atmos®
$134.99
Availability:
1000 in stock
General Specifications
- Power supply
- 100 – 240VAC, ~ 50/60Hz
- Battery charge time
- 3 hours
- Total speaker power output (Max. @THD 1%)
- 820 W
- Main Soundbar output power (Max. @THD 1%)
- 400
- Surround speakers output power (Max. @THD 1%)
- 2 x 60W
- Subwoofer output power (Max. @THD 1%)
- 300
- Soundbar transducer
- 4×racetrack drivers + 2 × up-firing full-range drivers+3 × 0.75” (20mm) tweeter
- Surround transducer (per piece)
- Up-firing full-range driver + 0.75” (20mm) tweeter

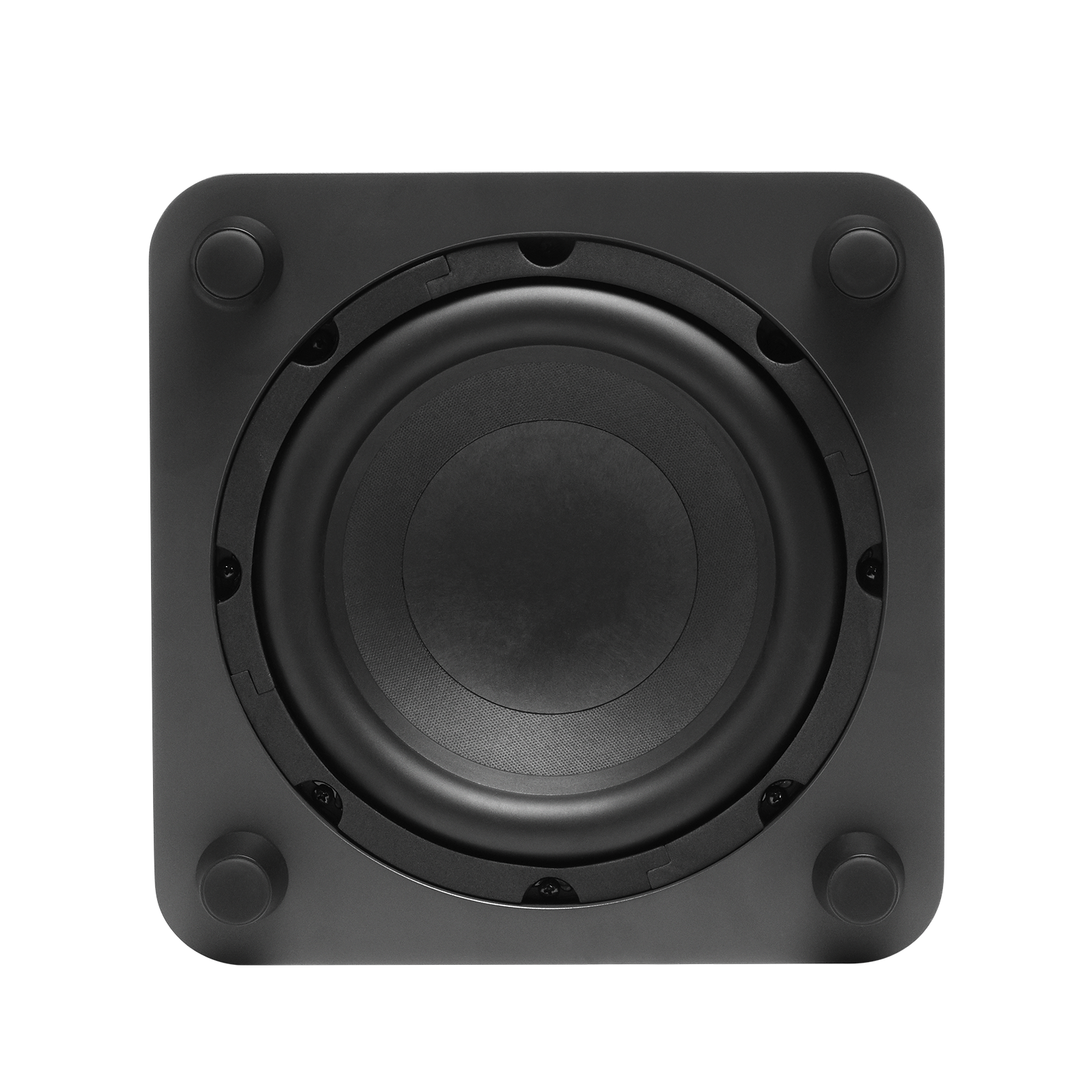

- Subwoofer transducer
- 10
- Operating temperature
- 0°C – 45°C
- Standby for Soundbar (when all wireless connections are deactivated)
- < 0.5 W
- Networked standby (Soundbar)
- < 6.0 W
- Networked standby (Subwoofer)
- < 2.0 W
- Time to standby
- <10 minutes
Audio Specifications
- HDMI In
- 1
- HDMI eARC
- 1
- HDMI HDCP version
- 2.3
- Connections
- 1 Optical, Bluetooth, Chromecast, AirPlay2, USB
Dimensions

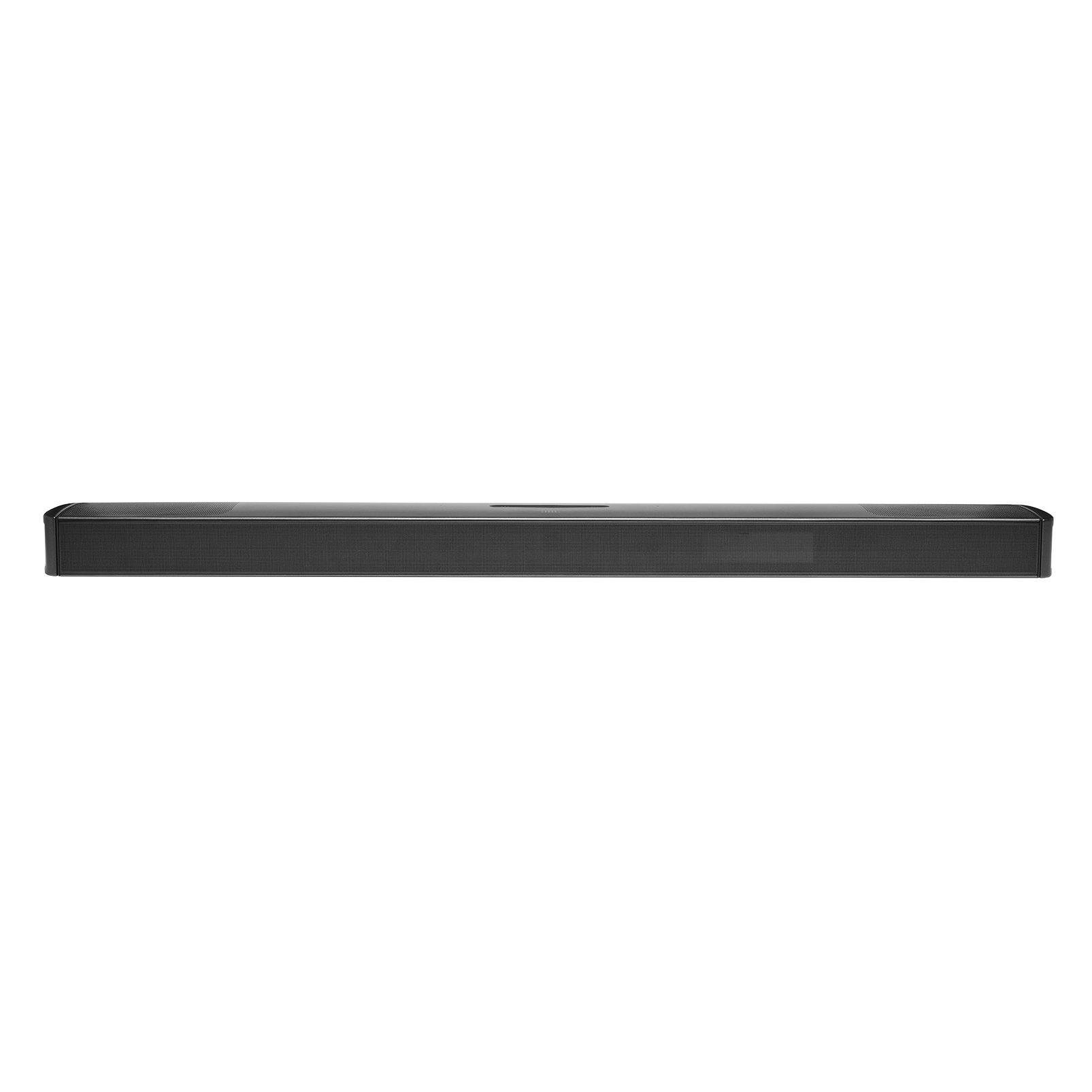

- Soundbar dimensions (WxHxD)
- 884 x 62 x 120 (mm), 34.8” x 2.4” x 4.7”

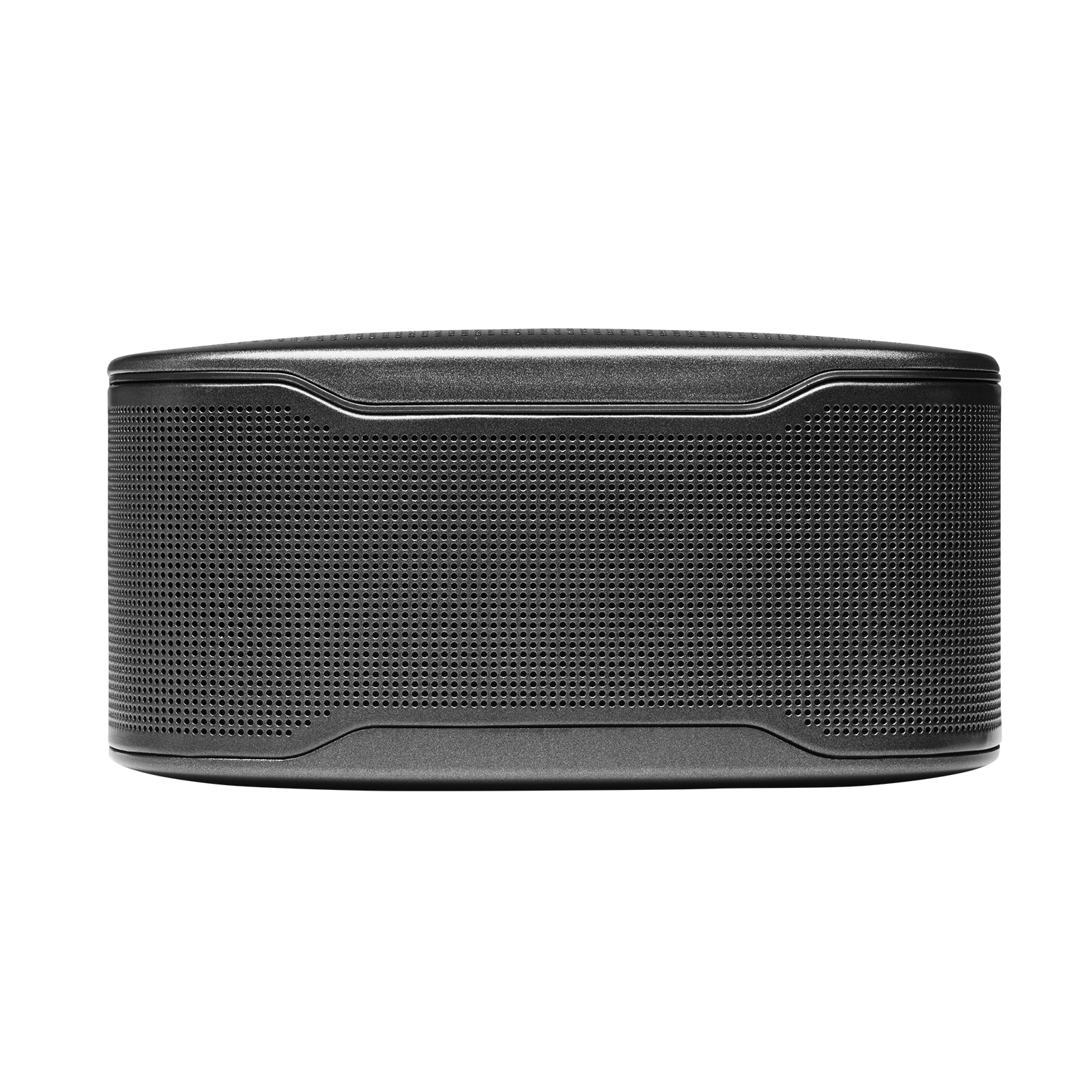

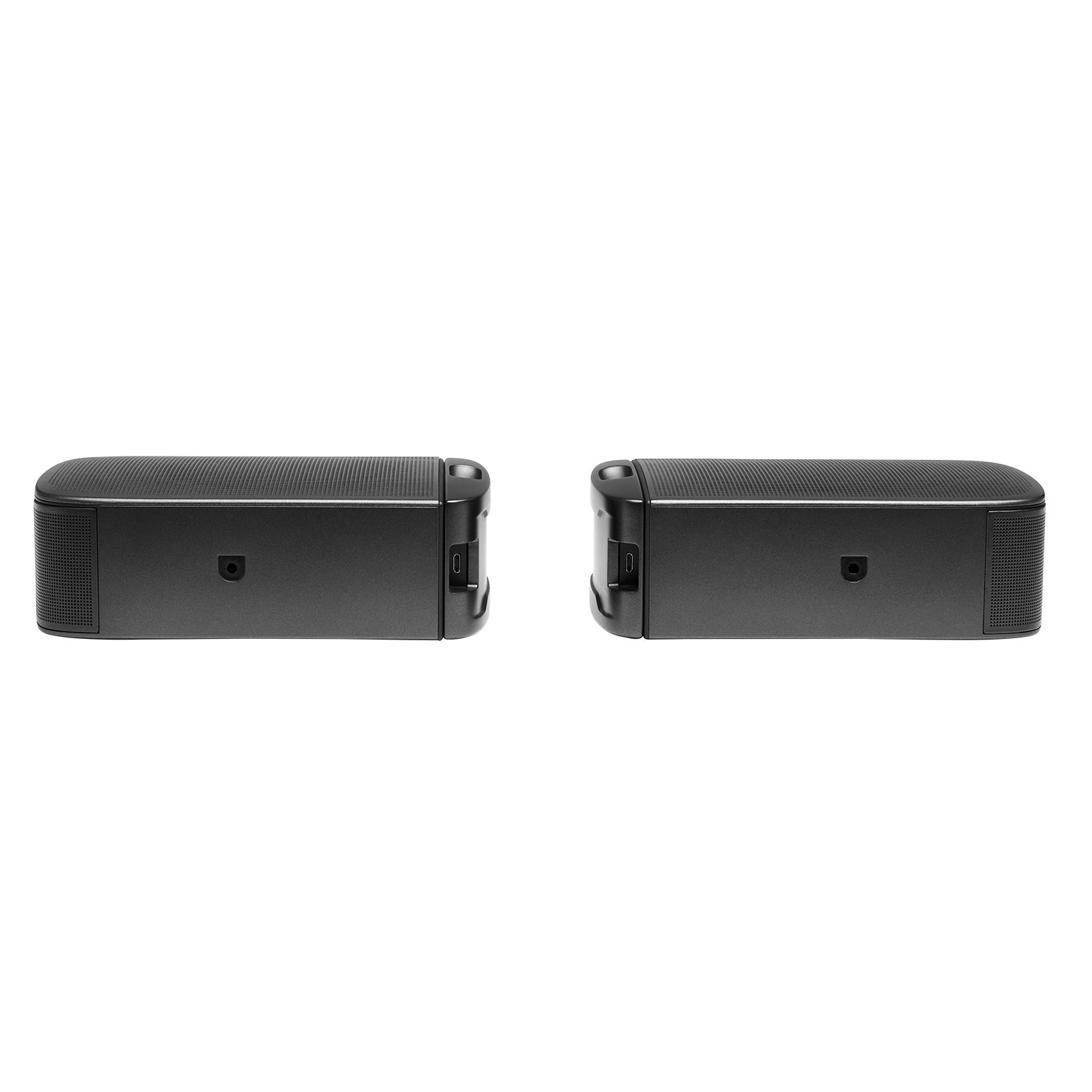

- Detachable surround speaker, per piece
- 173 x 60 x 120 (mm) / 6.8” x 2.4” x 4.7”
- Subwoofer dimensions (WxHxD)
- 305 x 440 x 305(mm) / 12.0 x 17.3 x 12.0
- Soundbar weight
- 3.64 kg/ 8.0 lb
- Detachable surround speaker
- 0.72 kg x 2/ 1.6 lb x2
- Subwoofer weight
- 11.10 kg / 24.5 lb
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5 V/ 500 mA
- Supported file format
- MP3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 KHz – 48 KHz
- MP3 bitrate
- 80 kbps – 320 kbps
- USB Port
- USB playback is available in US version. For other versions, USB is for Service only
- Bluetooth version
- 4.2
- Bluetooth profile
- A2DP V1.2/ AVRCP V1.5
- Bluetooth frequency range
- 2402MHz-2480MHz
- Bluetooth Max. transmitting power
- 13dbm (EIRP)
- Modulation Type
- GFSK, π/4 DQPSK, 8DPSK
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
- 2.4G Wi-Fi frequency range
- 2412 – 2472 MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi Max. transmitting power
- 20 dBm (EIRP)
- Modulation Type
- DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
- 5G Wi-Fi frequency range
- 5.15 – 5.35 GHz, 5.470-5.725 GHz, 5.725 – 5.825 GHz
- 5G Wi-Fi Max. transmitting power
- 22 dBm (EIRP)
- Modulation Type
- QPSK, BPSK, 16QAM, 64QAM, 256QAM
- 5G Wireless frequency range
- 5180.0 – 5240.0MHz (Except Europe), 5725.0 – 5825.0MHz
- 5G Max. transmitting power
- 13 dBm (EIRP)
- Modulation Type
- QPSK
