General Specifications
- Frequency Range (-10 dB)
- 74 Hz – 20 kHz
- Power Capacity (at low-Z)
- 60 Watts Continuous Program Power ; 30 Watts Continuous Pink Noise

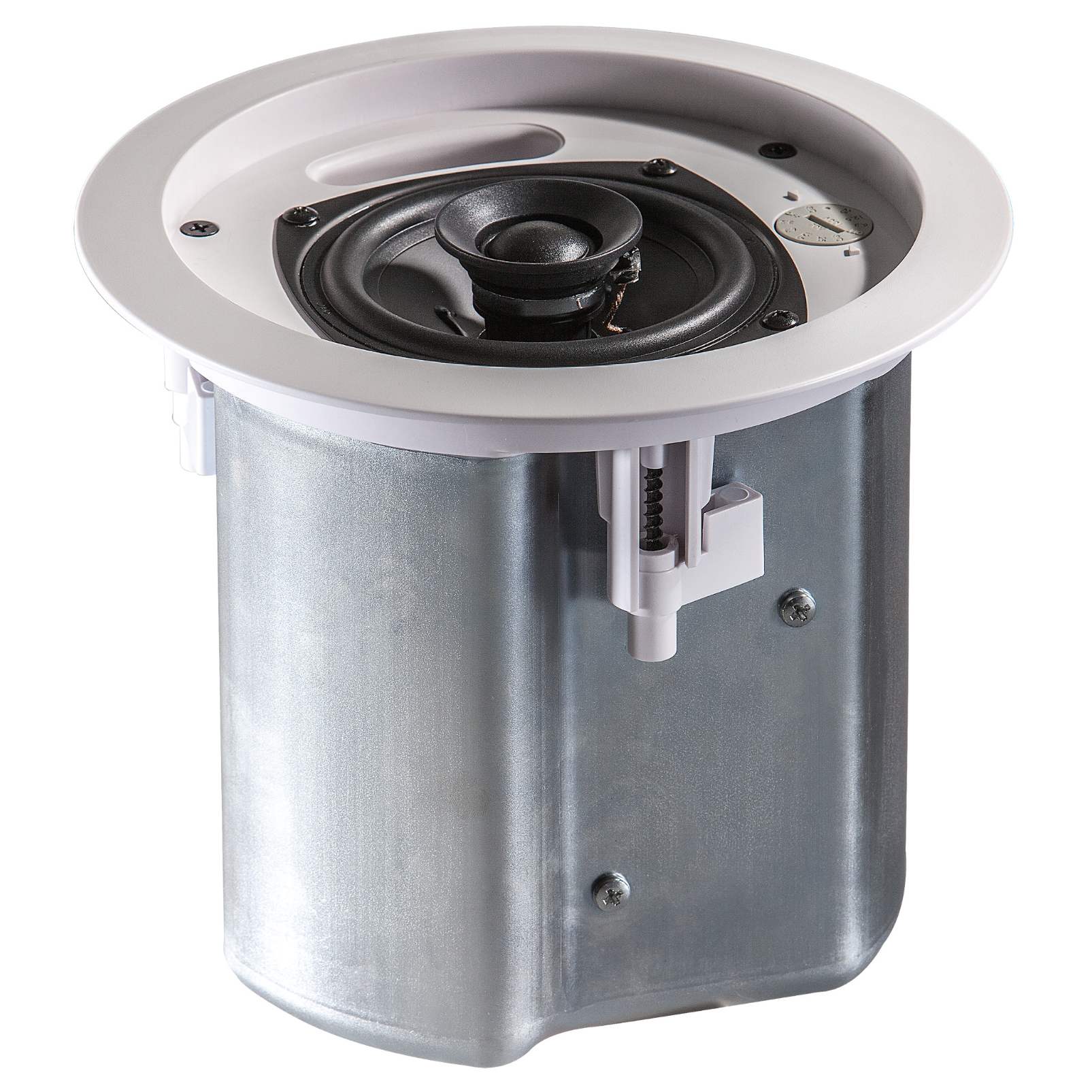

- Transformer Taps

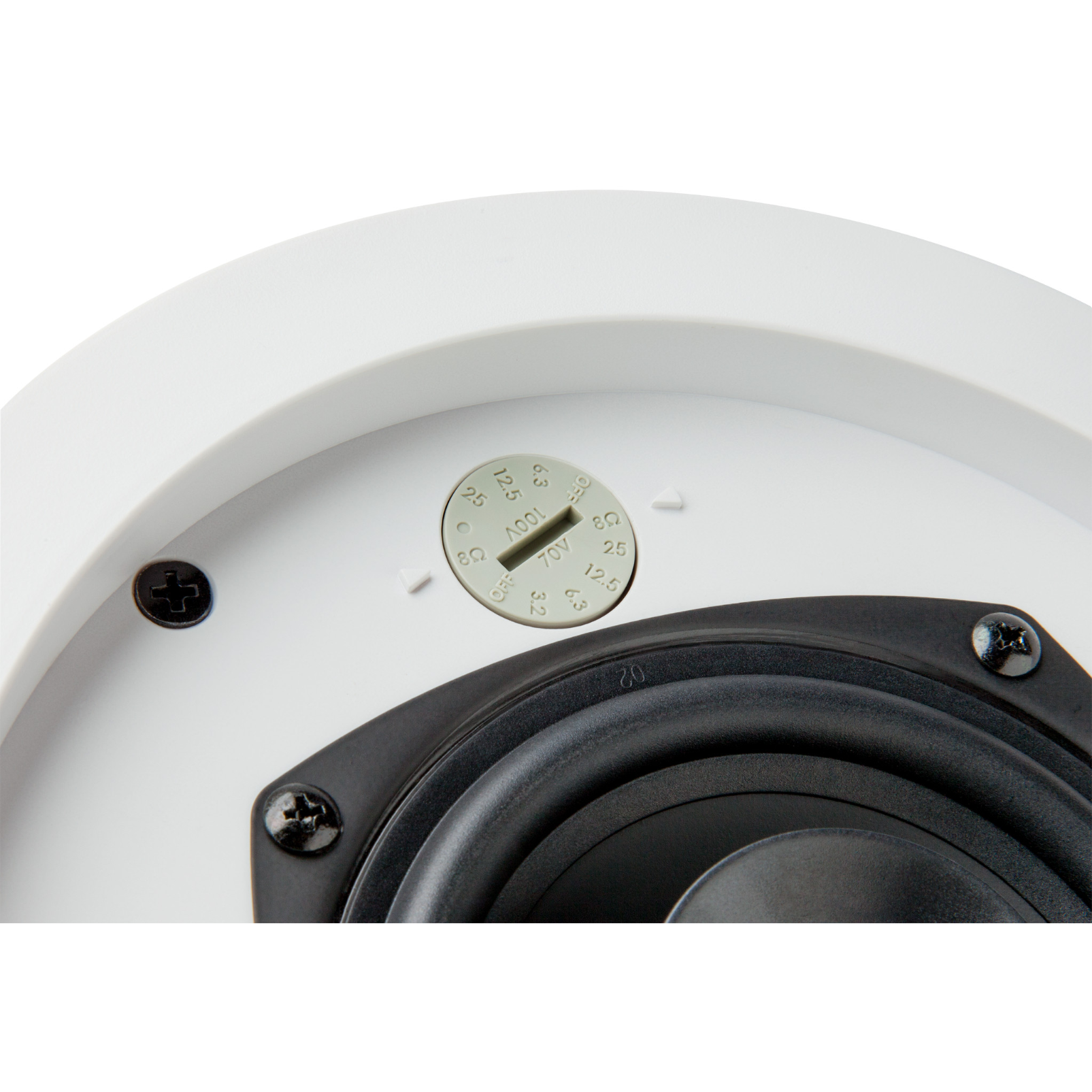

- 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
- Frequency Response (±3 dB)
- 100 Hz – 20 kHz
- Nominal Sensitivity
- 87 dB
- Nominal Coverage Angle
- 120° conical coverage
- Directivity Factor (Q)
- 7.6
- Directivity Index (DI)
- 8.1 dB
- Rated Maximum SPL
- 102 dB @ 1 m (3.3 ft) average, 108 dB peak
- Nominal Impedance
- 8 ohms (in direct/bypass 8Ω setting)
- Crossover Network
- 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

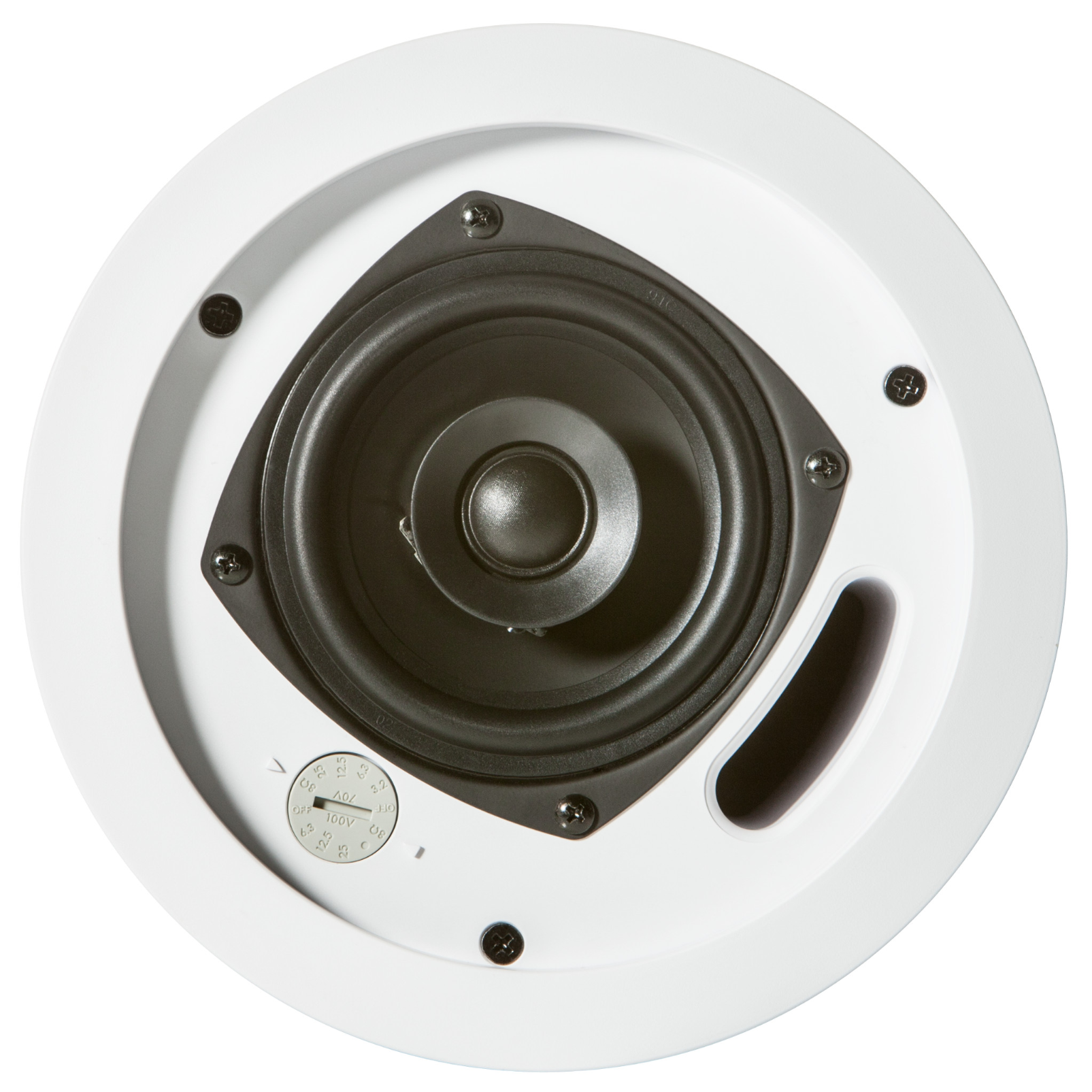

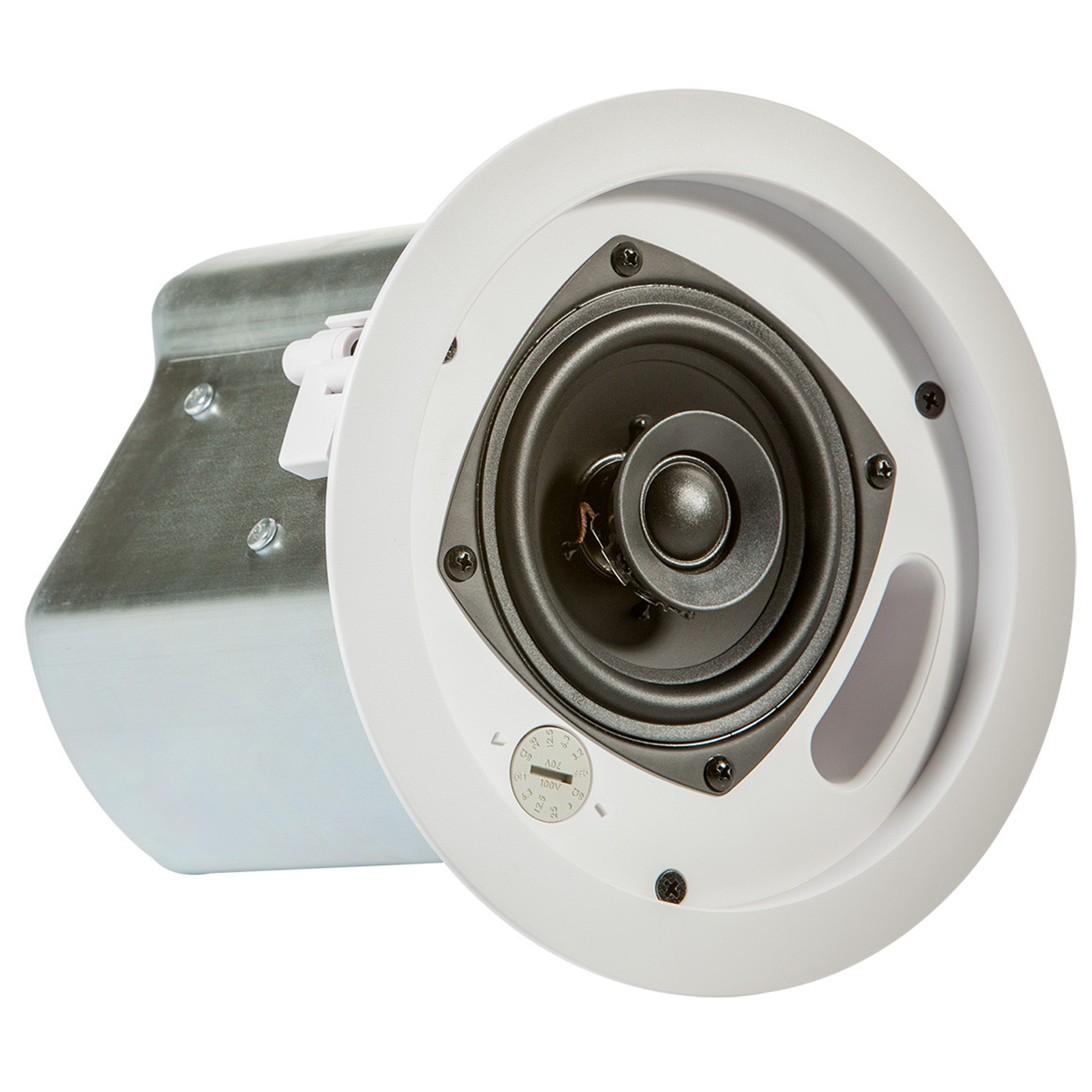

- LF Driver
- 100 mm (4.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
- HF Driver
- 19 mm (3/4 in), highly-damped treated-silk dome, Kapton? voice coil, liquid cooling, wide dispersion waveguide
- Input Connector
- Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
- Connector Wiring

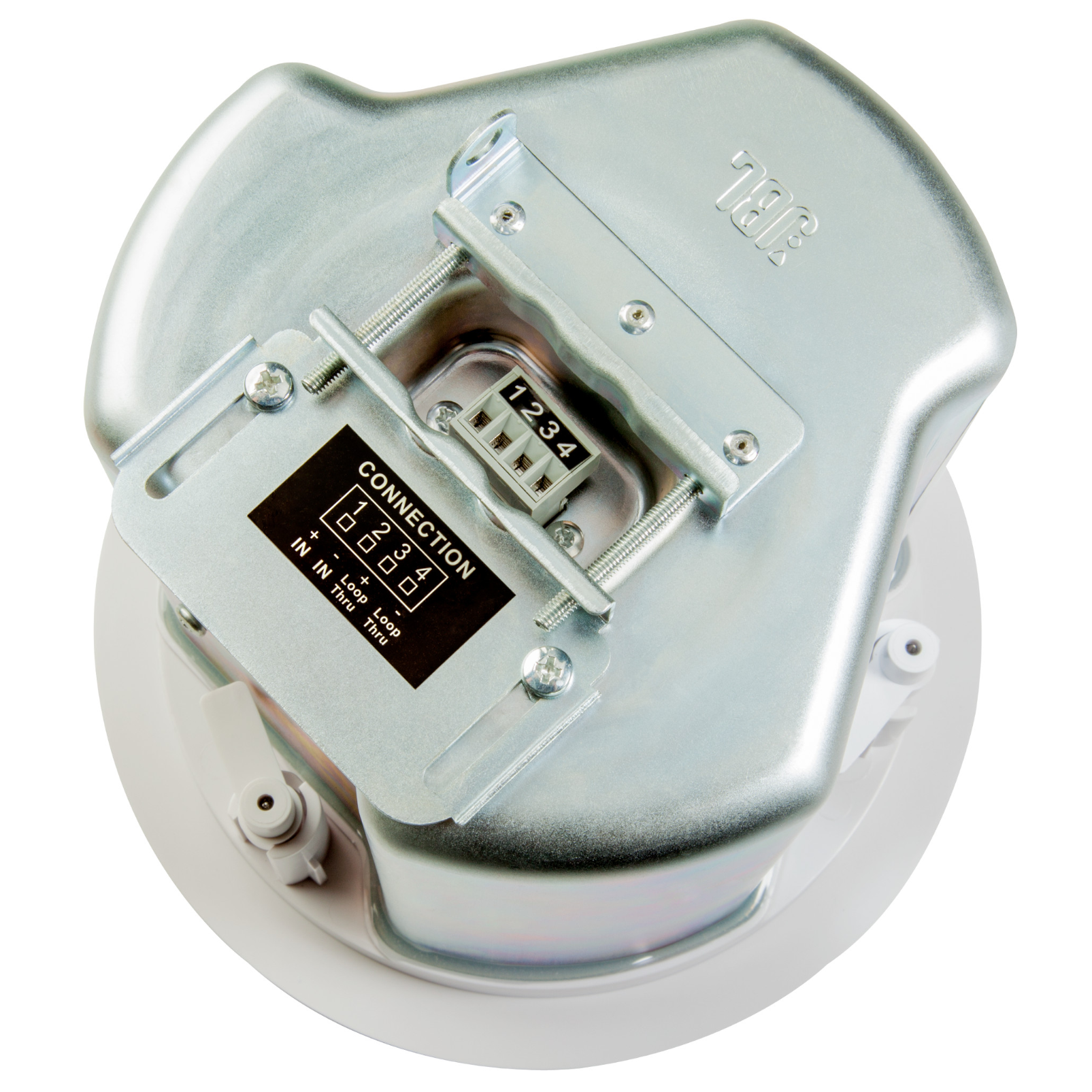

- Pin 1 = + In ; Pin 2 = – In ; Pin 3 = + Loop Thru ; Pin 4 = – Loop Thru
- Strain Reliefs
- Strain relief for two cables or two flex conduits via coupled clamping mechanism
- Materials
- ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
- Safety Agency
- UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
- Safety Seismic Attachment
- One point, top surface
- Included Accessories
- C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
- Optional Accessories
- MTC-24NC new construction bracket ; MTC-24MR mud-ring construction bracket ; MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) ; MTC-48TR tile rail for 1200 mm (4 ft) tile spans
Dimensions
- Diameter
- 196 mm (7.7 in)
- Depth
- 181 mm (7.1 in)
- Ceiling Cutout Size
- Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)

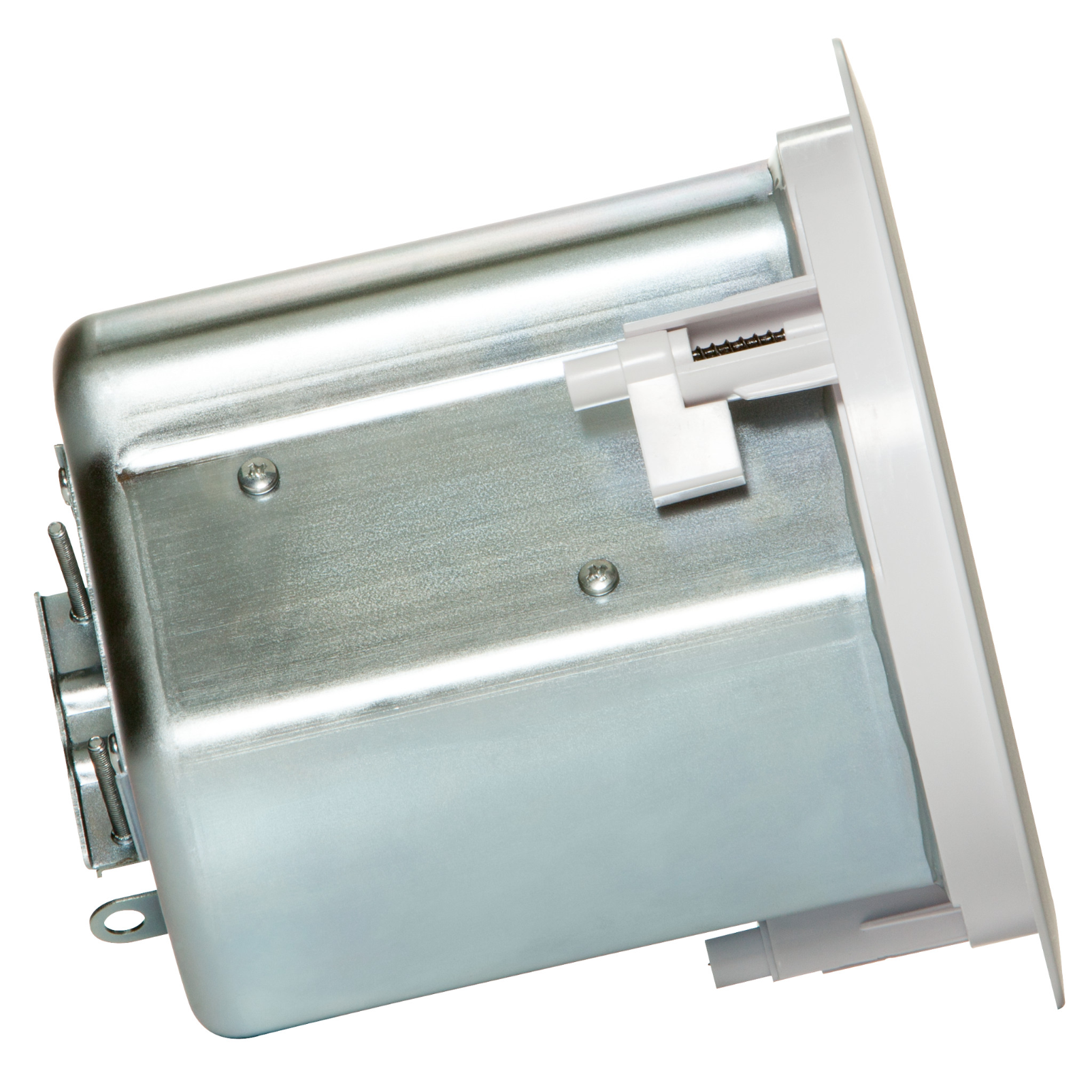

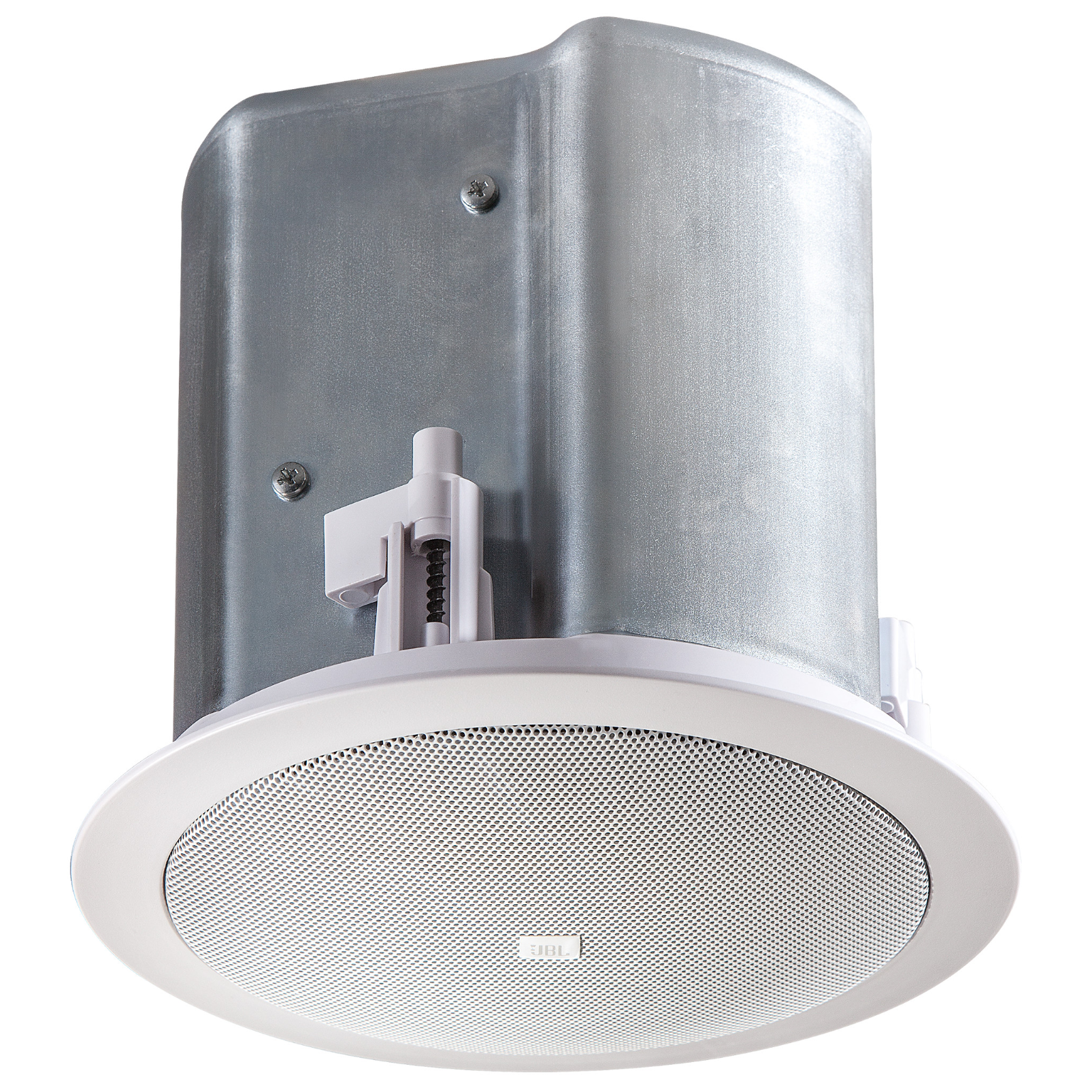

- Ceiling Thickness Range
- Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
- Net Weight
- 2.2 kg (4.8 lbs, one speaker)
- Shipping Weight
- 8.2 kg (17.9 lbs, pair in master carton)
