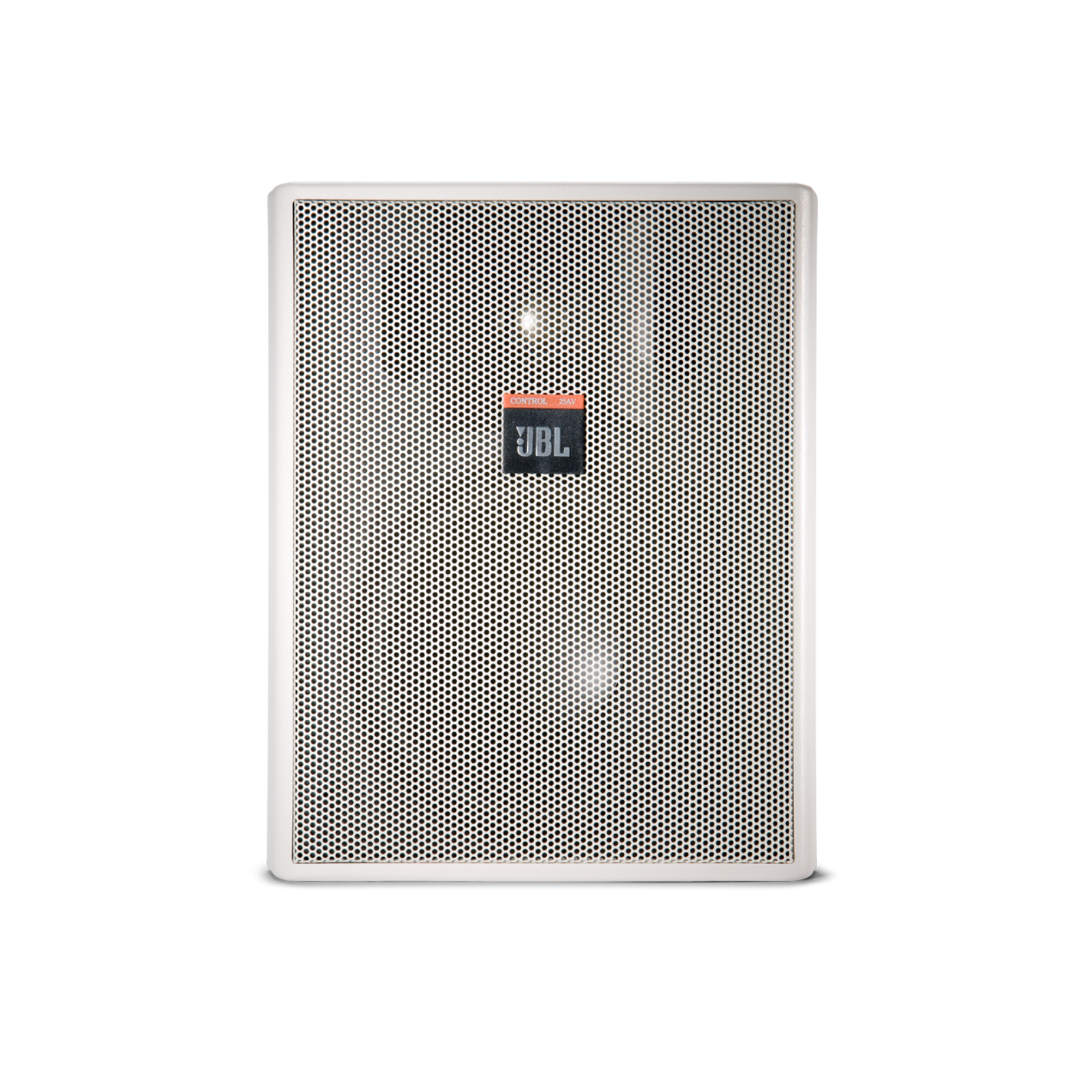

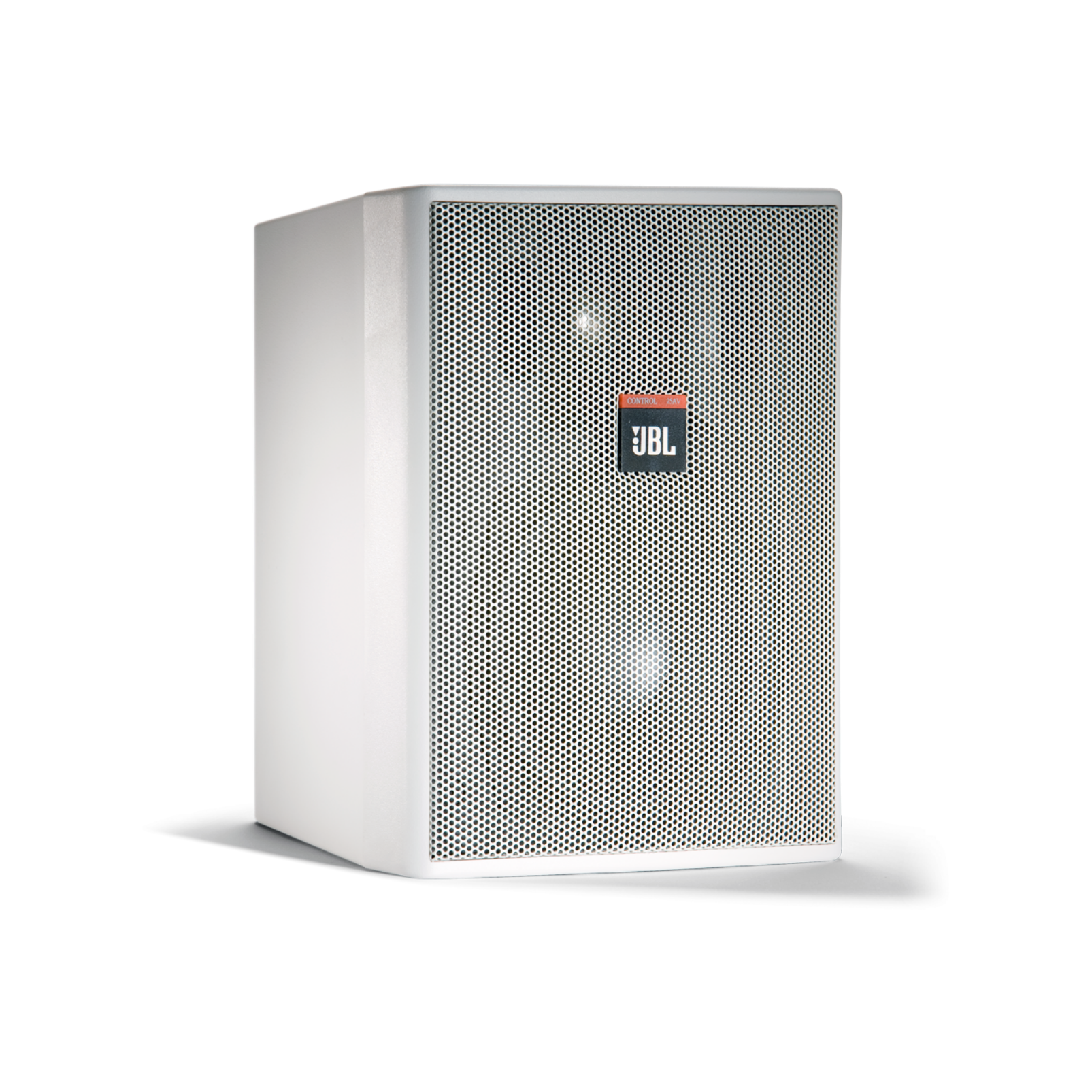

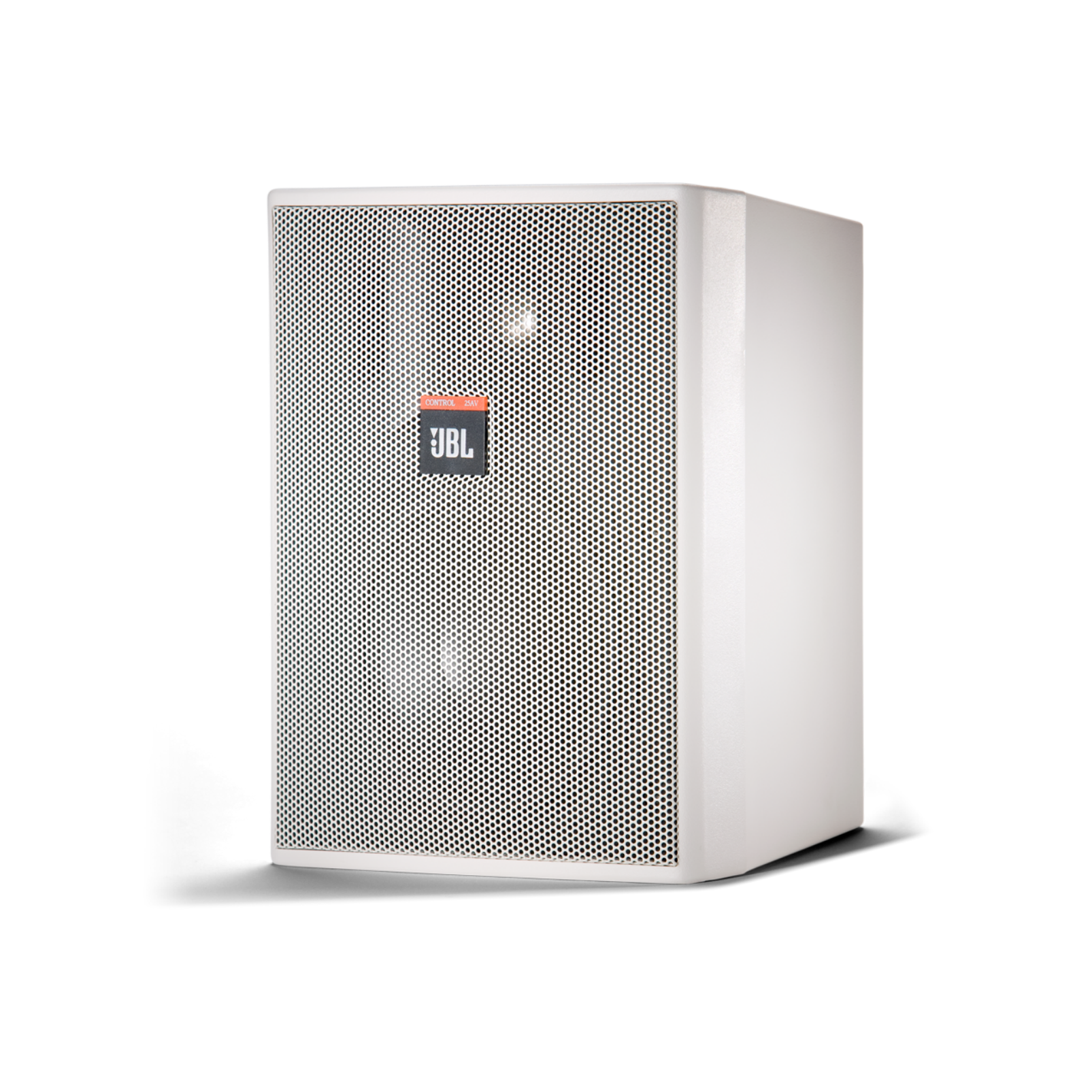

General Specifications
- Frequency Range (-10 dB)
- 70 Hz – 23 kHz
- Midrange (±1.5 dB, typical)
- 130 Hz – 14 kHz
- 100 Hr Power Capacity
- 200 Watts Continuous Program Power ; 100 Watts Continuous Pink Noise
- Nominal Coverage
- 100° x 100°
- Nominal Sensitivity
- 87 dB SPL, 1W @ 1 m (3.3ft)
- Maximum SPL @ 1m
- 113 dB continuous peak pink noise ; 107 dB continuous average pink noise ; 103 dB continuous average music or speech
- Directivity Factor (Q)
- 4.9, averaged 500 Hz to 4 kHz
- Directivity Index (DI)
- 6.9 dB, averaged 500 Hz to 4 kHz
- Nominal Impedance
- 8 ohms
- Minimum Impedance
- 6.7 ohms at 230 Hz
- Crossover Type
- Second Order Lowpass, Second Order Highpass, Complex Optimization for Maximally Flat Response
- Transformer Taps
- 170V = 60W, 30W, 15W, 7.5W taps (Taps #4,#3, #2 & #1) ; 100V = 60W, 30W, 15W taps (Taps #3, #2, & #1) ; Thru position = 8 ohms nominal
- Low Frequency Transducer
- 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
- High Frequency Transducer
- 20 mm (.75 in) titanium coated PEI
- Included Accessories
- 1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench
- Optional Accessories
- MTC-25V for vertical columnar mounting of up to 3 speakers ; MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage. ; MTC-28/25CM to install speaker down from the ceiling. Check JBL Control Contractor Bracket and Adapter Handbook. ; MTC-xxWMG WeatherMax? Stainless Steel Grille with a three-layer backing, including vapor barrier to break up driving precipitation. Available in black or white (-WH).
Dimensions
- Dimensions (H x W x D)
- 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
- Net Weight (ea)
- 4.0 kg (9 lbs)
- Shipping Weight (pair)
- 9.0 kg (20 lbs) per pair
Design
- Enclosure Material
- High Impact polystyrene
- Grille
- Painted stainless steel, black or white to match cabinet, paintable
- Overload Protection
- Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
- Environmental
- Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
- Termination
- Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
- Safety Agency Rating
- Transformer is listed per UL1876
- Rotation
Rotation 37° vertical 44° horizontal On bracket
- Against wall on InvisiBall Base
