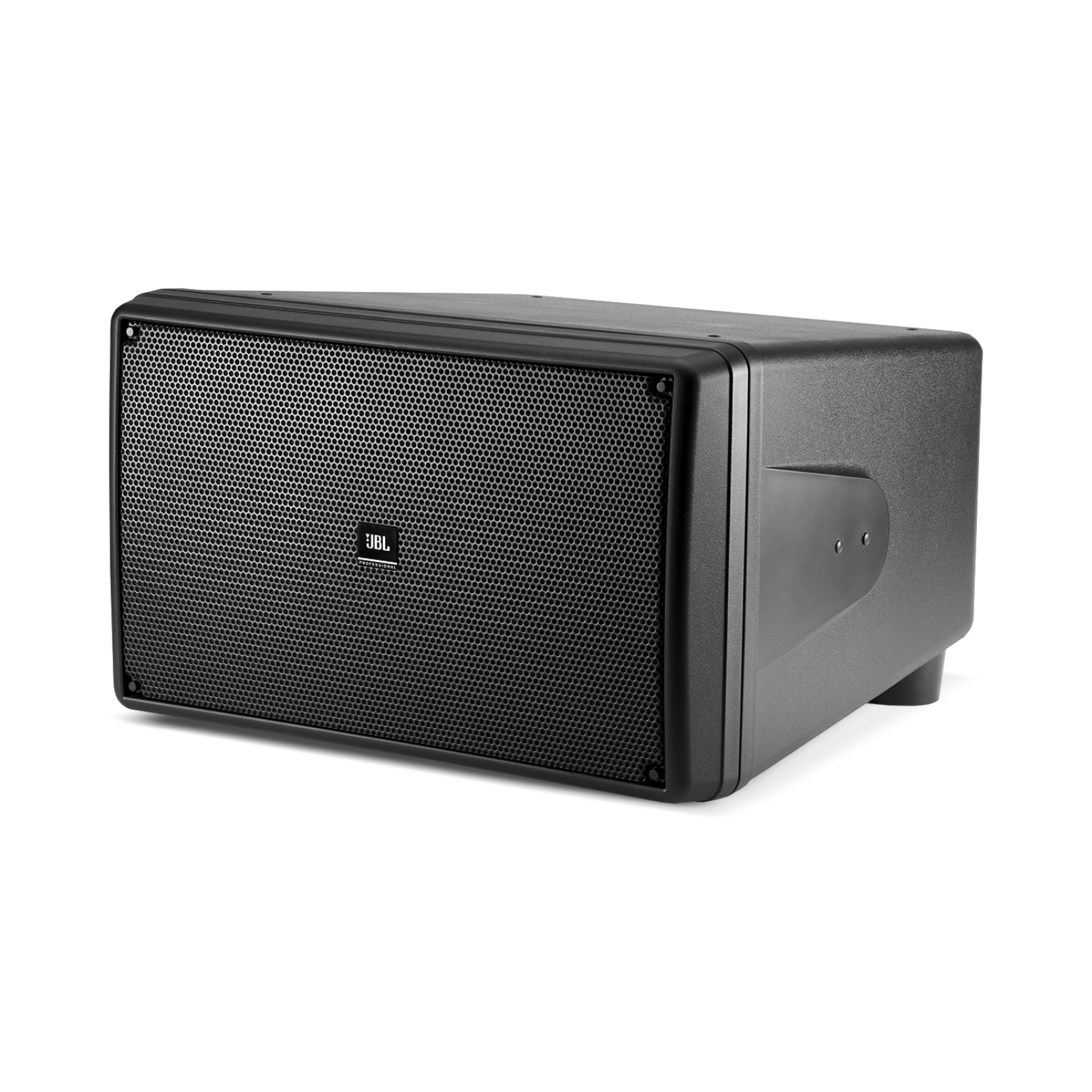

JBL Control SB2210 (B-Stock)

General Specifications

Frequency Range (-10dB)

38 Hz – 500 Hz

Frequency Response (-3 dB)

48 Hz – 95 Hz

Power Rating

500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program (2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs)

Maximum Input Voltage

60.0VRMS (2 hrs), 120V peak

Sensitivity

95 dB, 1W @ 1m in half-space (2π loading, average 50 – 90 Hz)

Maximum SPL (1m)

122 dB in half-space (2π loading)

Impedance

8Ω

Minimum Impedance

7.2Ω at 160 Hz

Recommended Filter

45 Hz, 24 dB/oct high-pass filter

Drivers

Two 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider, high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring

Enclosure

High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance.

Grille

Thermoset composite coated steel, zinc-plated, 3-layer foam backing

Outdoor Capability

IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray.

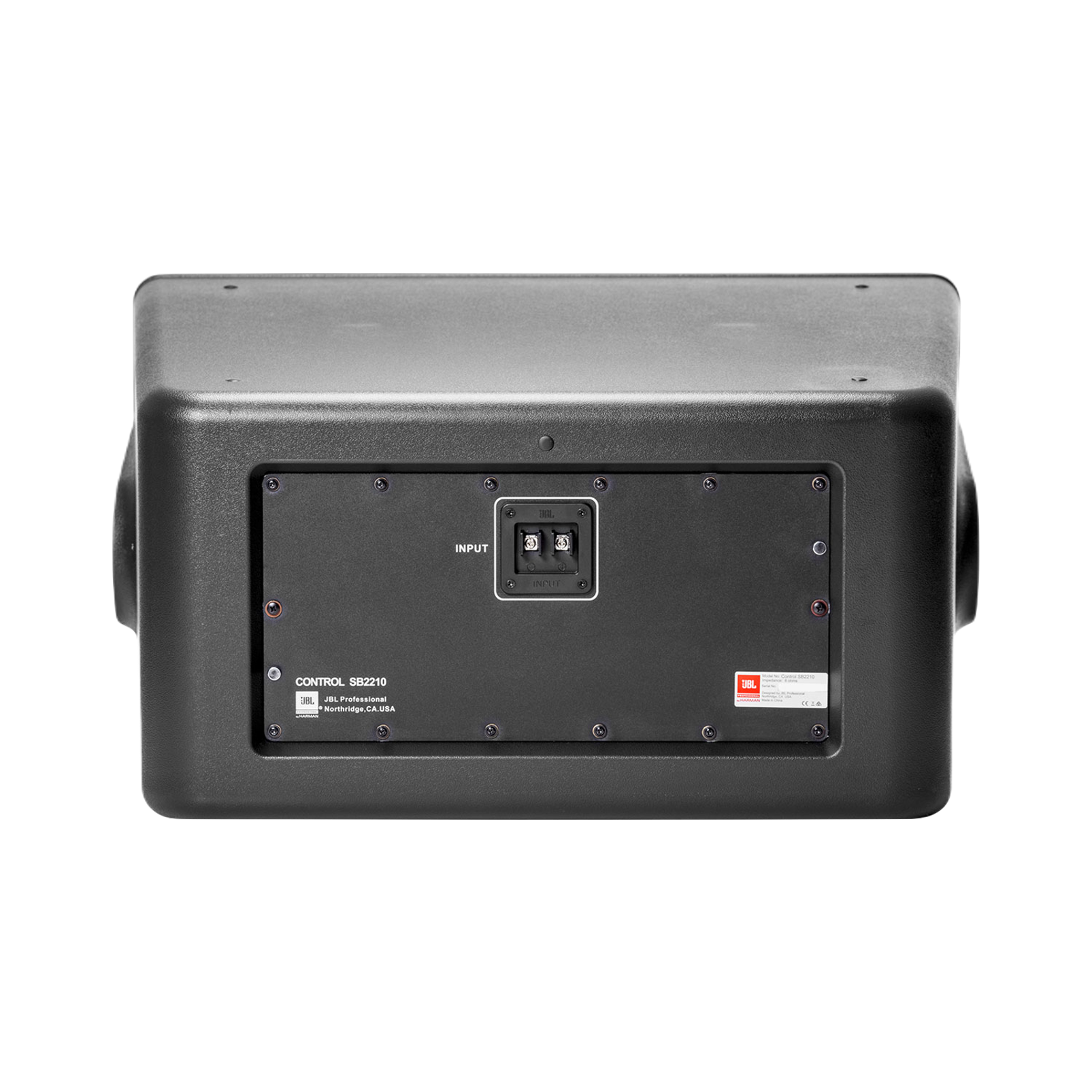

Input Connectors

Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection

Safety Agency

ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876

Included Accessories

1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers

Optional Accessories

MTC-210UB (&-WH) U-Bracket ; MTC-SBT300 70V/100V Transformer, 300W multi-tap, installs onto inside of back input panel using included 4 studs

Mounting Hardware

Optional U-bracket, insert points on top & bottom

Coverage Angle

Omnidirectional

Transformer Taps

70V = 300W, 150W, 75W, 38W ; 100V = 300W, 150W, 75W

Dimensions

Dimensions (H x W x D)

355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)

Net Weight (each)

23.31 kg (51.4 lb)
