General Specifications
- Type
- Compact Integrated Music System

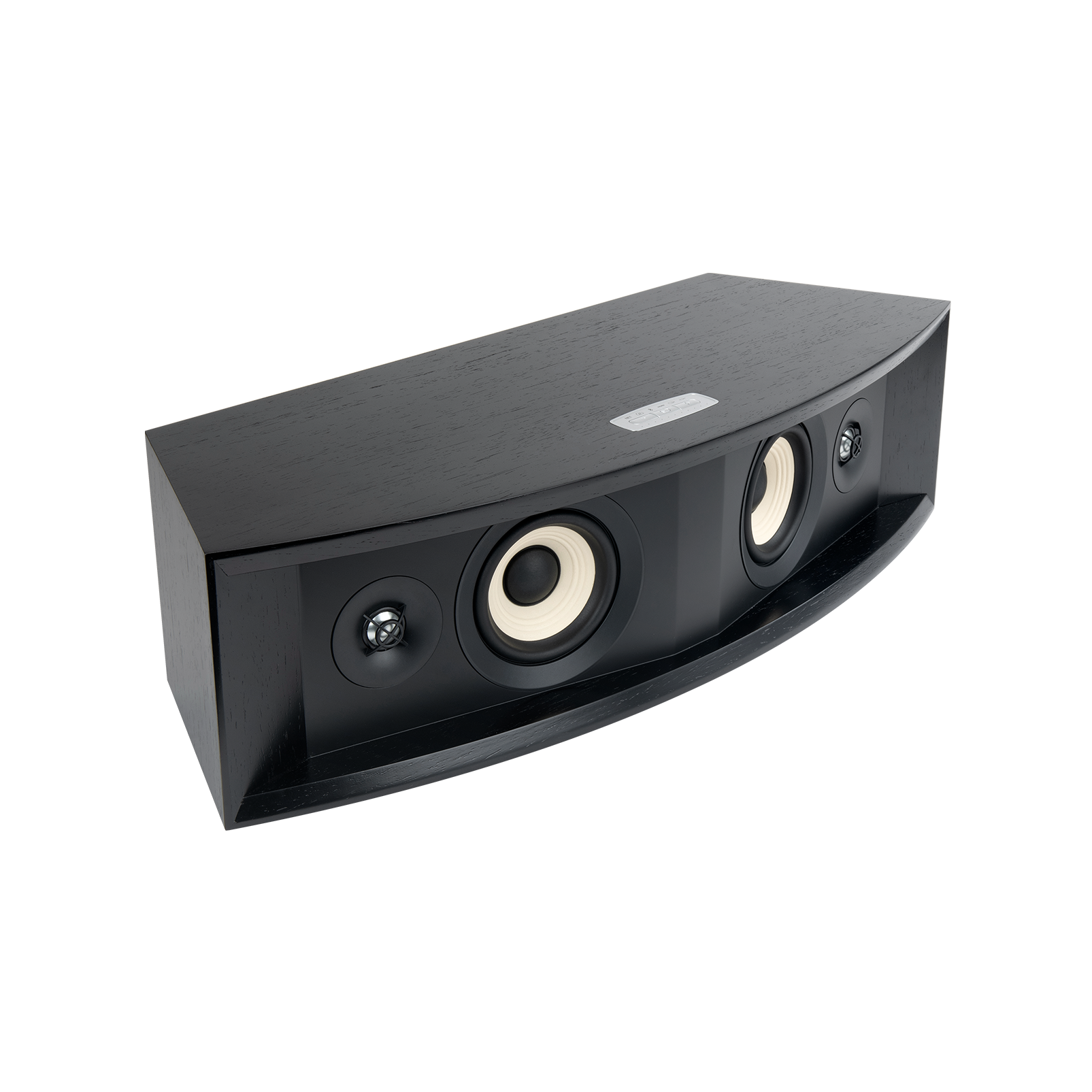

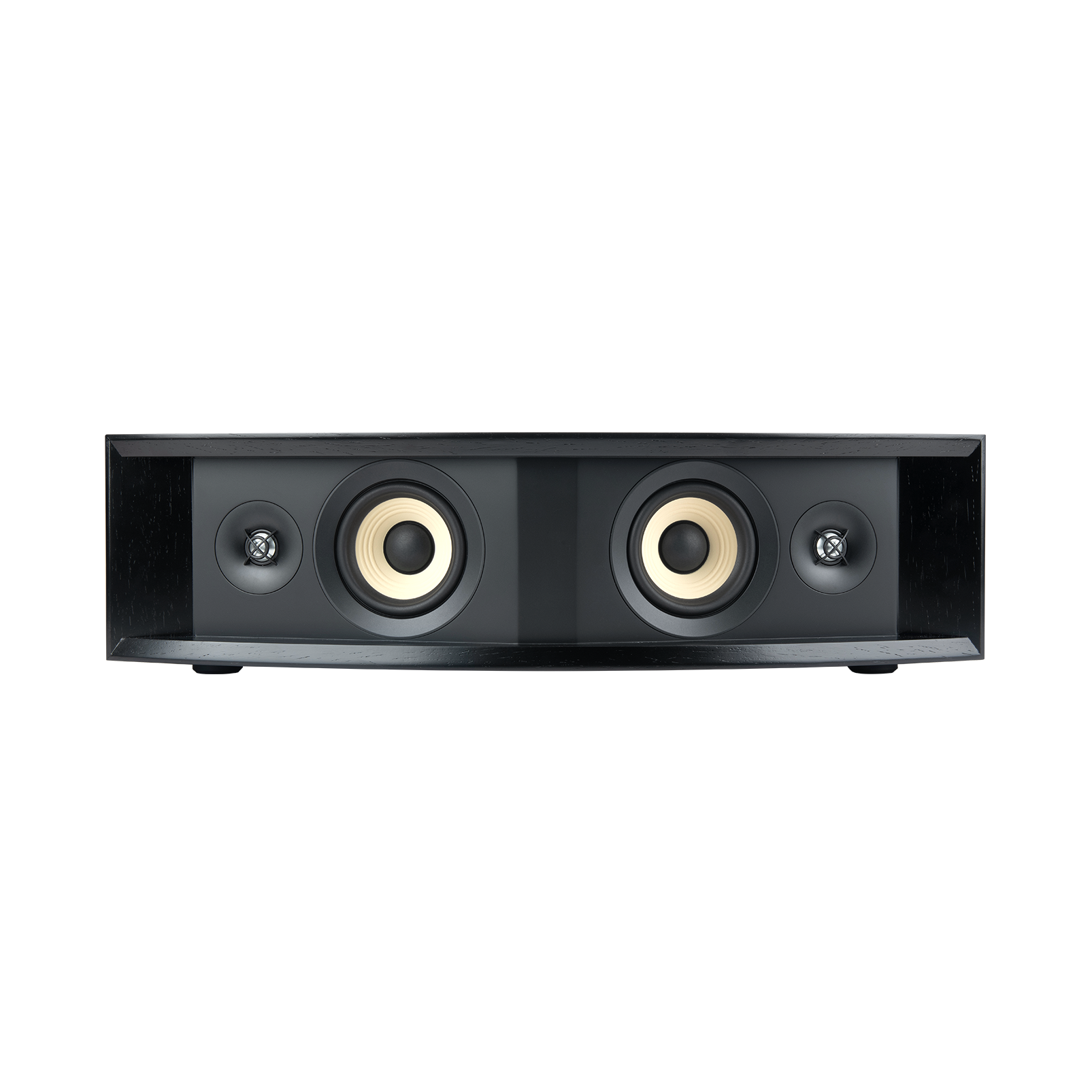

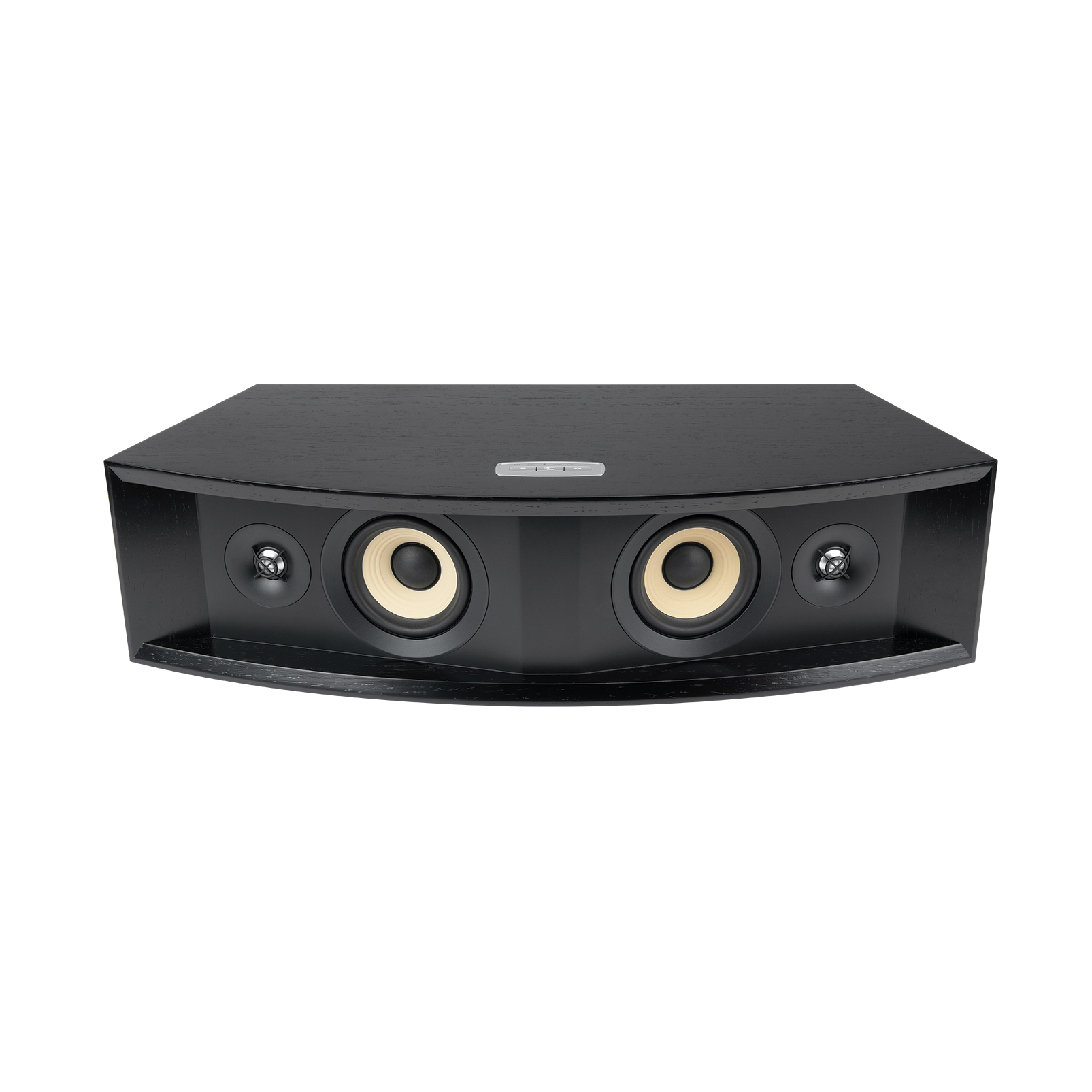

- Low Frequency
- Dual 4-inch (100mm) Pure Pulp white cone woofers
- High Frequency
- Dual 0.75-inch (20mm) Aluminum dome tweeters with waveguides
- Amplifier Power
- 200W RMS Class D Total System Power, 4-Channel Amplification with 75W RMS to each woofer + 25W RMS to each tweeter Configured for Stereo Reproduction
- Frequency Response
- 55Hz-25kHz (-6dB)
- Crossover Frequency
- 5kHz
- Maximum SPL
- 102dB @ 1m
- Sound Controls
Sound Controls Selectable Sound Field Expander (SFX)
- Speaker placement boundary compensation
- Subwoofer Output
- Autosensing w/ Auto-engage of 80Hz High Pass Filter
- Wireless Inputs
Wireless Inputs Bluetooth 4.2
- WiFi streaming

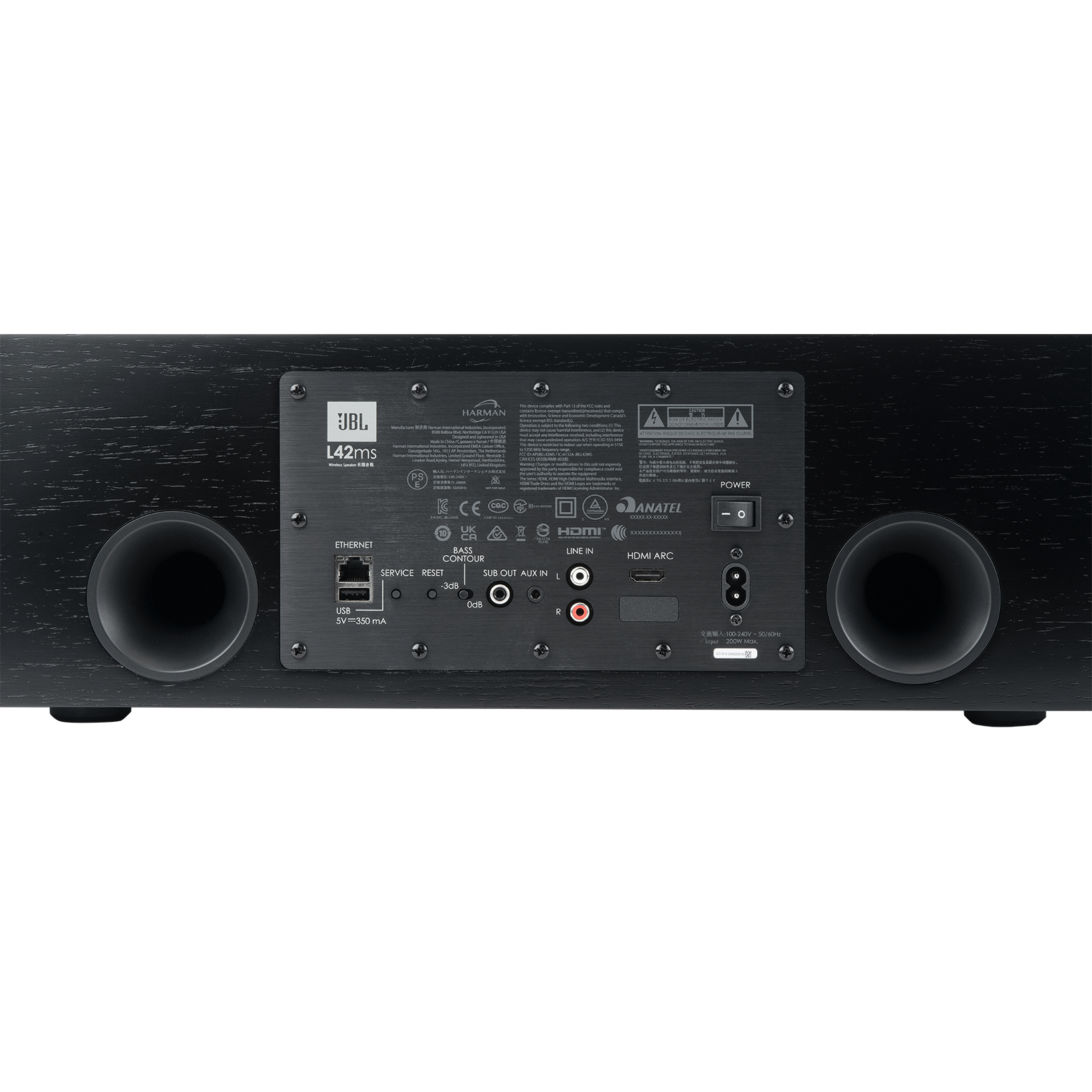

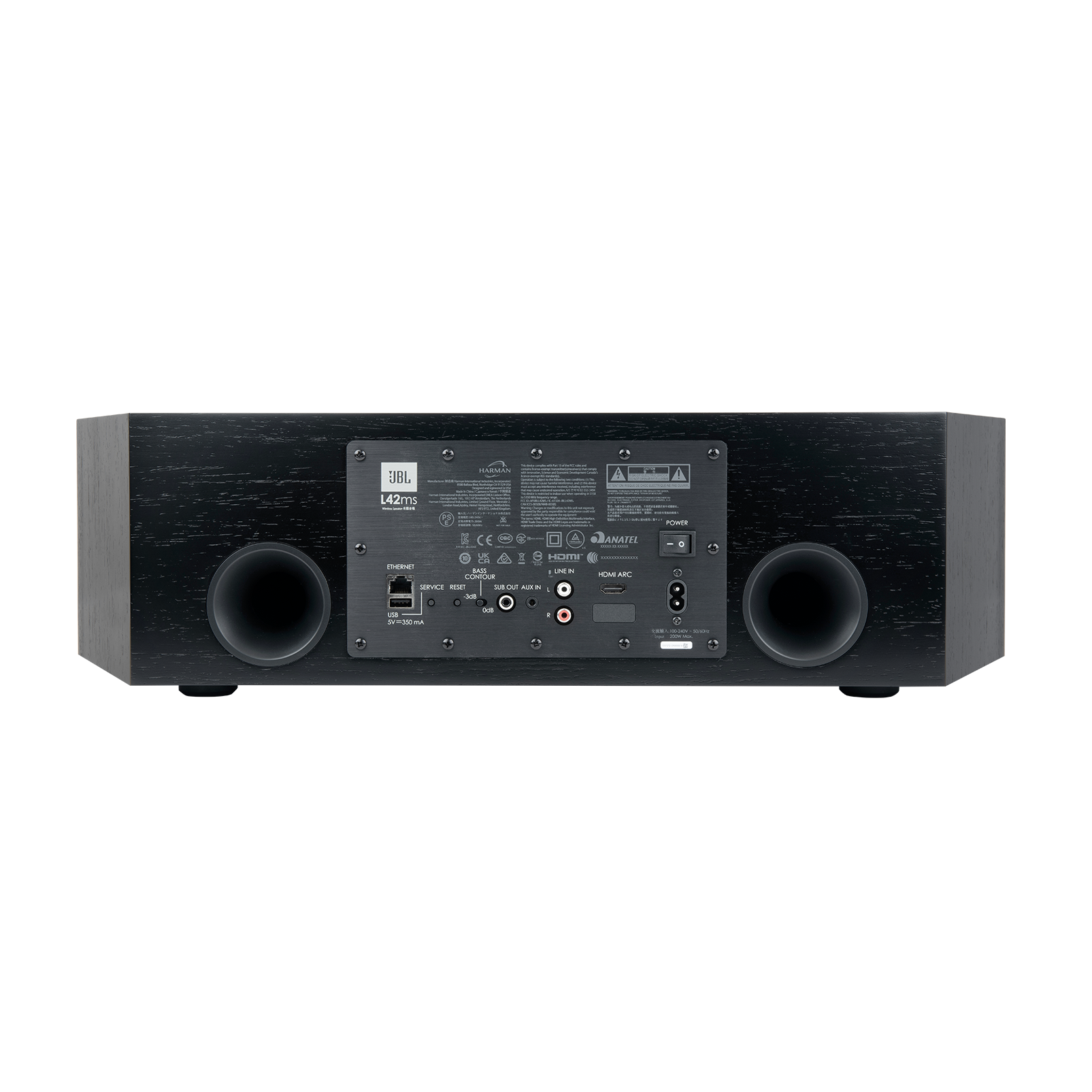

- Wired Inputs
Wired Inputs RJ-45 Ethernet
- HDMI ARC
- Supported Digital Audio Sample Rates (PCM 2CH)
Supported Digital Audio Sample Rates (PCM 2CH) 24-Bit
- Streaming
- Bluetooth Audio
- Version 4.2 Profiles, SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

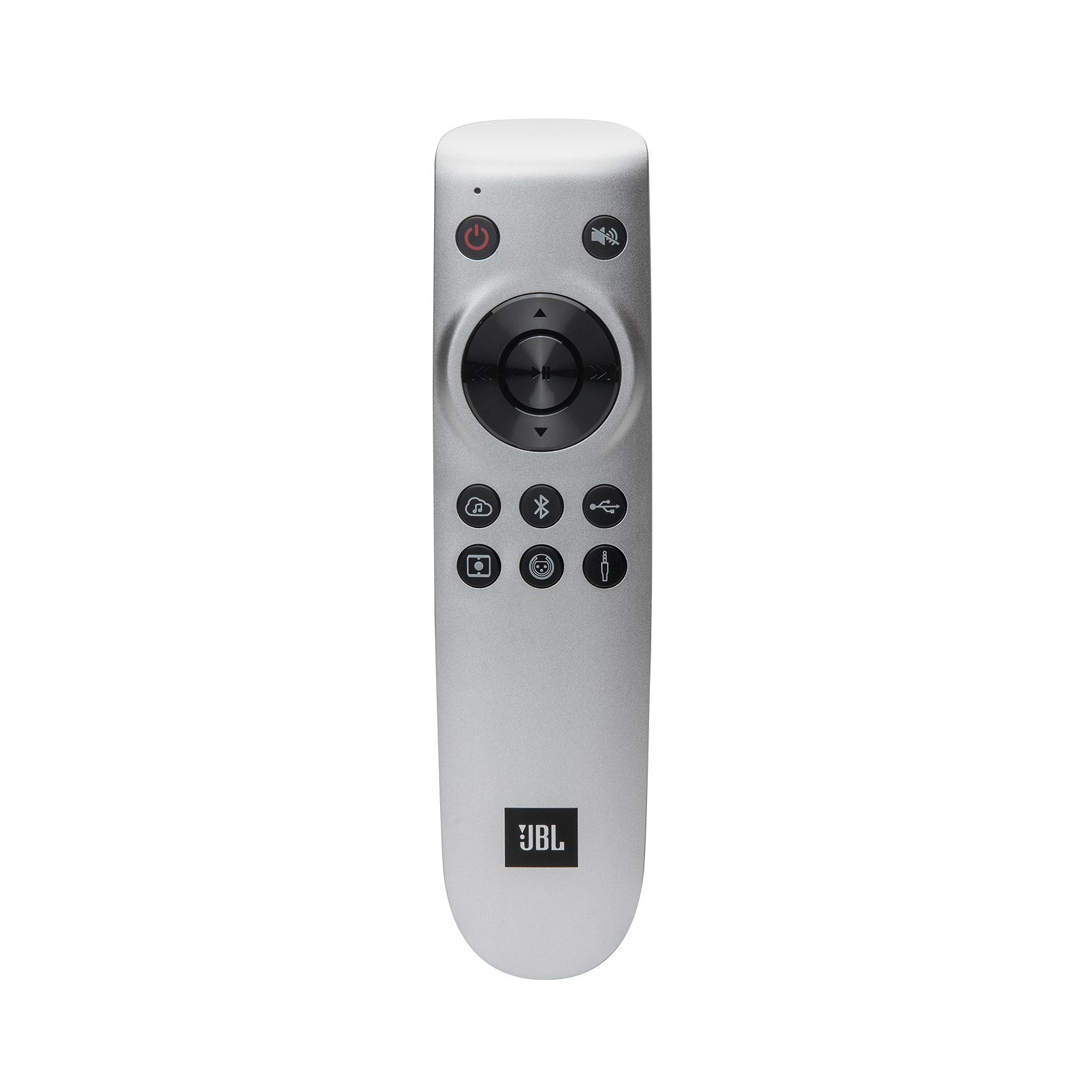

- Remote Control Type
- BTLE Wireless

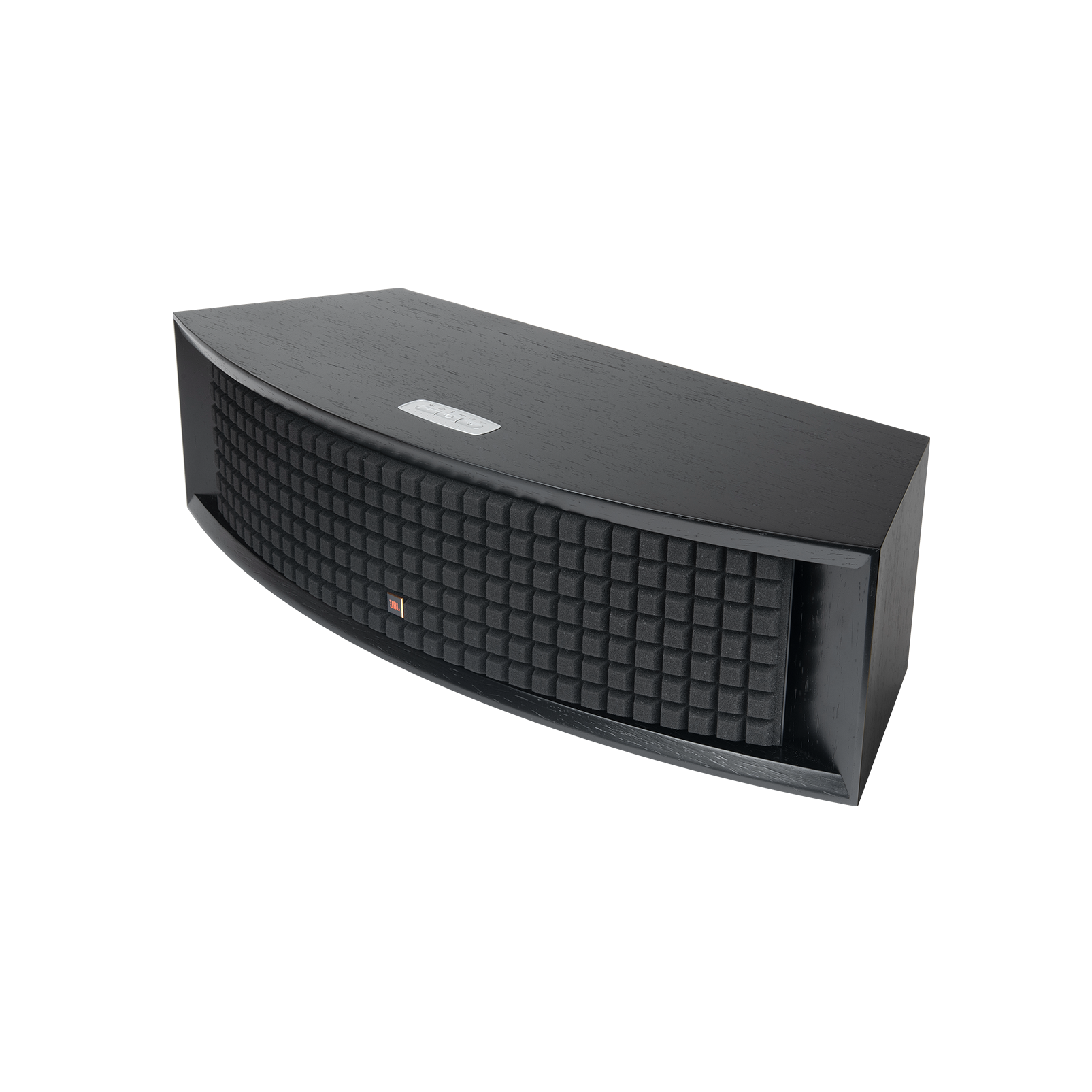

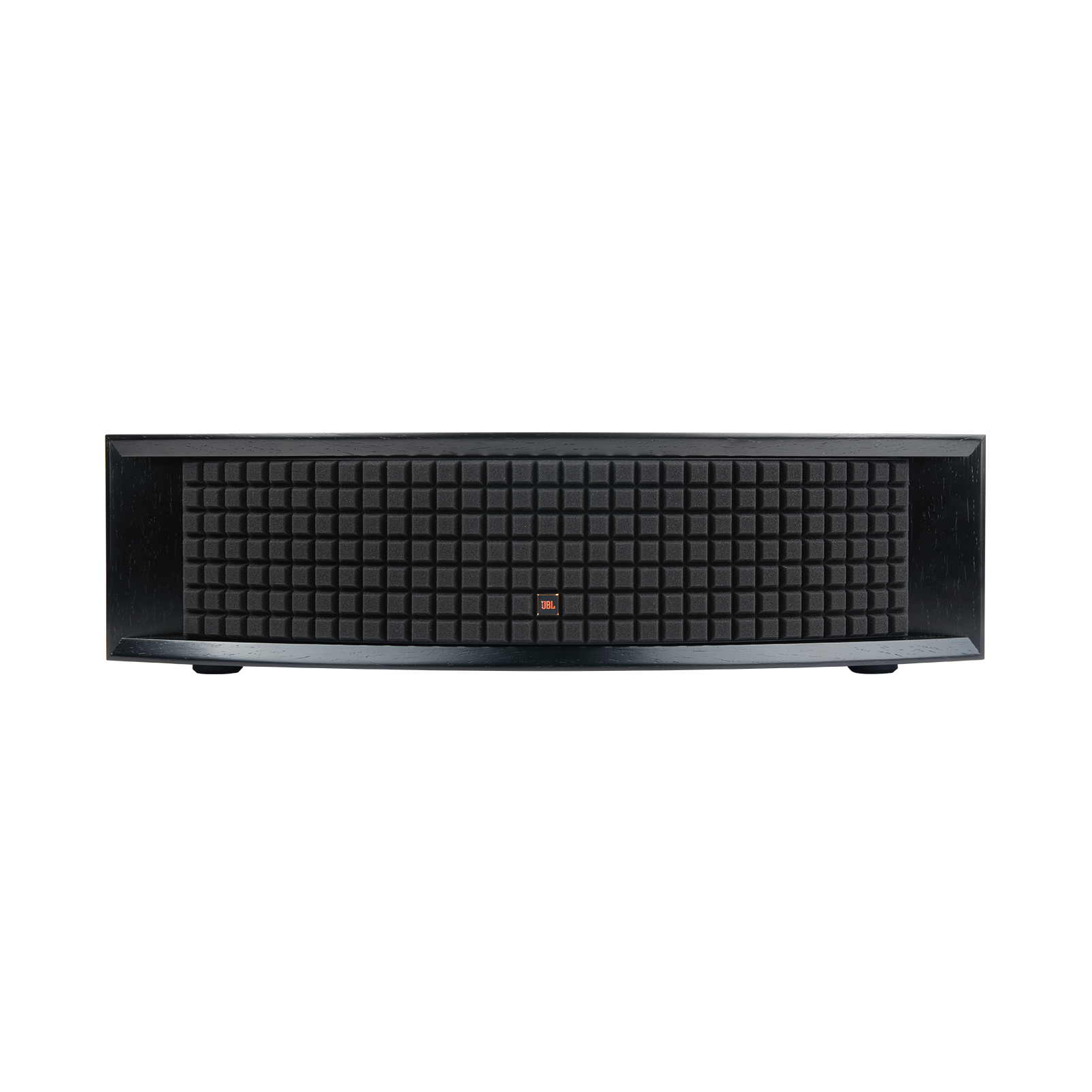

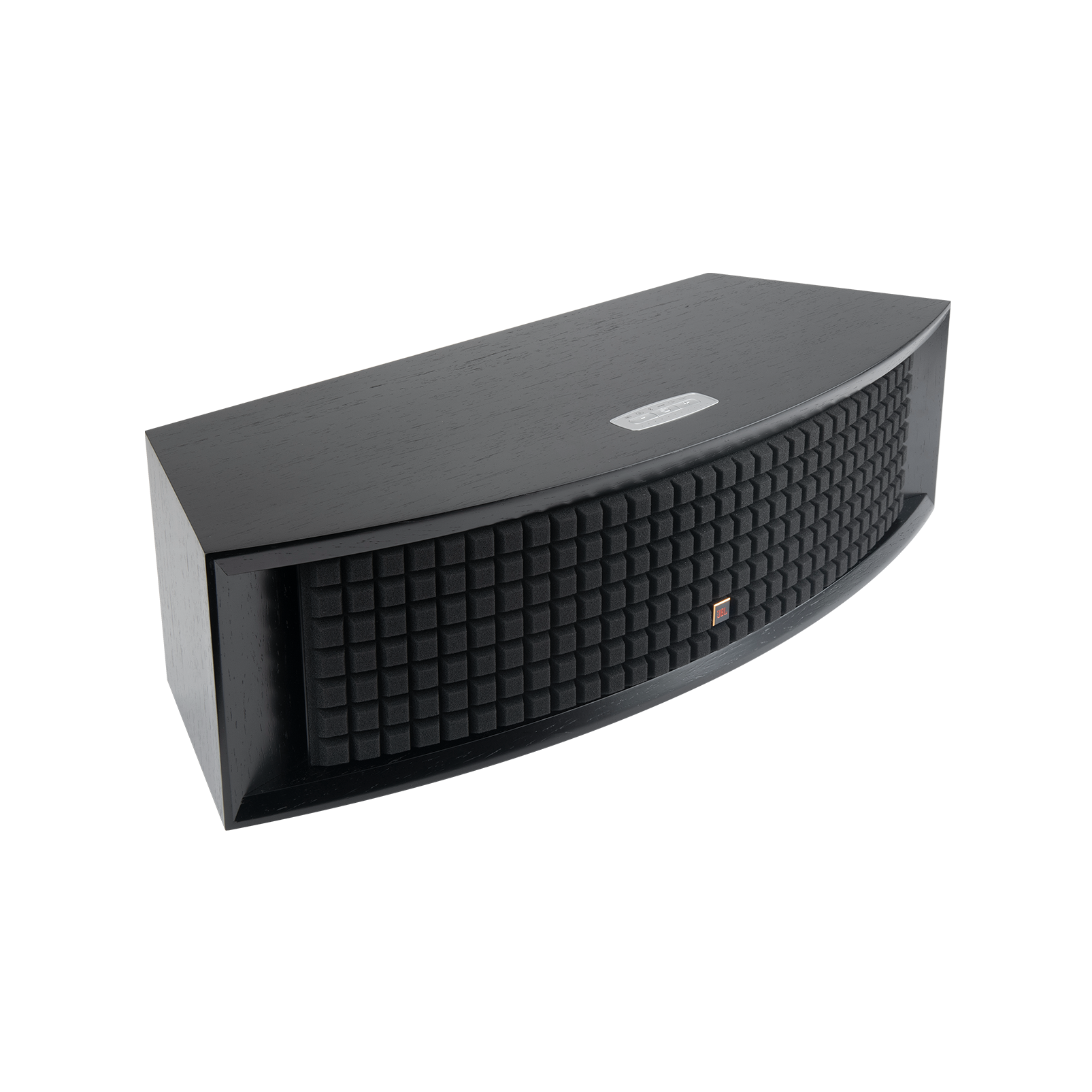

- Grille
- Black foam Quadrex grille
- Enclosure
- Front-ported tabletop style cabinet available in black walnut or natural walnut furniture-grade wood veneer
- Net Speaker Dimensions (HxWxD)
- 6.4 x 24.3 x 9.2 (162mm x 617mm x 234mm)
- Net Product Weight
- 26.3 lbs. (11.9kg)
- Shipping Unit of Measure
- Each
- Gross Shipping Dimensions (HxWxD)
- 11.1” x 27.0” x 14.2” (283mm x 685mm x 360mm)
- Gross Shipping Weight
- 34.3 lbs (15.6 kg)
- AC Input Voltage
- 100 – 240 VAC (+/-10%), 50/60Hz
