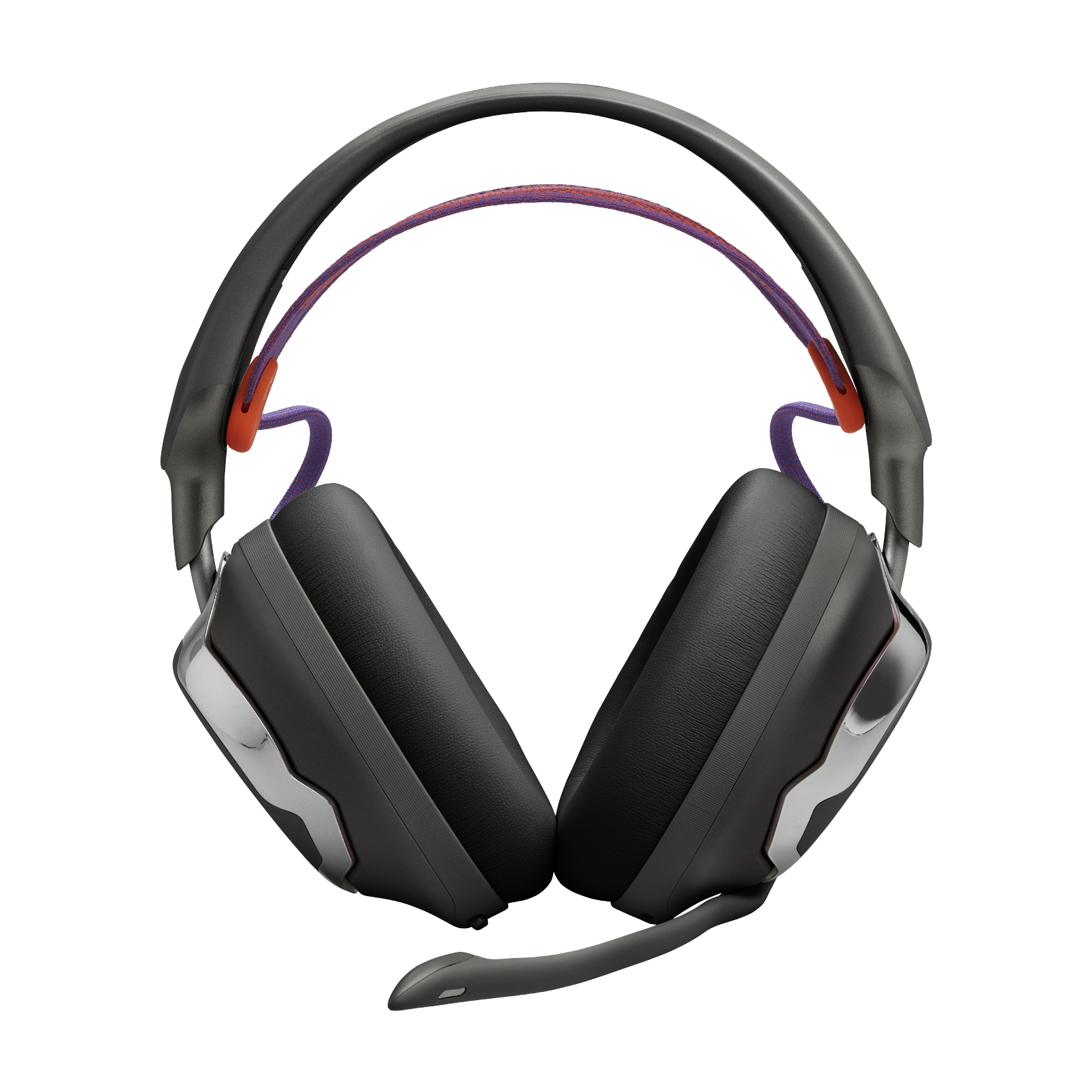

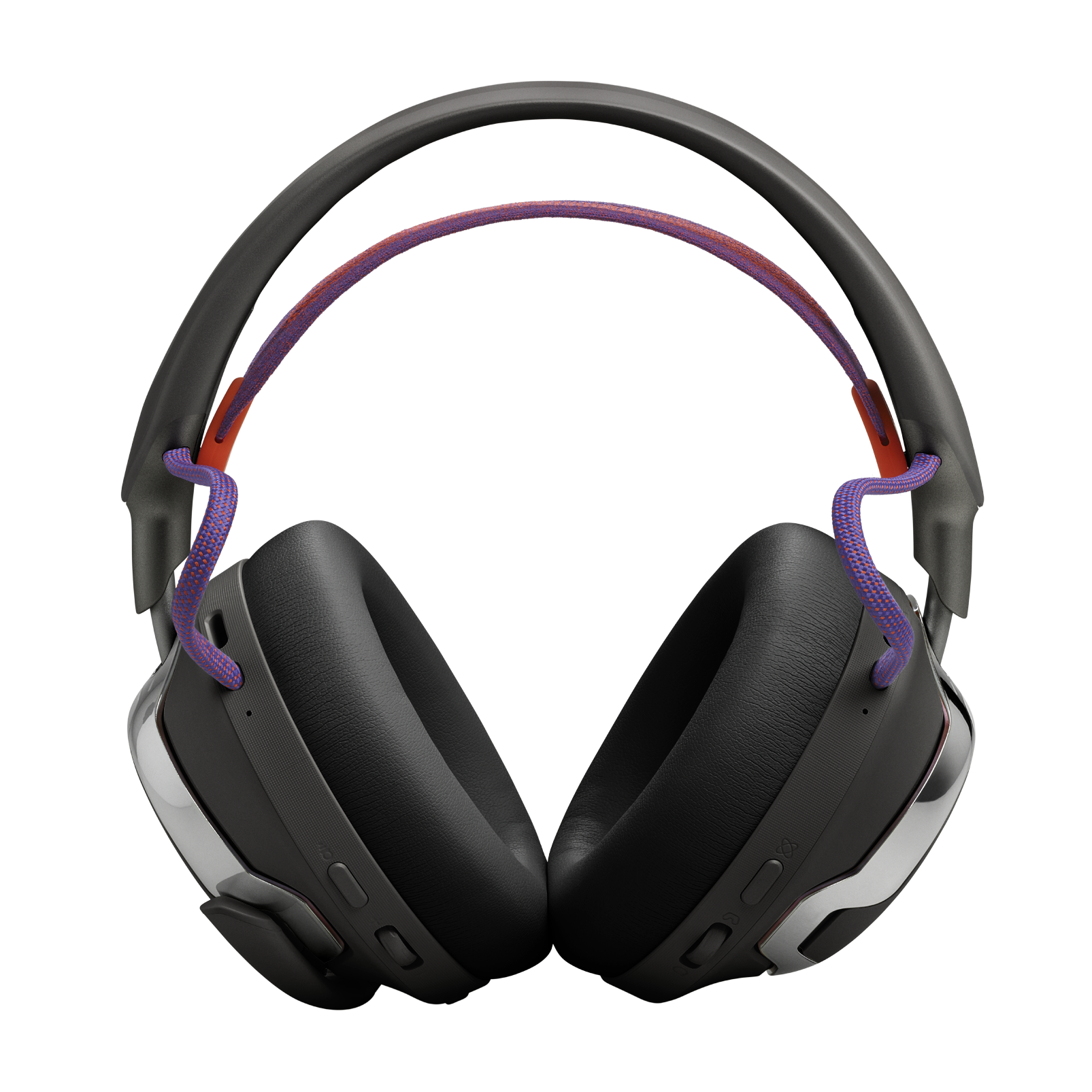

JBL Quantum 950X

General Specifications

Maximum operation temperature

45°C

Audio Specifications

Frequency response (Passive)

20 Hz – 40 kHz

Microphone frequency response

100 Hz – 8 kHz

Max input power

30 mW

Sensitivity

101 dB SPL @1 kHz / 1 mW

Maximum SPL

96 dB

Microphone sensitivity

-44 dBV/Pa@1 kHz

Impedance

32 ohm

Microphone pickup pattern

Cardioid

Dimensions

Driver size

50 mm Dynamic Driver

Weight

398 g

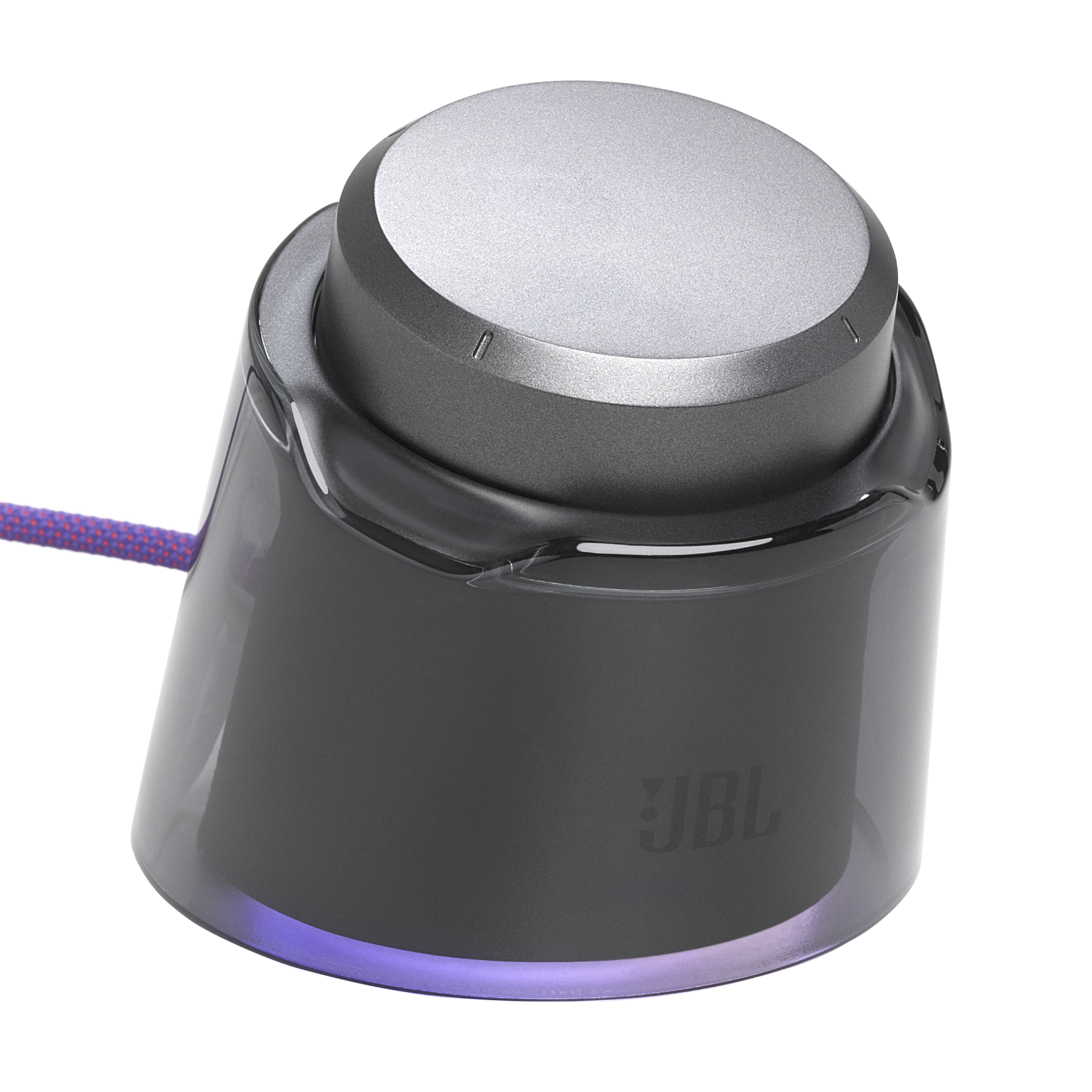

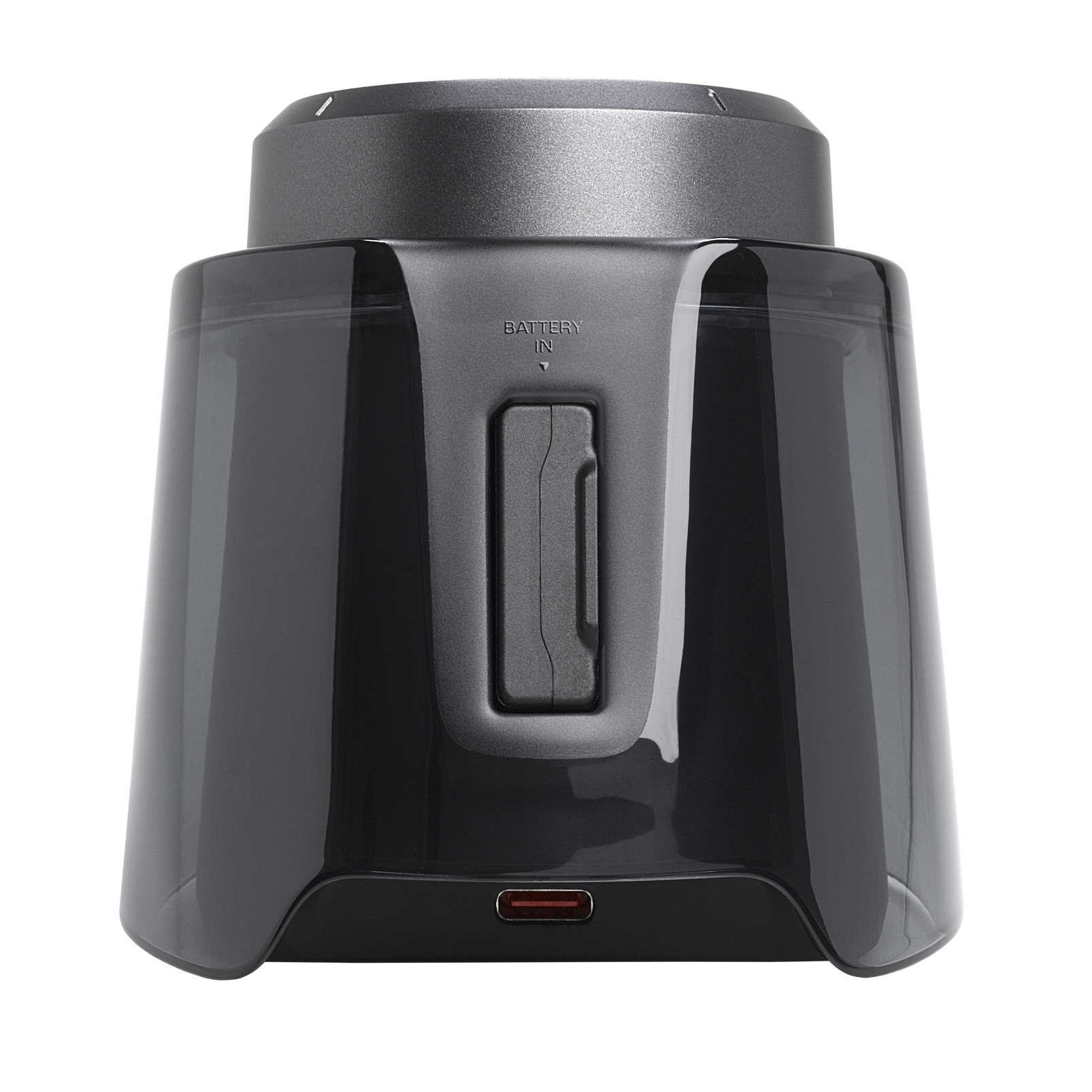

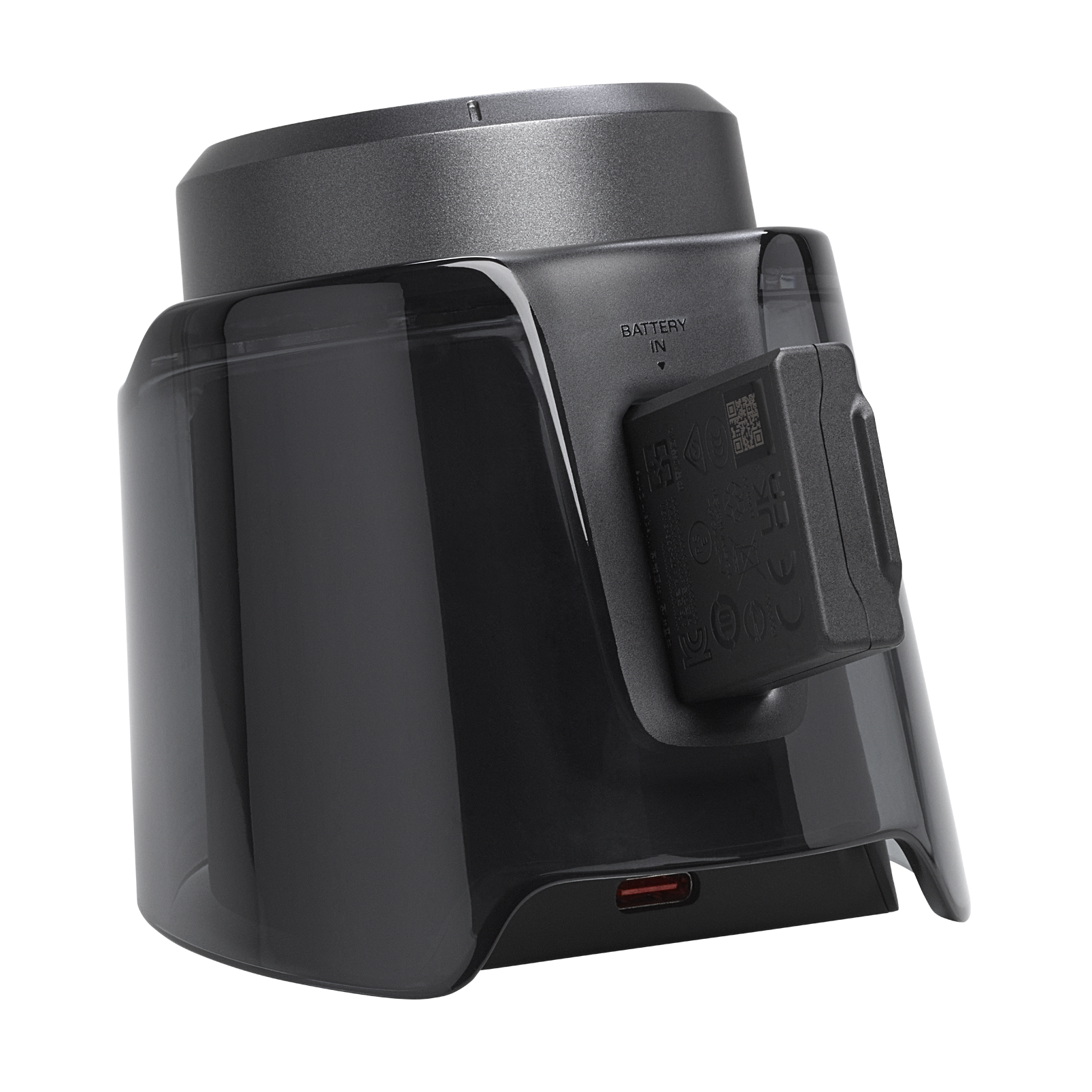

Weight (Base Station)

173 g

Control and Connection Specifications

2.4GHz wireless transmitter power (Headset)

< 13 dBm (EIRP)

2.4GHz wireless transmitter power (Dongle)

< 13 dBm (EIRP)

2.4GHz wireless modulation

GFSK

2.4GHz wireless carrier frequency

2.4 GHz – 2.4835 GHz

Bluetooth transmitted power

< 13 dBm (EIRP)

Bluetooth transmitted modulation

GFSK, π/4, 8 DQPSK

Bluetooth frequency

2.4 GHz – 2.4835 GHz

Bluetooth profile version

A2DP V1.4, HFP V1.8, AVRCP V1.6.2

Bluetooth version

V5.3

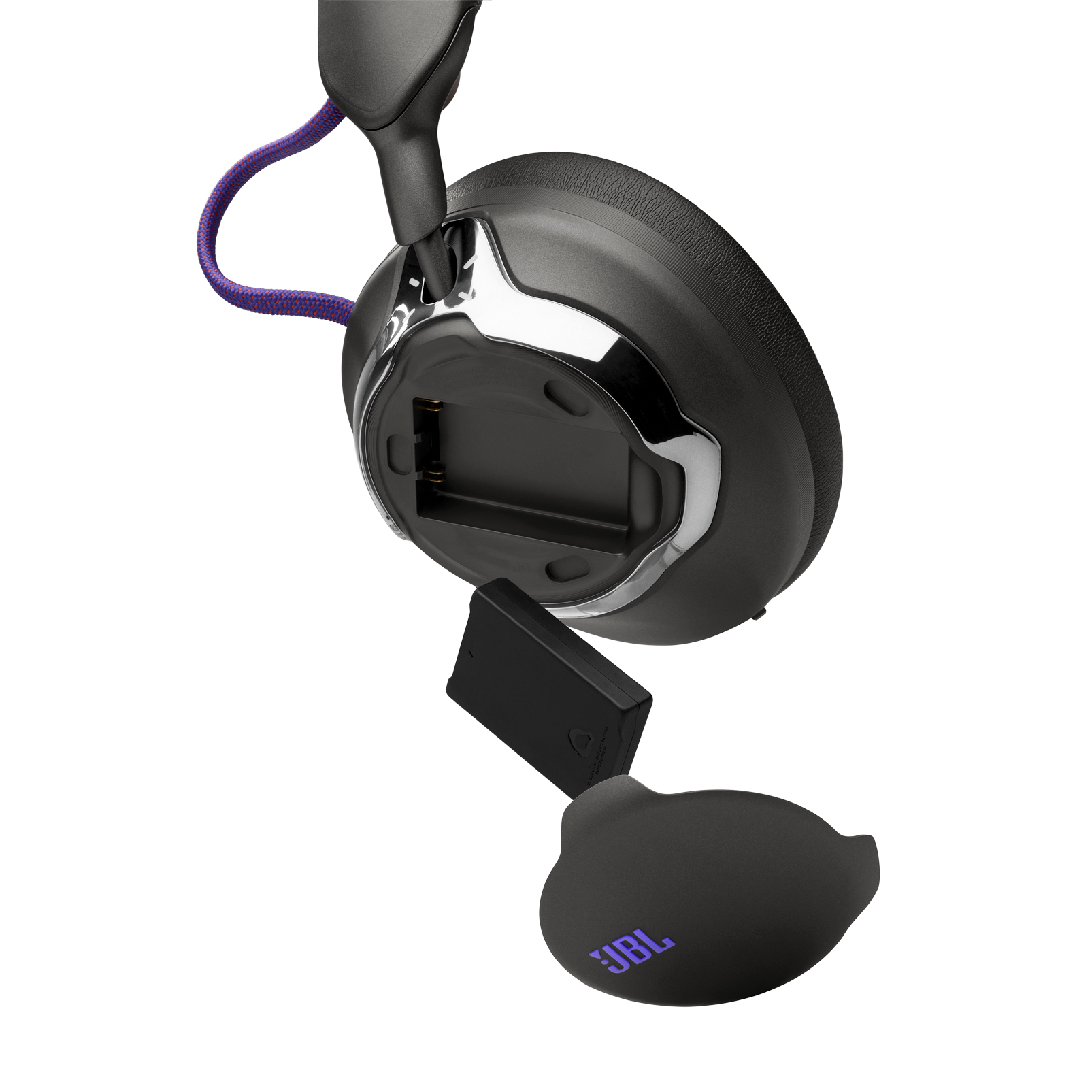

Battery

Battery type

Lithium-ion battery (3.7 V / 700 mAh)

Power supply

5V ? 1A

Charging time

< 3 hrs from empty

Music play time with only 2.4GHz on

Up to 25 hrs

Talk time with only 2.4GHz on and ANC

Up to 18 hrs

Music play time with only BT on

Up to 30 hrs

Talk time with only BT on and ANC

Up to 20 hrs

Music play time with BT+2.4GHz on

Up to 22 hrs

Talk time with BT+2.4GHz on and ANC

Up to 17 hrs

Features

Gaming Headphone

Yes

Adaptive Noise Cancelling

Yes

Wireless

Yes

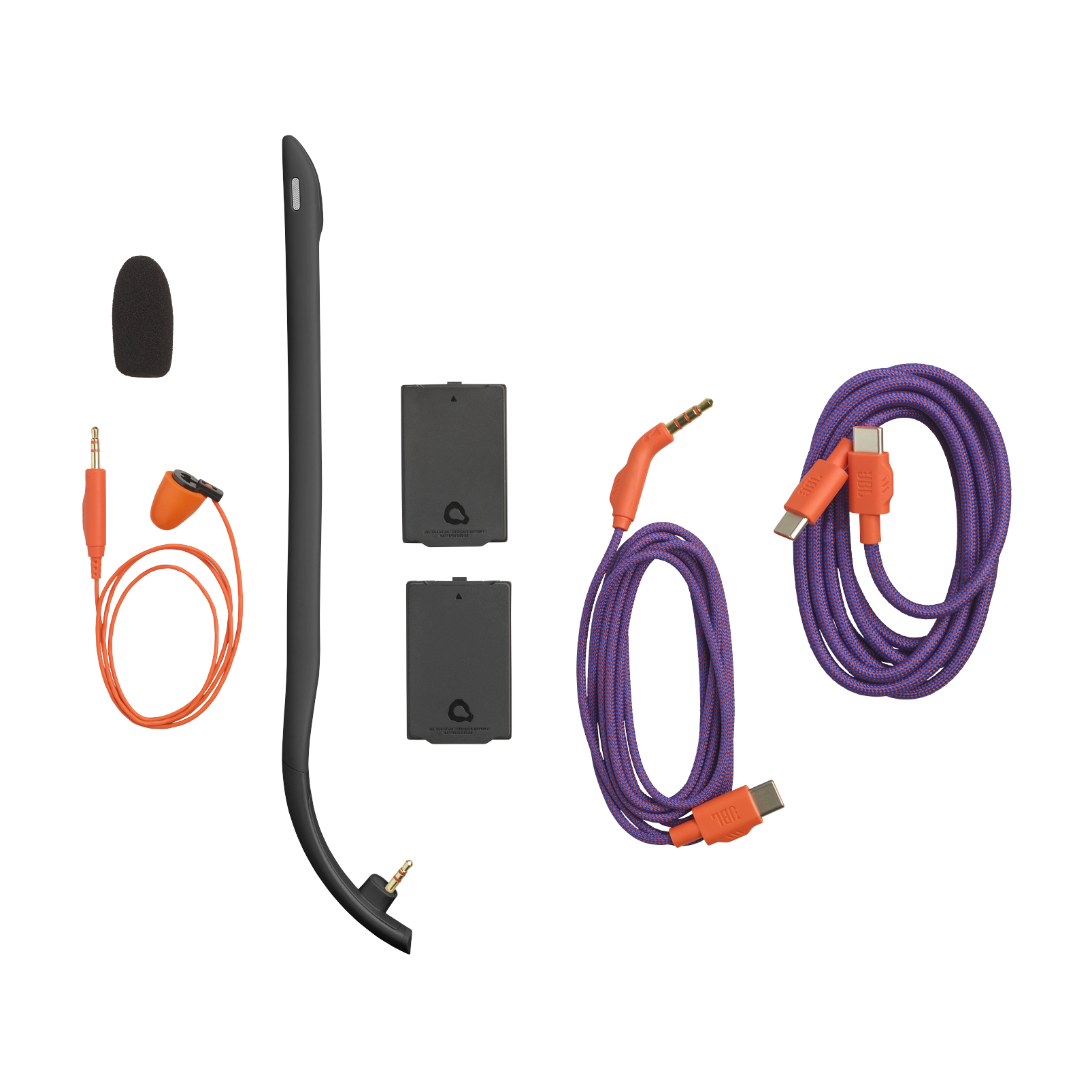

Charging cable

Yes

Over-ear

Yes

Rechargable battery

Yes

Bluetooth

Yes
