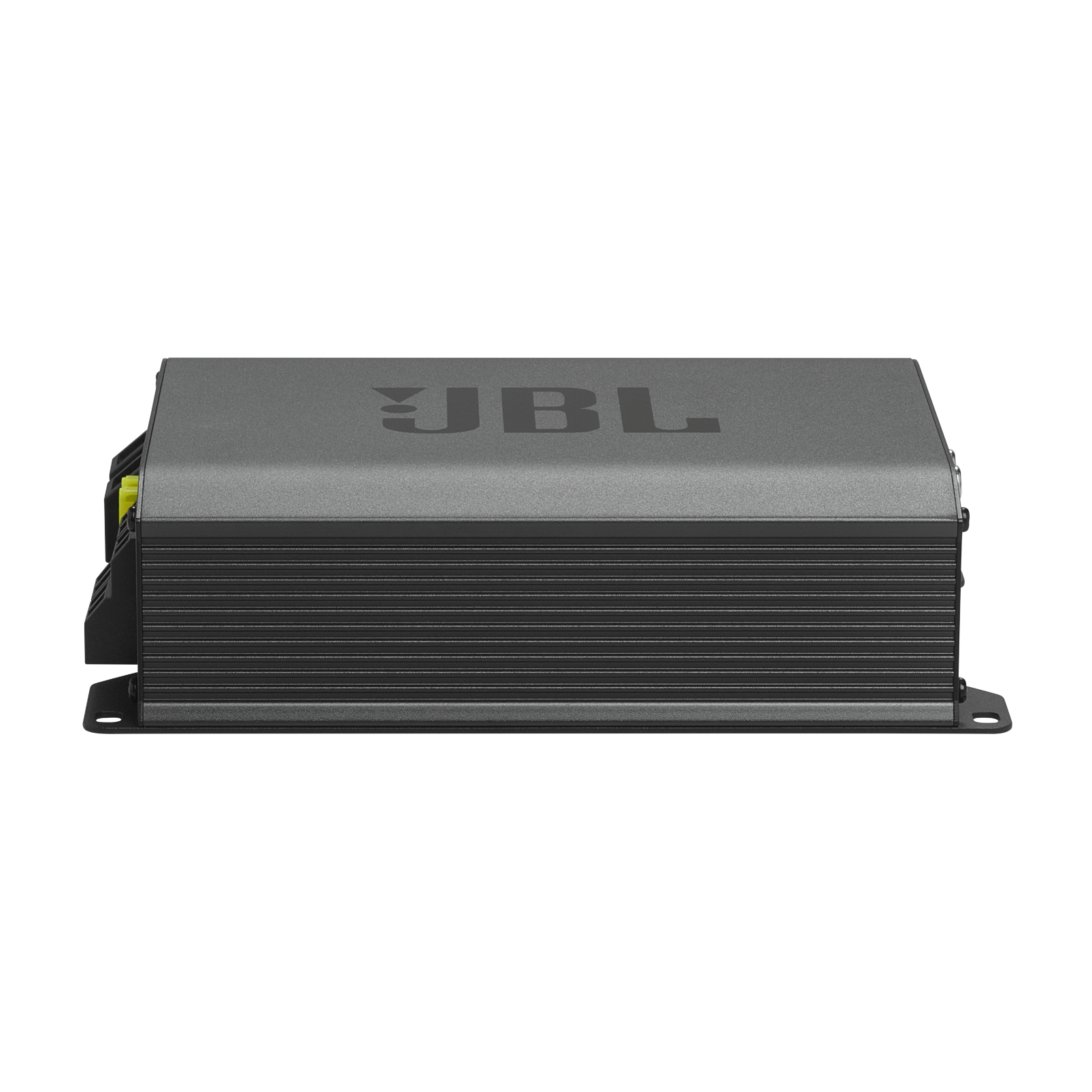

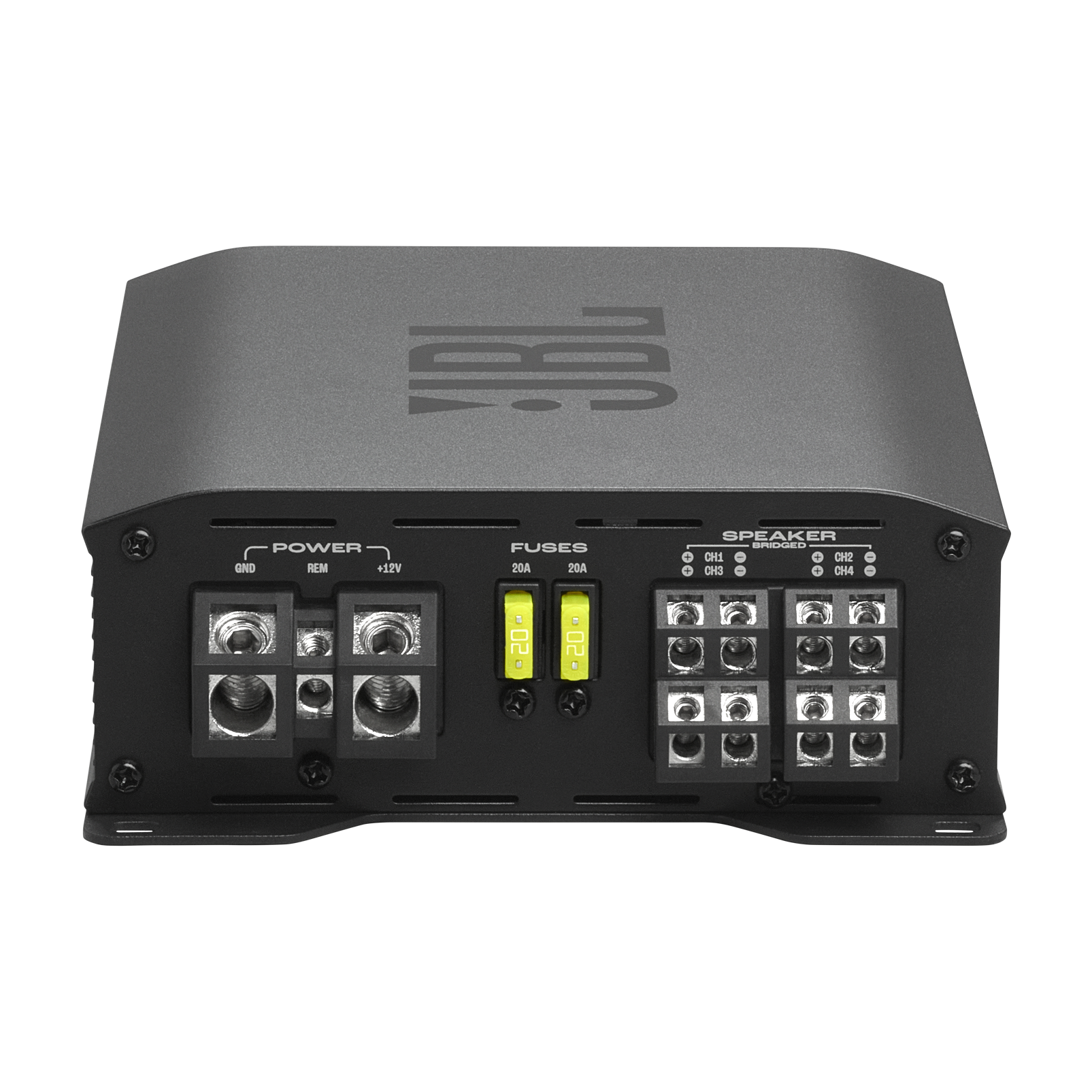

JBL STAGE GT 60041 Amplifier

General Specifications

Max Power

1240W peak

Power Output

180Wrms x 2 @ Bridged 4 ohms full range

Power Output

90Wrms x 4 @ 2 ohms full range

Power Output

65Wrms x 4 @ 4 ohms full range

Frequency Response

20Hz – 20kHz±1dB

THD+N@ROP

1%

Input Sensitivity LOW

Input Sensitivity LOW 1V – 25V

0.2V – 5V, HIGH

High/Low Pass Filter, Variable

32Hz – 320Hz

Bass EQ@45Hz

0 – 12dB Variable

Protection

DCP, OVP, UVP, OCP, OTP

Operating Voltage

9V – 16V

Fuse Rating

20A x 2
