General Specifications
- Power Input
- 5V / 9V / 12V / 15V 3A, 20V / 4A
- Signal-to-Noise Ratio
- > 80 dB
- Rated Output Power
- 1 x 90W RMS Woofer + 2 x 20W RMS Tweeter (AC power mode) 1 x 60W RMS Woofer + 2 x 15W RMS Tweeter (Battery mode)
Audio Specifications
- Frequency Response
- 40 Hz – 20k Hz
- Transducer – Tweeter (Inch)
- 2 x 0.75
- Transducer – Woofer (Inch)
- 1 x 3.9 x 5.7
- Transducer – Woofer (mm)
- 1 x 98 x 145
- Transducer – Tweeter (mm)
- 2 x 20
Dimensions
- Dimensions (Width x Height x Depth) (cm)
- 34.6 x 16.5 x 15.5
- Dimensions (Width x Height x Depth) (in)
- 13.6 x 6.5 x 6.1
- Weight (kgs)
- 2.9
- Weight (lbs)
- 6.38
Control and Connection Specifications
- Portable Speaker Specs – Supported Music File Formats
- SBC,AAC,LC3
- USB-C Charge Out
- 5V / 3A, 9V / 2A , 11V / 2A
- Connection Ports
- USB-C
- Bluetooth Profile
- A2DP 1.4, AVRCP 1.6
- Bluetooth Transmitter Frequency Range (GHz)
- 2.4 – 2.48
- Bluetooth Transmitter Modulation
- GFSK, π/4 DQPSK, 8DPSK
- Bluetooth Transmitter Power
- ≤ 15dBm (EIRP)
- Bluetooth version
- 6.0
Battery
- Charging time (hrs)
- 3.5
- Cabel Type
- JBL PD Adaptor
- Cable Length (ft)
- 59
- Cable Length (m)
- 1.5
- Maximum Operating Temperature
- 40°C

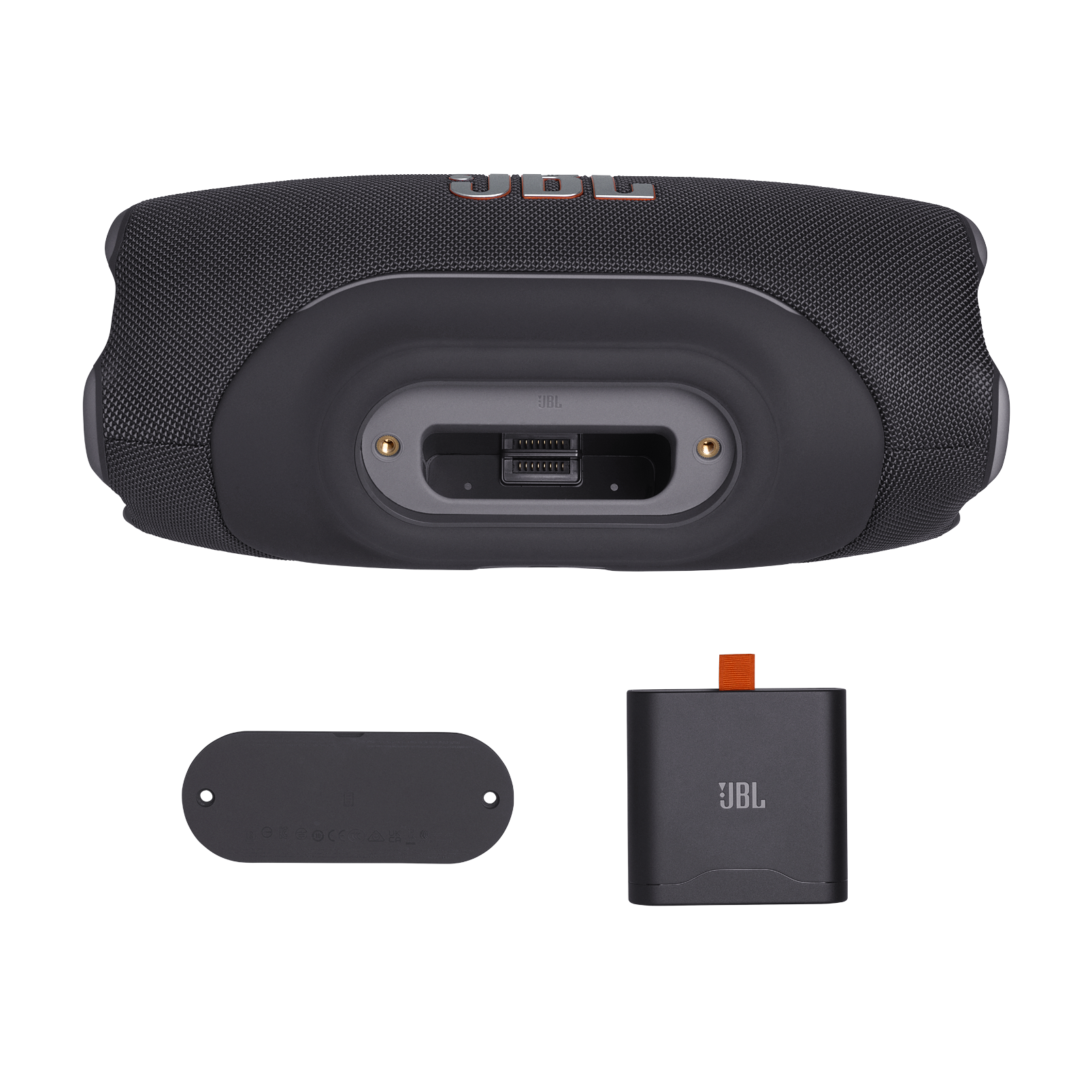

- Battery Type
- Li-ion 68Wh
- Maximum music playing time (hrs)
- 28
Features
- IP Code
- IP68
- JBL Portable App
- true
- Dustproof
- true
- Drop-proof
- true
- Waterproof
- Yes
- Supports Auracast
- Yes
- AI Sound Boost
- Yes
