General Specifications
- HDMI Audio Return Channel
- Yes
- 4K HDMI input connectors (HDMI 2.0,HDCP 2.2 up to 4K/60Hz Ultra HD)
- 4
- HDR 10
- Yes
- Pure Direct
- Yes
- EZ Set EQ
- Yes
- Digital signal processing
- up to 24-bit/192kHz

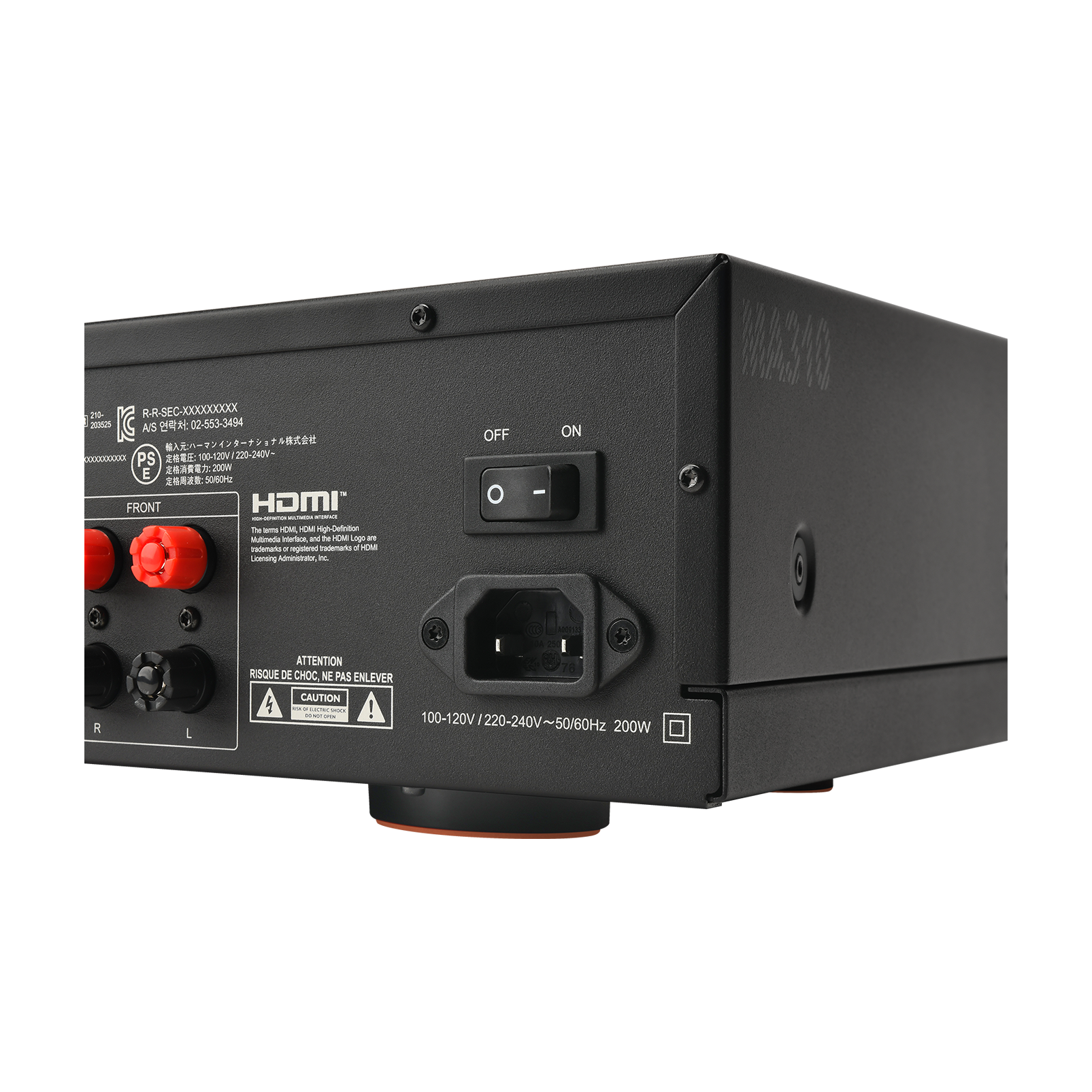

- Mains voltage
- 110 – 240V, 50–60Hz
- Max. power consumption
- 200W
- Standby power consumption
- <0.5W
Audio Specifications
- Channels
- 5.2
- FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)
- 50W
- Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
- 60 W RMS
- Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
- 100 W RMS
Dimensions
- Dimensions incl. feet and speaker terminals (H x W x D)
- 4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
- Weight
- 11.3lb (5.1kg)

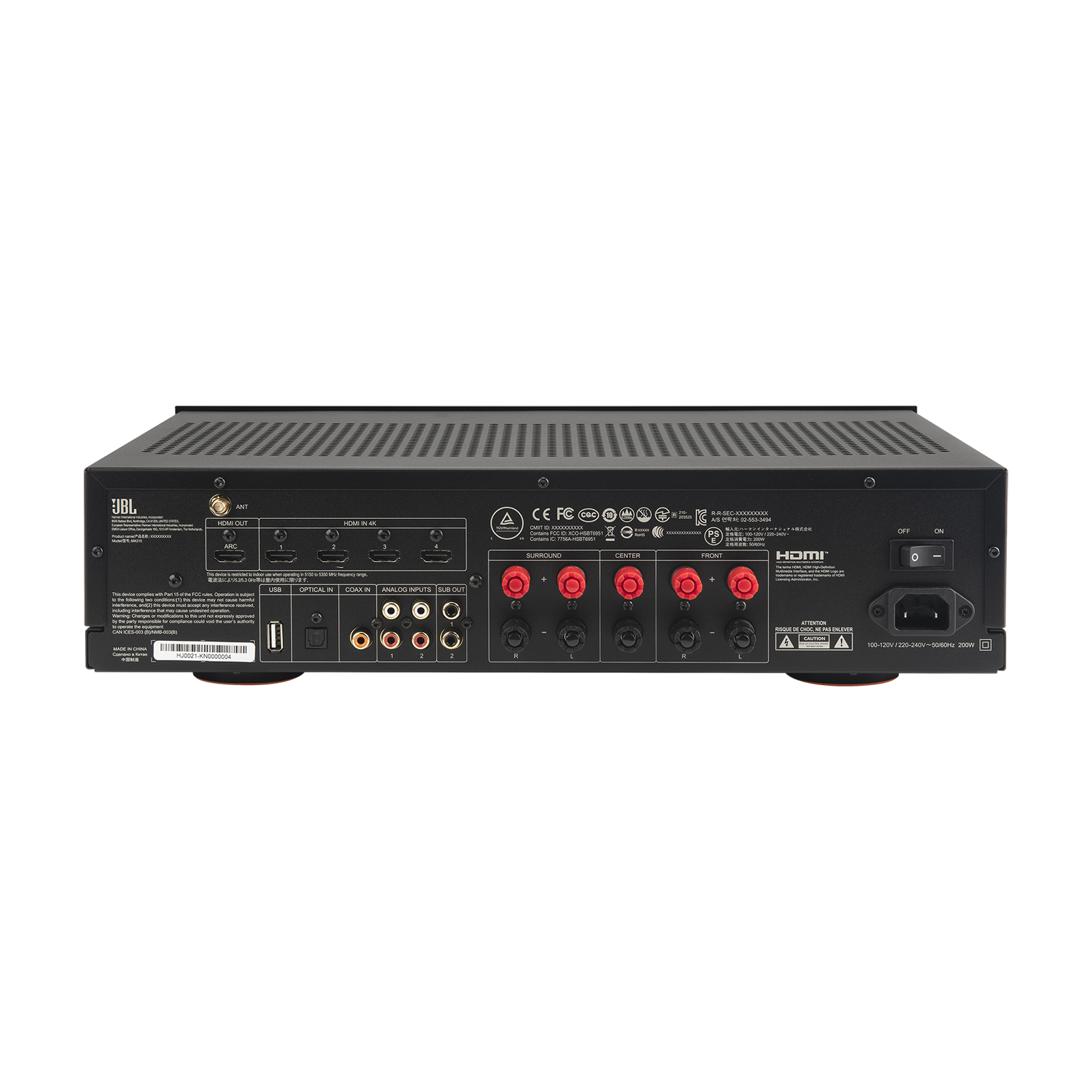

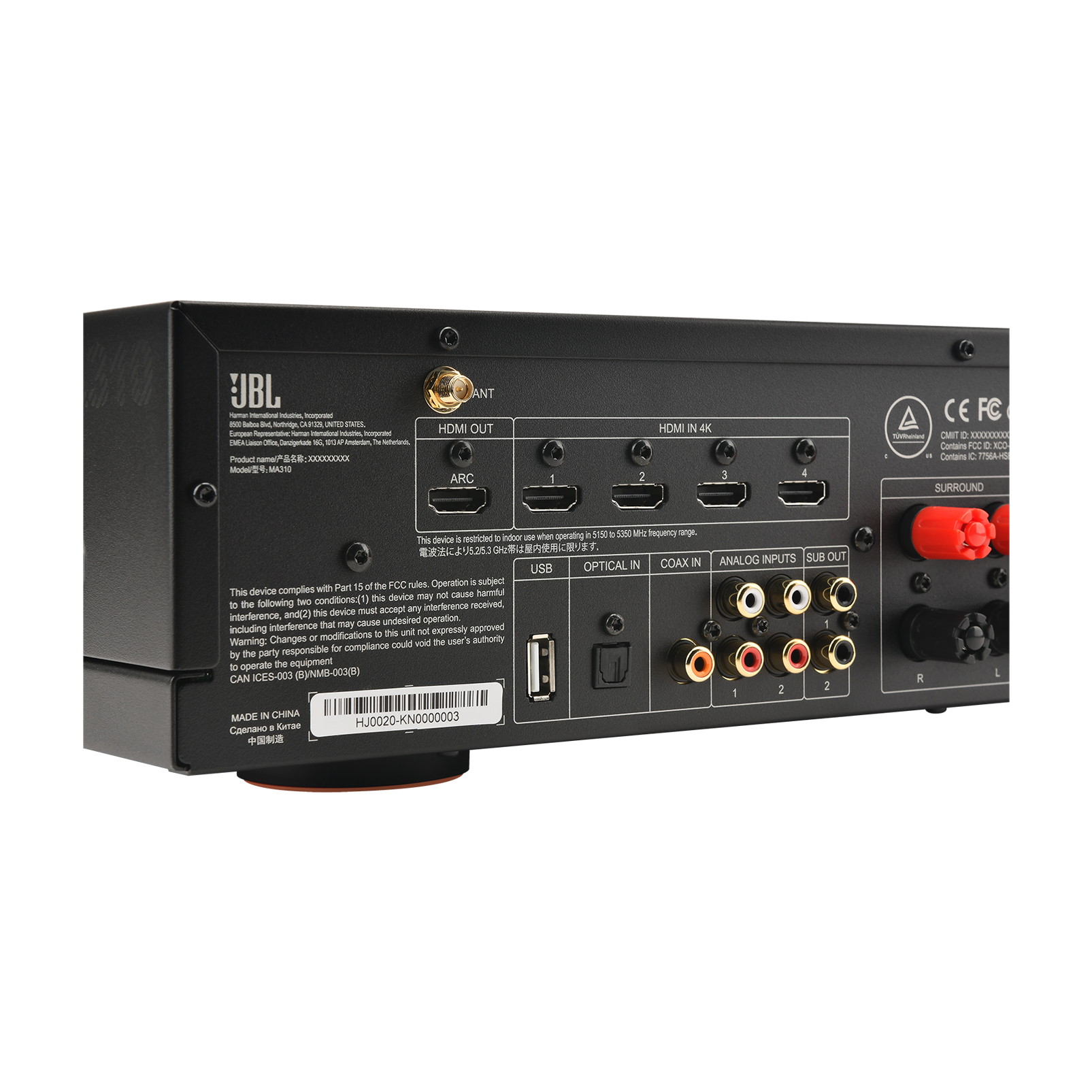

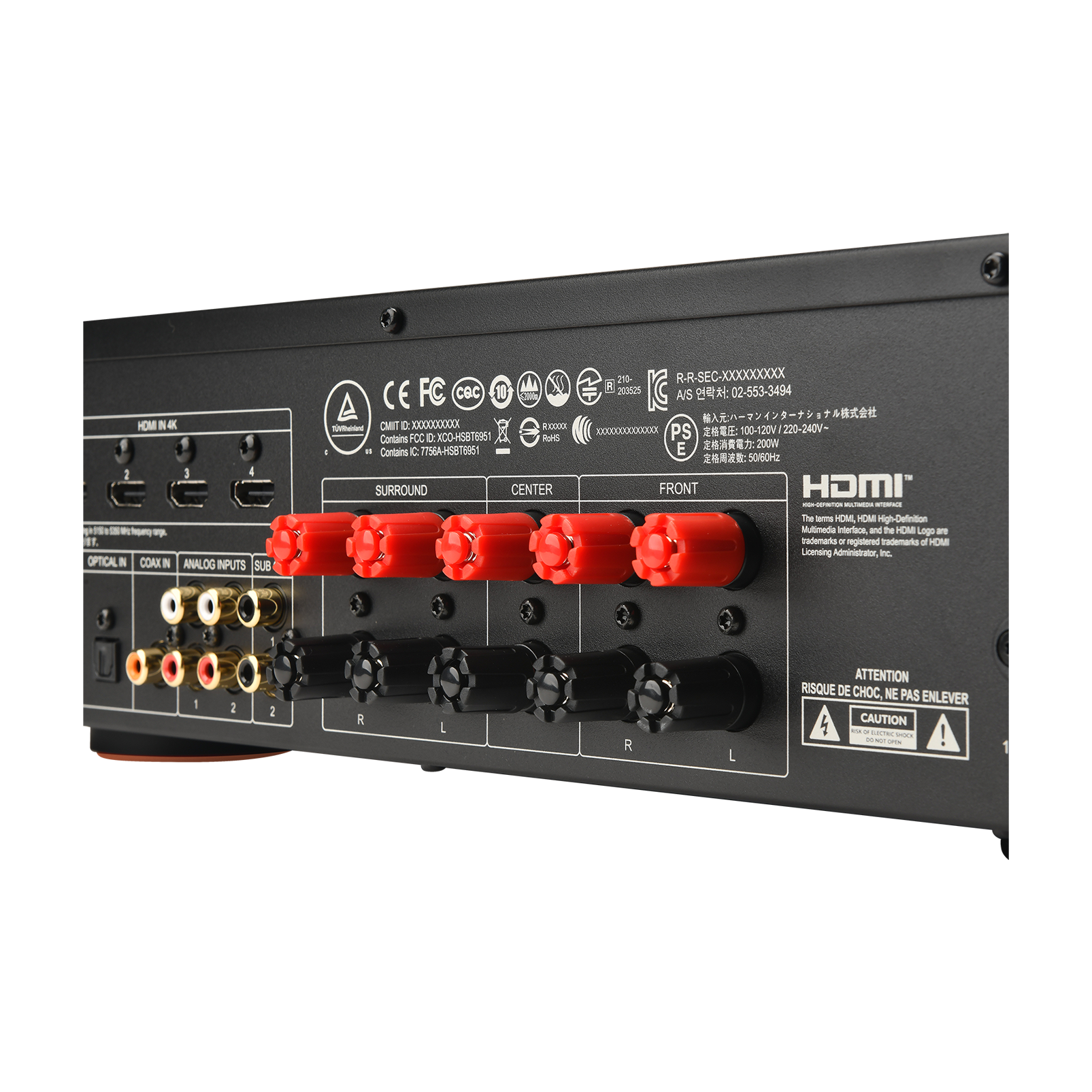

Control and Connection Specifications
- HDMI Input/Output
- 4 / 1
- Bluetooth receiver
- Yes (v5.1, Low Energy)
- Digital Audio Input
- 1 Coax, 1 Optical
- Stereo analog input
- 2 single-ended RCA
- Pre-Out (single ended RCA)
- Subwoofer 1, Subwoofer 2
