General Specifications
- HDMI eARC
- Yes
- HDMI Audio Return Channel
- Yes
- 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
- 3
- HDMI 2.1 enhanced gaming features
- Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
- HDR 10+, Dolby Vision
- Yes , Yes
- File format
File format up to 48 kHz / 320kbps WMA
- MP3 / MPEG-4 AAC
- Pure Analog
- Yes
- EZ Set EQ
- Yes
- Front channel bi-amp
- Yes
- Digital signal processing
- up to 24-bit/192kHz

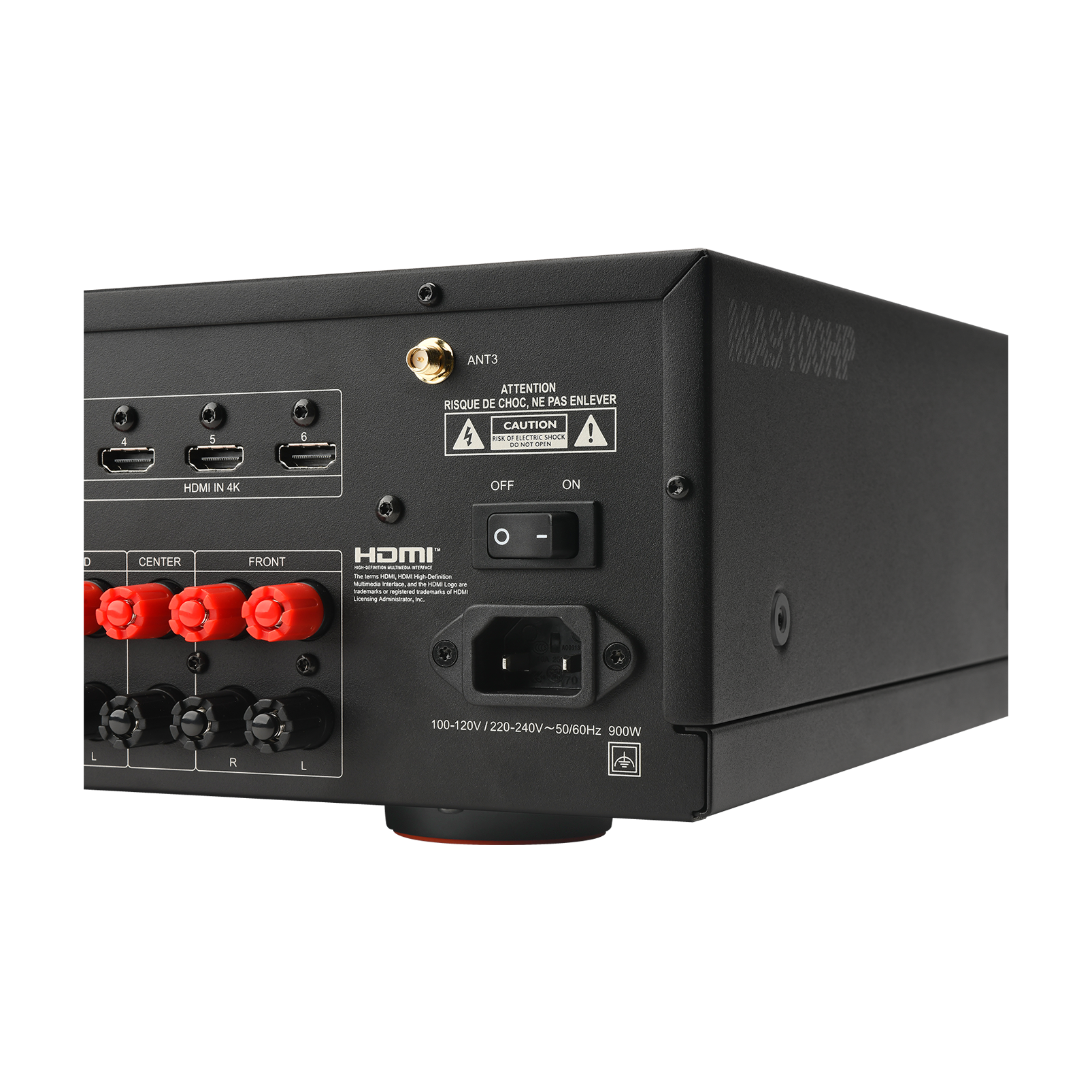

- Mains voltage
- 110 – 240V, 50–60Hz
- Max. power consumption
- 900W
- Standby power consumption
- <0.5W
Audio Specifications
- Channels
- 9.2
- FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)
- 140W
- Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
- 140 W RMS
- Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
- 240 W RMS
Dimensions
- Dimensions incl. feet and speaker terminals (H x W x D)
- 5.3 x 17.0 x 15.6 (135.0mm x 432.0mm x 396.4mm)
- Weight
- 16.8lb (7.6kg)

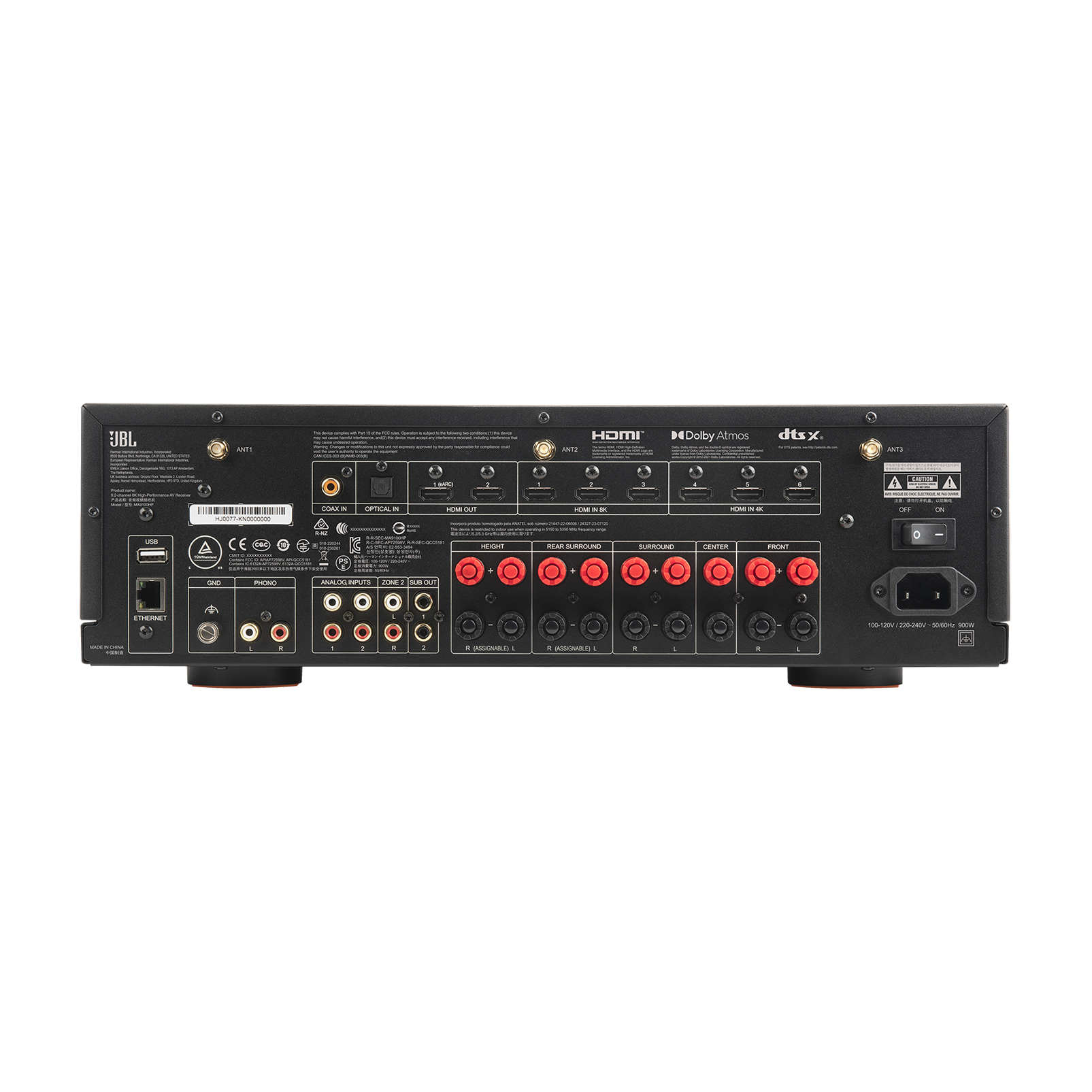

Control and Connection Specifications

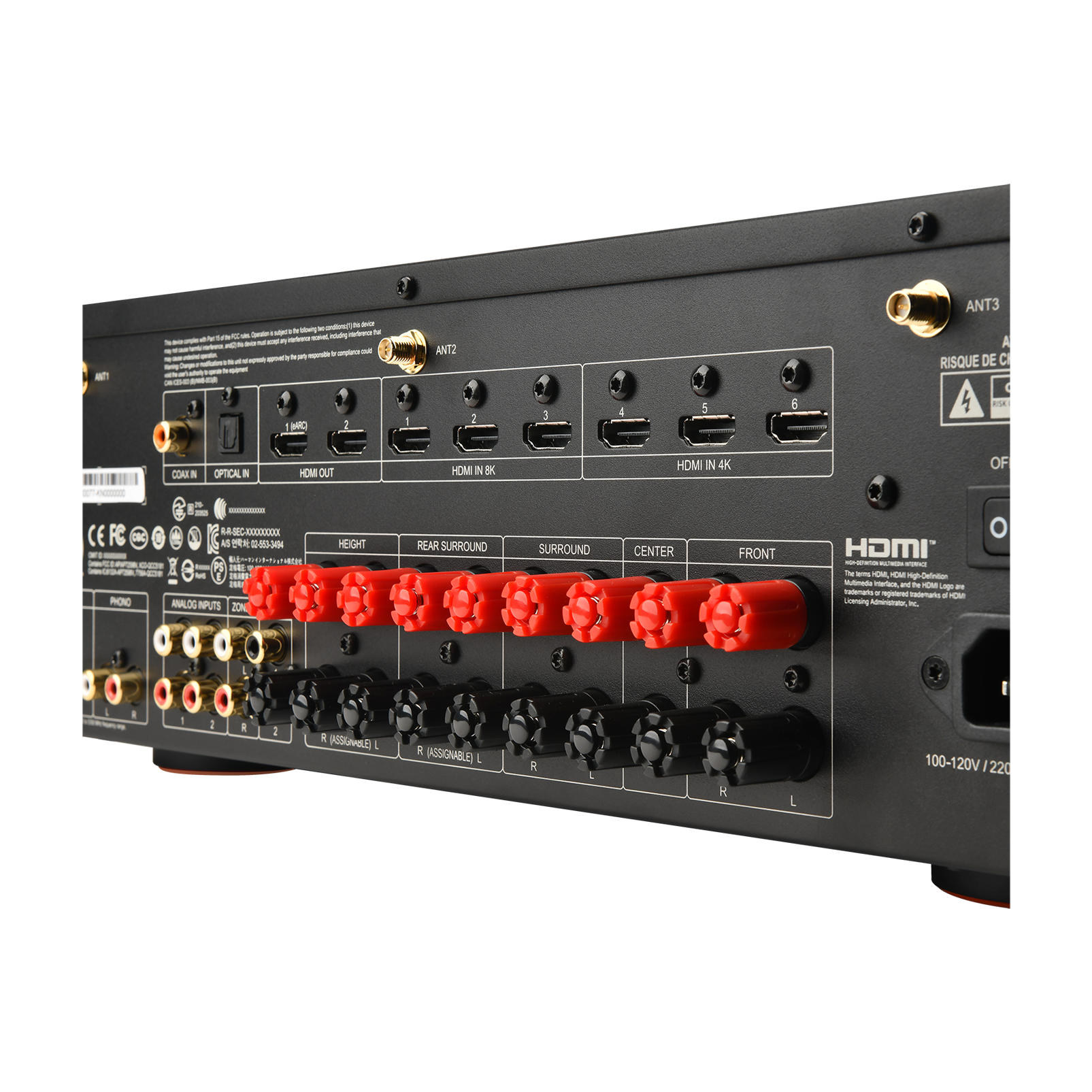

- HDMI Input/Output
- 6/ 2
- Wi-Fi
- Yes (2.4/5GHz)
- Bluetooth receiver
- Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
- Bluetooth transmit
- Yes

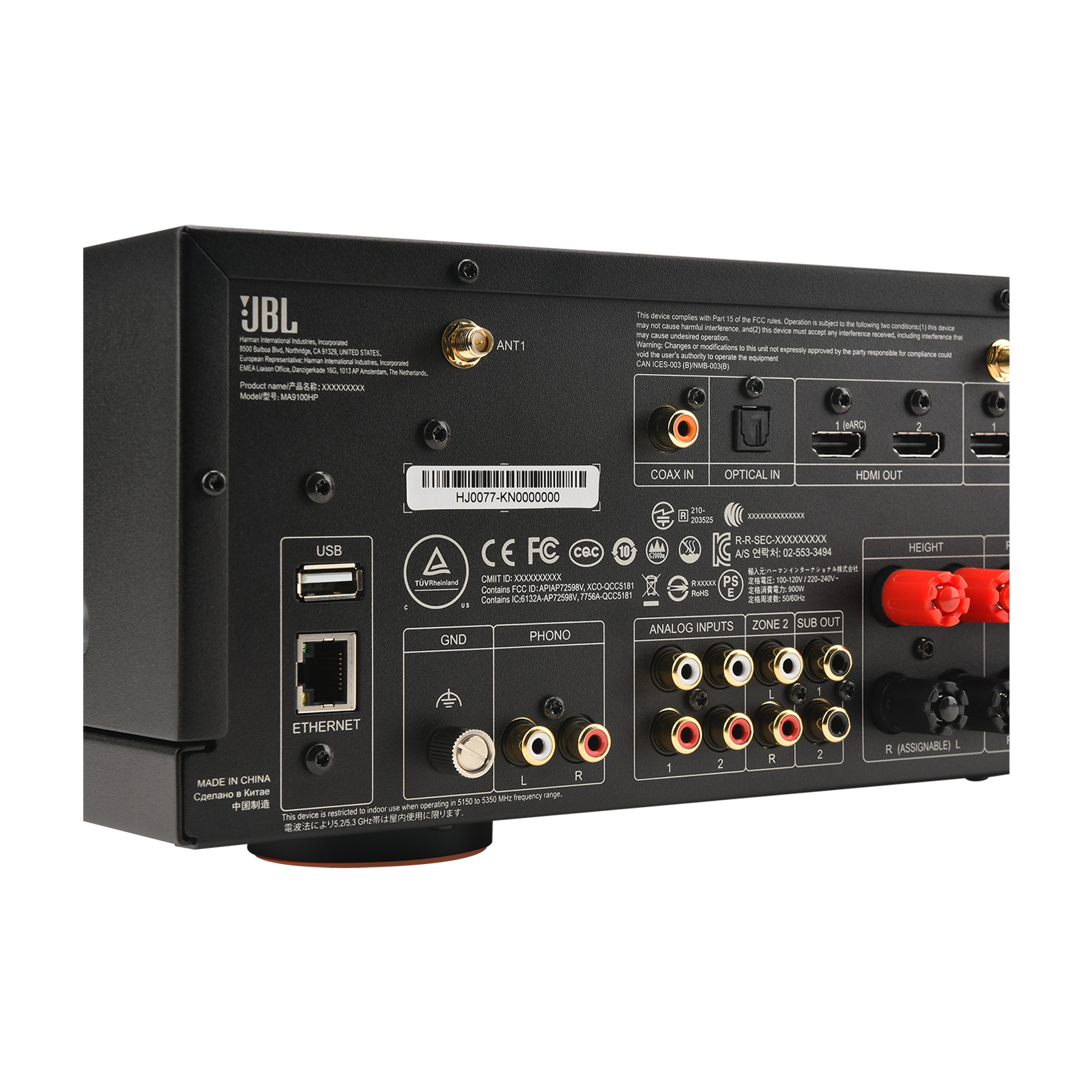

- Digital Audio Input
- 1 Coax, 1 Optical, 1 USB
- Stereo analog input
- 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
- Pre-Out (single ended RCA)
- Stereo Zone 2, Subwoofer 1, Subwoofer 2
- Ethernet Port (RJ45)
- Yes
