General Specifications

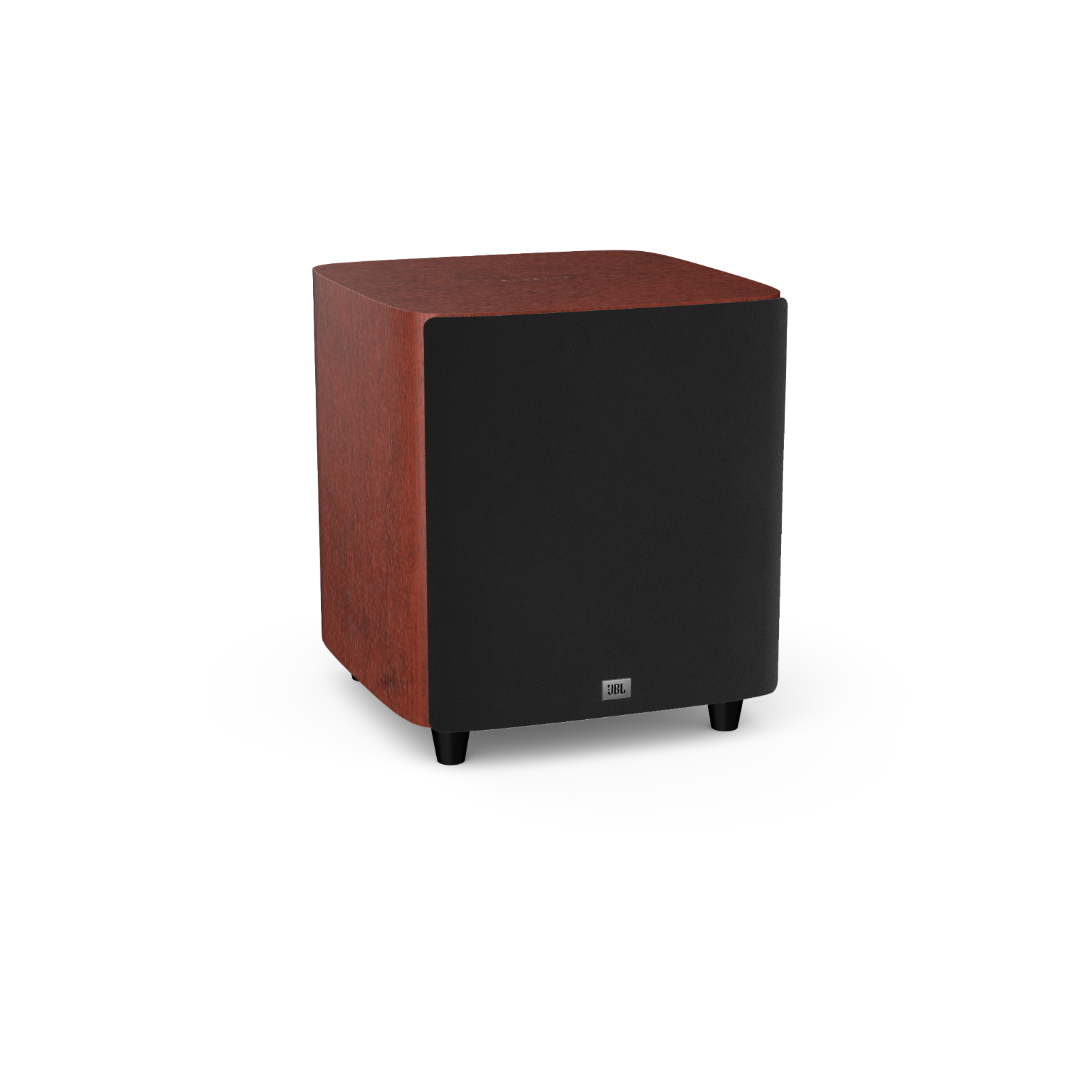

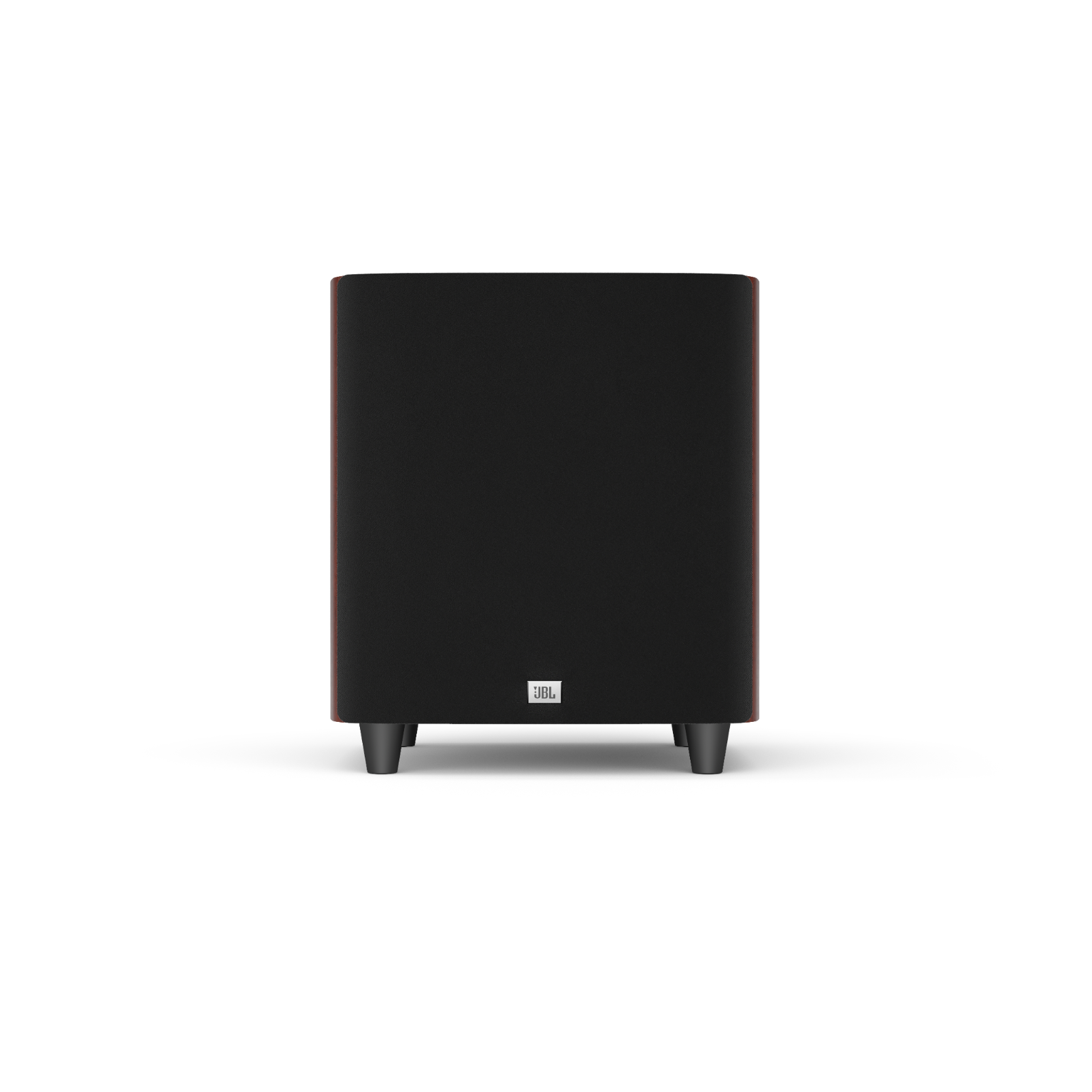

- 12 Powered sub-woofer system with 1000W amplifier
- 12 (305mm) PolyPlas Low-Frequency Woofer
- Power
- 500W RMS (1000W Dynamic)
- Frequency Response
- 28 Hz – 150 Hz
- Crossover Frequencies
- 50Hz – 150Hz (variable) 24dB/octave
- Controls
- Auto Power, Crossover, Level, Phase
- Input
- One (1) Line-Level LFE Input
- Enclosure Type
- Bass-Reflex via Bottom-Firing Tuned Port
- Power Requirement
- 120V, 60Hz (US) ; 220V-230V, 50/60Hz (EU)
- Power Consumption (Idle/Full/Power)
- <0.5W (standby)/700W/4A (max – 230V)/700W/7.2A (max – 120V)
- Dimensions (W x D x H)
- 420 x 420 x 420mm
