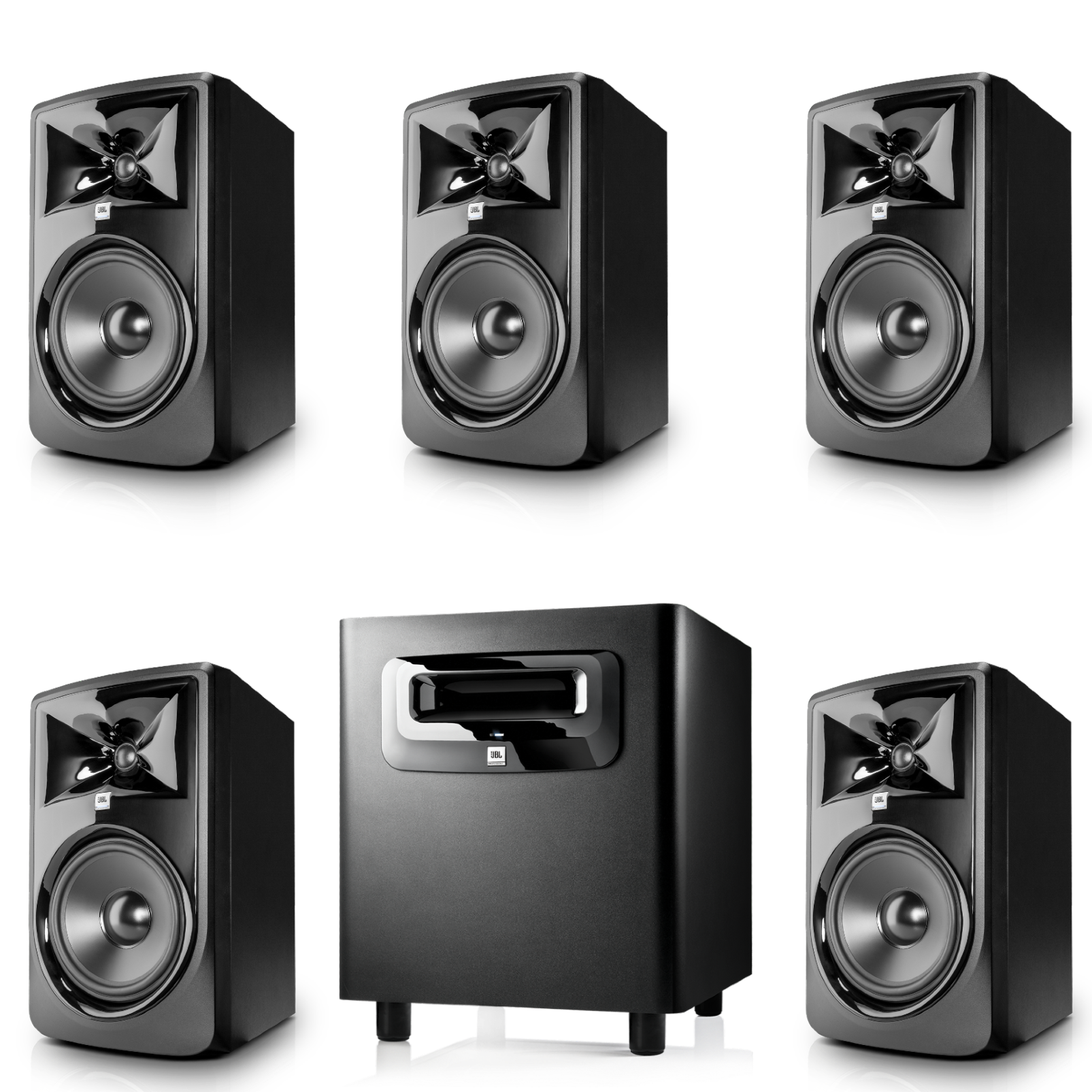

Professional Audio Packages308P MkII 8 inch Powered 5.1 Monitor System with Subwoofer
$1,561.80
Availability:
1000 in stock
General Specifications
- LF Driver Size
- 203 mm (8)
- HF Driver Size
- 25 mm (1)
- HF Driver Type
- Soft dome
- Crossover
- 1800Hz 4th order acoustic Linkwitz-Riley
- Power Configuration
- Bi-amplified
- HF Driver Power Amp
- 56 W Class D
- LF Driver Power Amp
- 56 W Class D
- Frequency Response
- 45Hz – 20kHz (±3dB)
- Frequency Range
- 37Hz – 24kHz (-10dB)
- Low Frequency Extension
- 37Hz (-10dB)
- Maximum Continuous SPL
- 102dB
- Maximum Peak SPL
- 112dB
- Maximum Peak Input Level
- +6dBV / +20.3dBu (-10dBV / +4dBu)
- System Distortion Criteria
- <10% THD at maximum output with full compressor / limiter engagement
- Electrical Distortion Criteria
- 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
- Signal to Noise Ratio
- 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
- Coverage Pattern
- 120° x 90° (horizontal x vertical)
- HF Trim Control
- -2dB, 0dB, +2dB
- Boundary EQ
Boundary EQ -3dB, -1.5dB, 0dB
- LF Shelf @ 50Hz
- AC Input Voltage
- 100 – 240VAC (±10%), 50 / 60Hz
Dimensions
- Height
- 419 mm (16.5)
- Width
- 254 mm (10)
- Depth
- 308 mm (12.1)
- Net Weight
- 8.1 kg (17.87 lbs)
Design
- Enclosure Type
- Ported
- Enclosure Construction
- 15mm MDF
- Enclosure Finish
- Matte black PVC
- Baffle Construction
- Injection-molded structural ABS
Audio Input
- Analog Input Types
- 1 x XLR female, 1 x TRS female, balanced
- Input Sensitivity
- 92dB / 1m (-10dBV Input)
