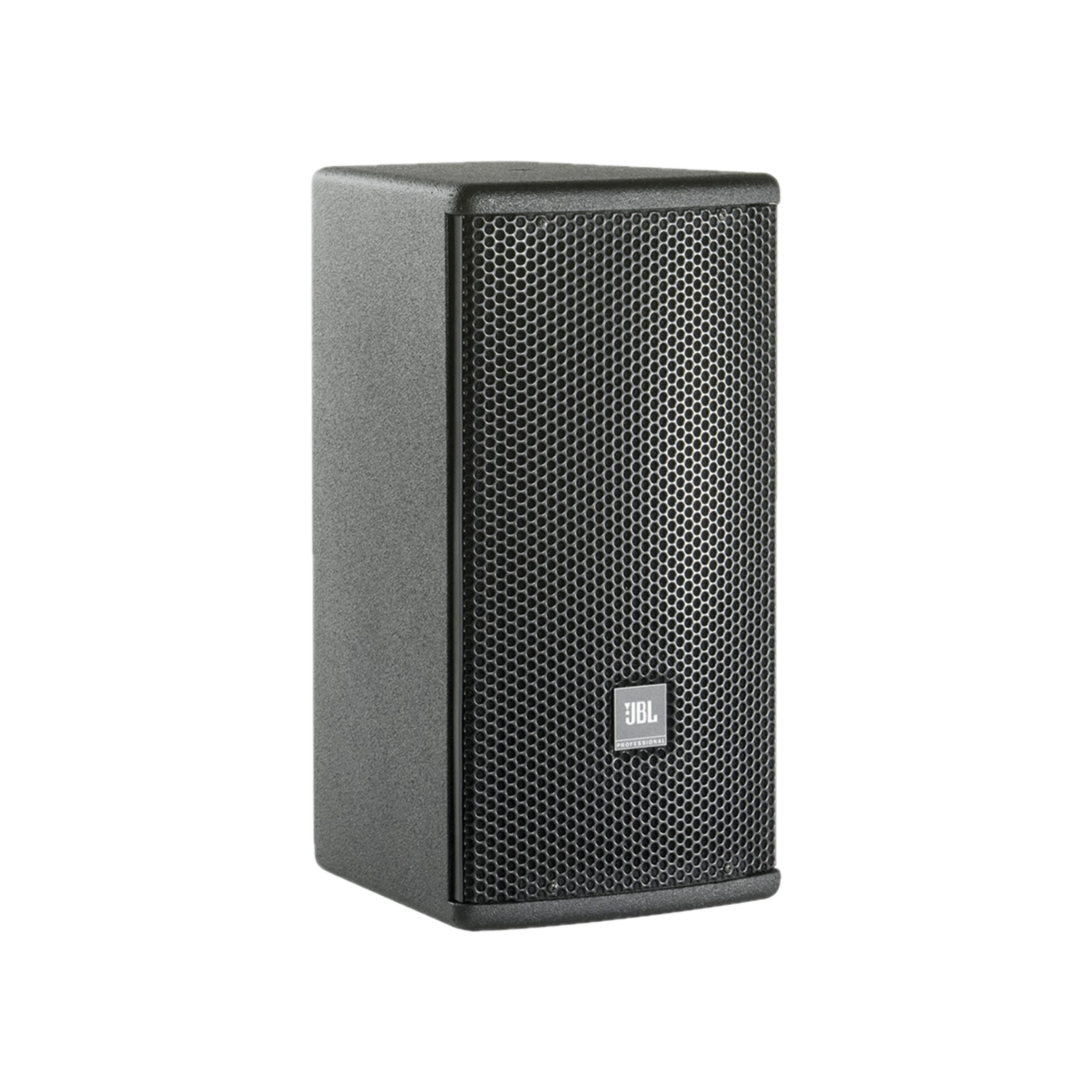

JBL AC16

General Specifications

Frequency Range (-10dB)

55 Hz -20 kHz

Frequency Response (±3 dB)

65 Hz -18 kHz

System Power Rating

250 W (AES rated) ; 160 W / 320 W / 640 W (Continuous/Program/Peak) (IEC rated)

Nominal Impedance

16 Ohms

Coverage Pattern

90° x 90°

Crossover Modes

Passive

Maximum SPL (1m)

110 dB

System Sensitivity (1w @ 1m)

90 dB SPL

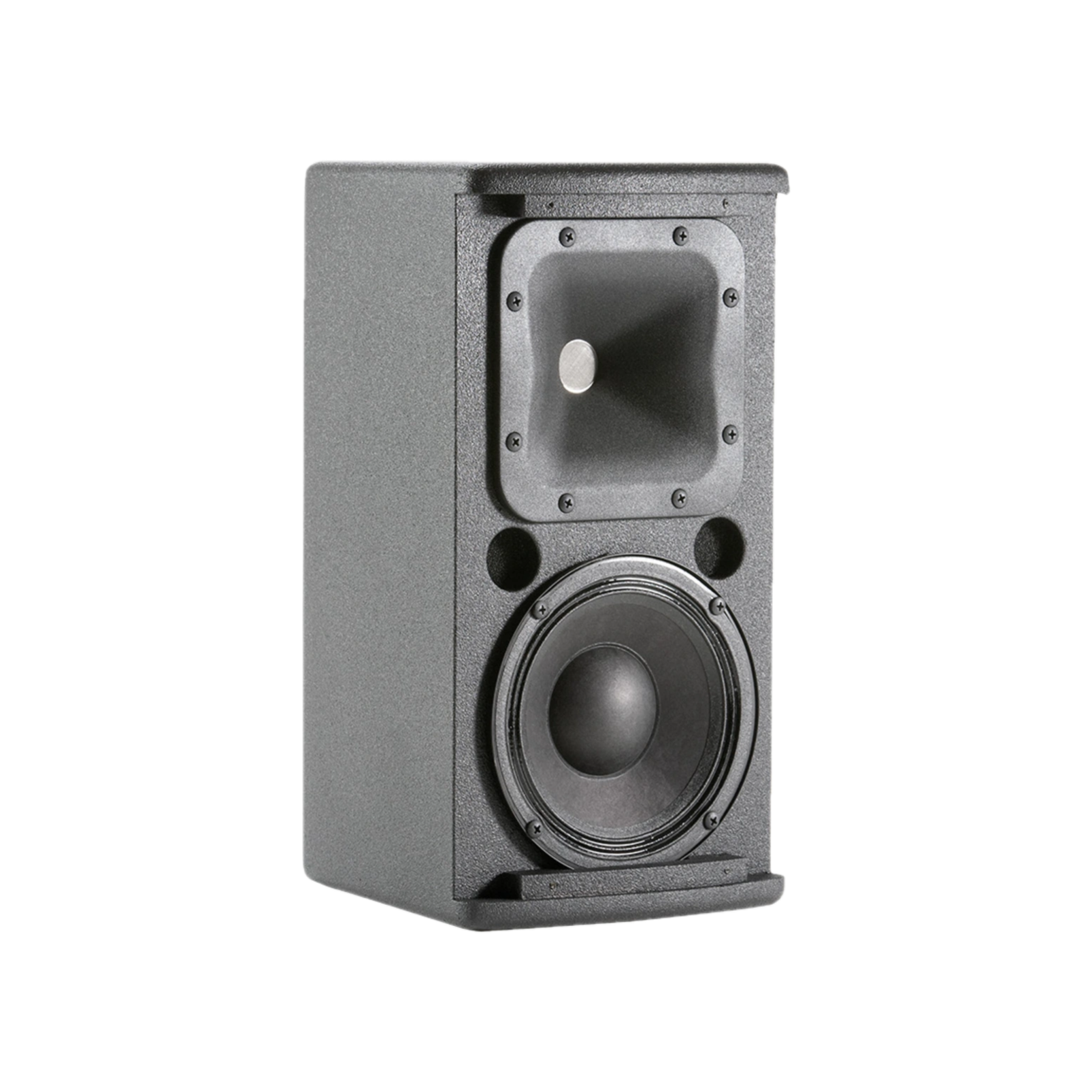

LF Driver

1 x JBL 226J, 165 mm (6.5 in) SFG? driver with 50 mm (2 in) edge wound voice coil

Nominal LF Driver Impedance

16 Ohms

HF Driver

1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil

Enclosure

12 mm and 15 mm exterior grade multi-ply hardwood plywood

Suspension Attachment

5 x M8 points; 1 top, 3 bottom, 1 rear. 4 x M6 rear for OmniMount? 30.0 and MultiMount? MM-022-BT, MM-024-BT, MM-020-CM.

Environmental

Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.

Dimensions

Dimensions (H x W x D)

381.0 x 199.4 x 226.1mm (15.0 x 7.8 x 8.9in)

Net Weight (each)

7.2 kg (15.8 lb)
