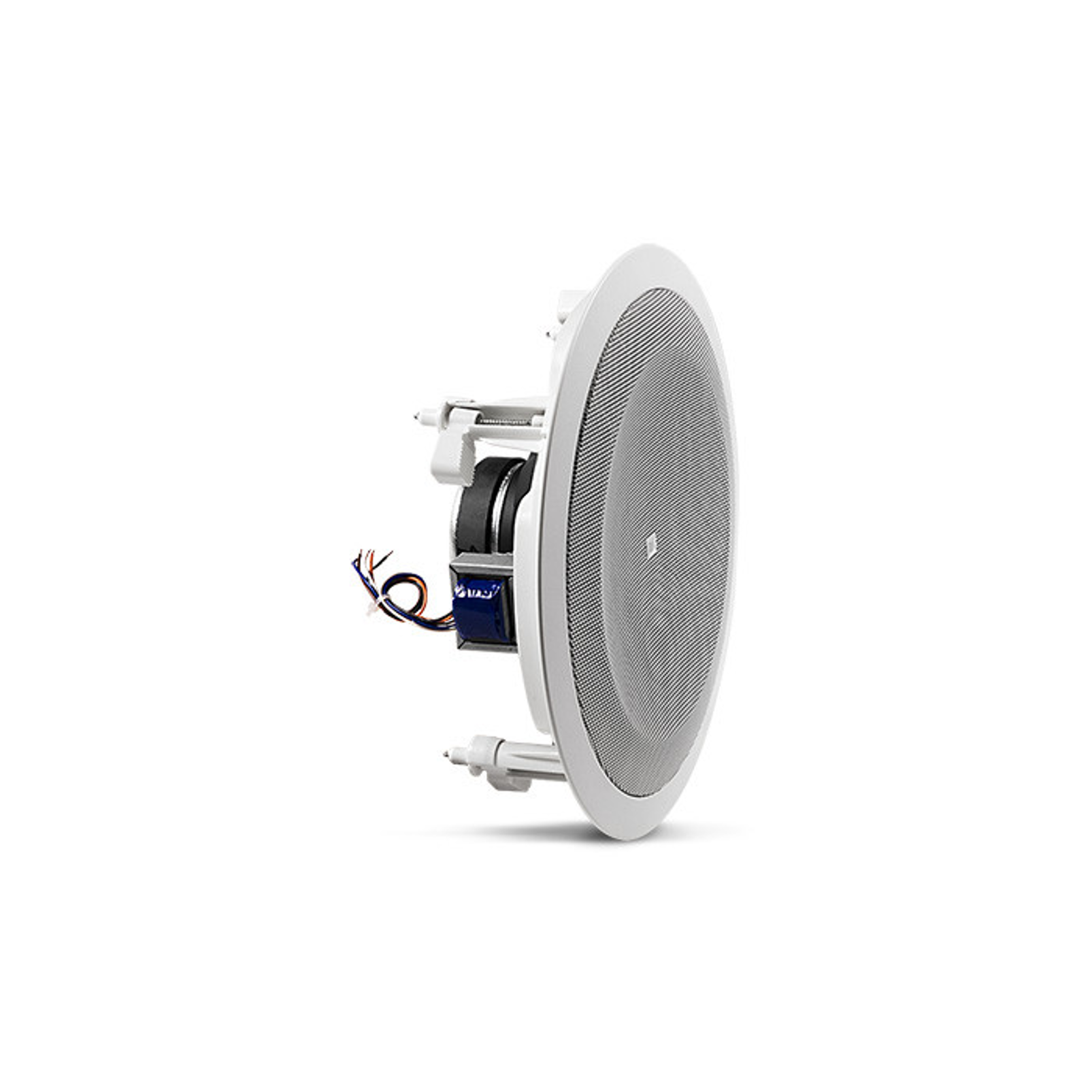

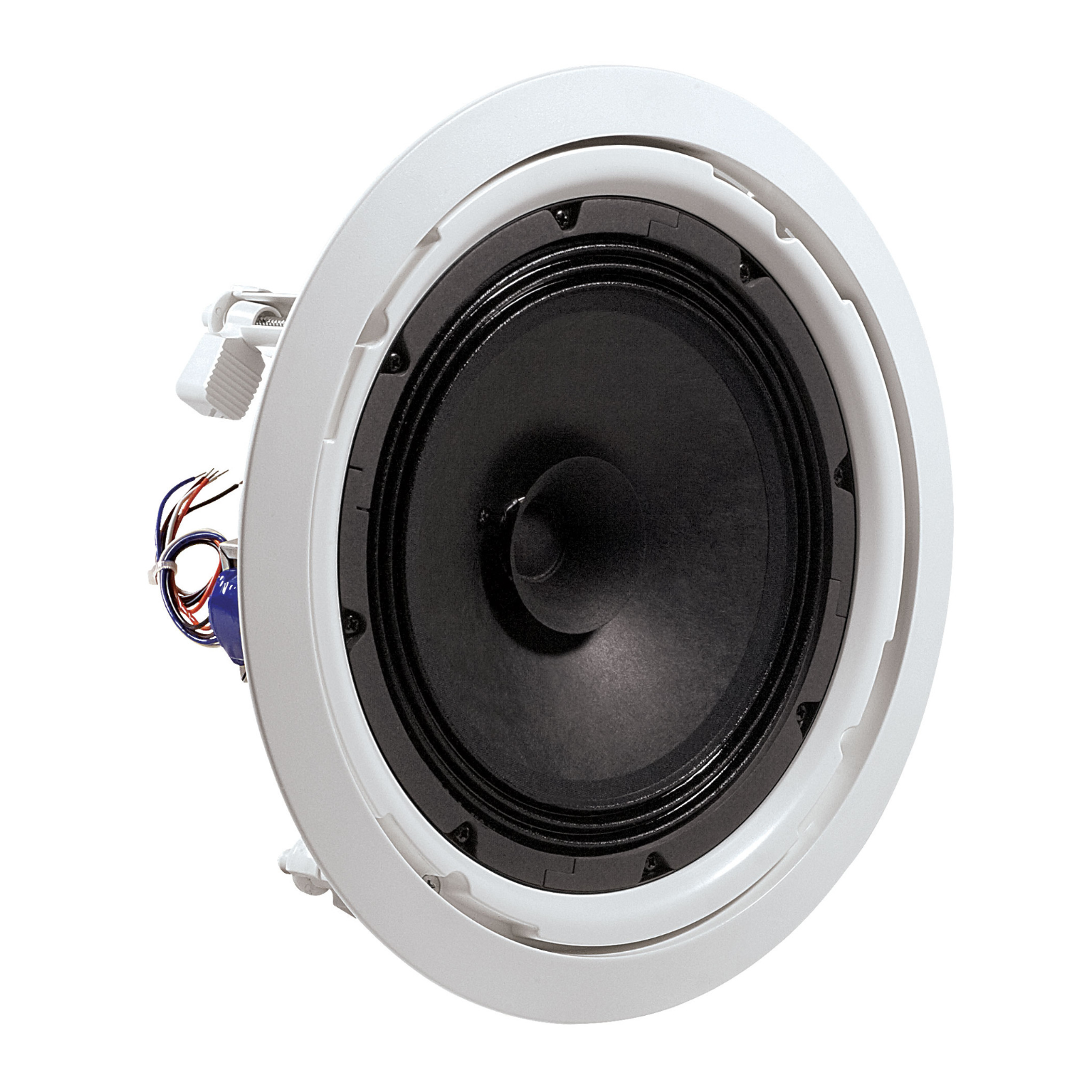

JBL 8128

General Specifications

Component

8 in (200 mm), full-range driver

Frequency Range

50 Hz – 16 kHz

Sensitivity

97 dB (1 kHz – 8 kHz), 1W, 1M

Coverage

90° conical

70V/100V Taps

6W, 3W, 1.5W (0.75W at 70V only)

Termination

Bare wires

Nominal Driver Impedance

8 ohms

Driver Power Capacity

25 W

Plenum Usage

Not intended for use in return air plenums

Included Accessories

Sculpted Grille

Optional Accessories

MTC-8124C C-ring, MTC-Rail tile rails

Dimensions

Diameter

11.3 (287mm)

Depth

4.1in (105mm)

Weight

3lb (1.4kg)

Cutout Dimension

260 mm diameter (10.1 in)
