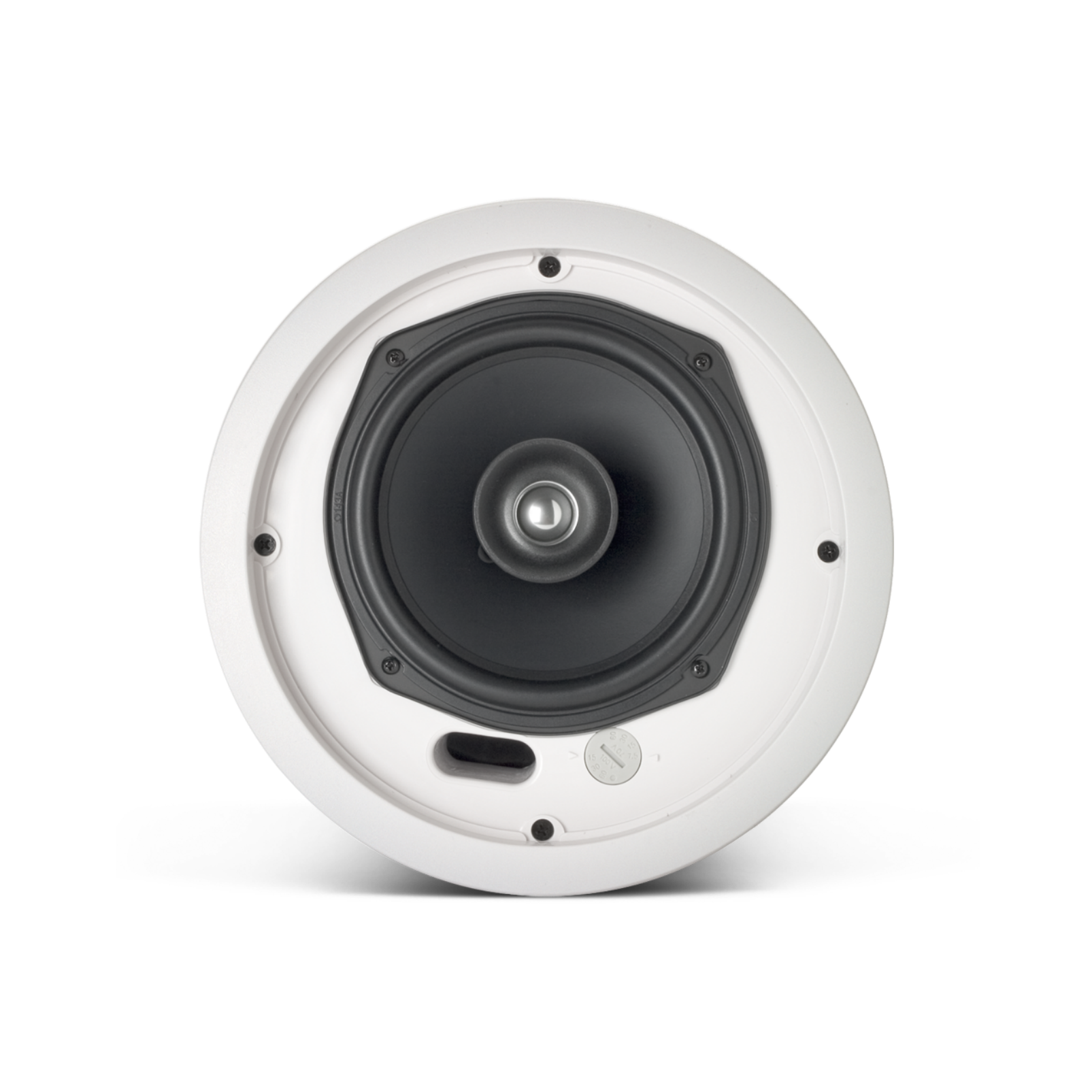

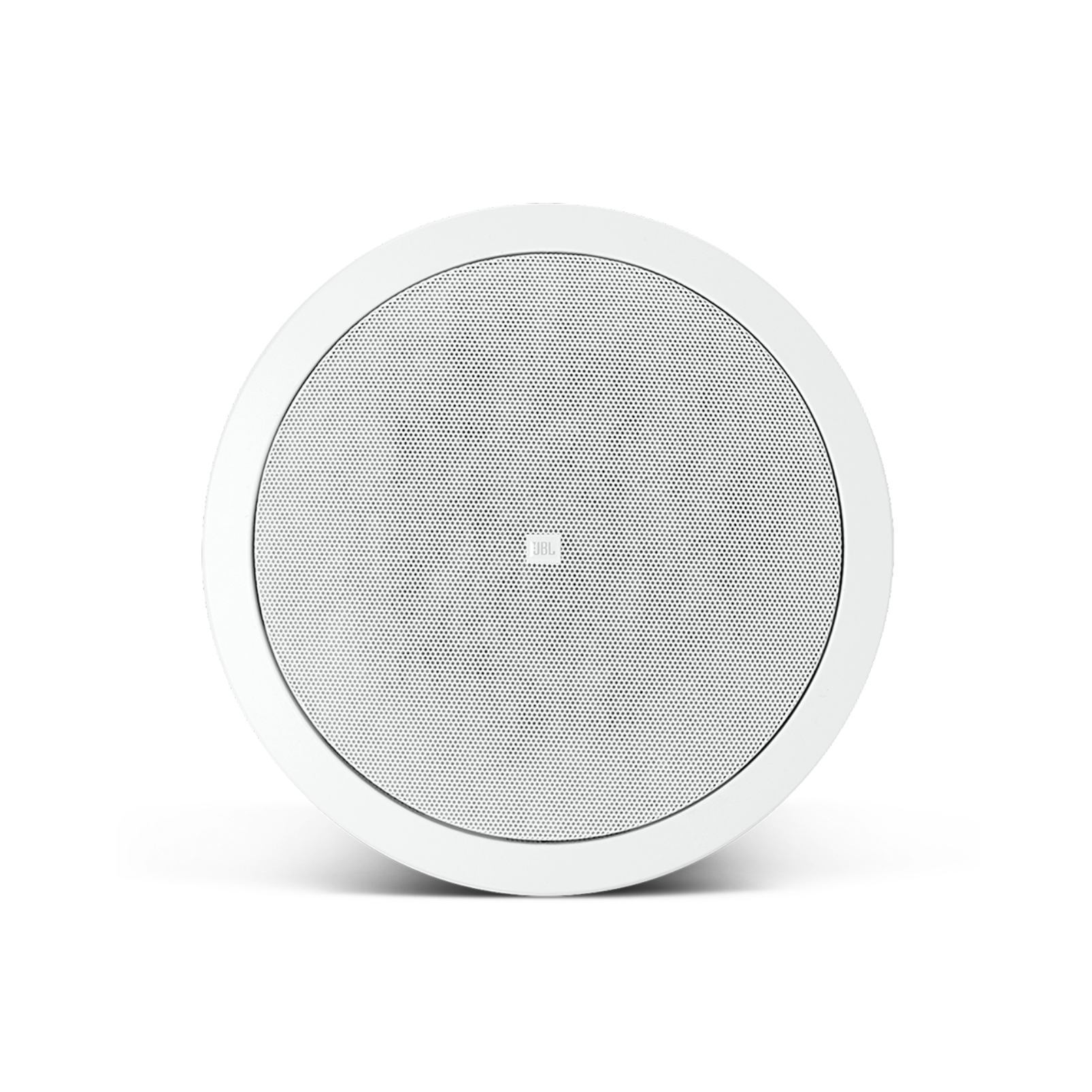

JBL Control 26CT

General Specifications

Frequency Range (-10 dB)

75 Hz – 20 kHz

Power Capacity

150 Watts Continuous Program Power ; 75 Watts Continuous Pink Noise

Nominal Sensitivity

89 dB SPL, 1W @ 1 m (3.3 ft)

Nominal Coverage Angle

110° conical coverage

Directivity Factor (Q)

5.9 averaged 500 Hz to 4 kHz

Directivity Index (DI)

4.6 averaged 500 Hz to 4 kHz

Rated Maximum SPL

107 dB @ 1 m (3.3 ft)

Transformer Taps

070V = 60W, 30W, 15W & 7.5W taps ; 100V = 60W, 30W, & 15W taps

Low Frequency Transducer

165 mm (6.5 in) Polypropelene-coated, 1 coil on aluminum former

High Frequency Transducer

19 mm (0.75 in) Titanium coated polyester

Safety Agency Rating

Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849

Included Accessories

C-shaped support backing plate ; 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) ; Cutout template ; Paint shield ; Removable locking wiring connector

Dimensions

Outside Dimensions (H x Dia)

210 x 252 mm (8.3 x 9.9 in) ; 190 mm (7.5 in) front of ceiling tile to back of backcan

Cutout Size

220 mm (8.75 in)

Net Weight (ea)

4.2 kg (10 lb)

Shipping Weight (pair)

9.7 kg (21 lb)

Design

Backcan

Formed steel

Baffle/Rim

Medium impact polystyrene, fire rated UL94V-0

Termination

Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm)
