22.5 W (90 W Peak), Cont. Pink Noise (2 hrs) ; 15 W (60 W Peak), Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)
86dB
Coverage Angle
160° conical
Maximum SPL (1m)
98 dB continuous pink noise (104 dB peak)
Nominal Impedance
8Ω

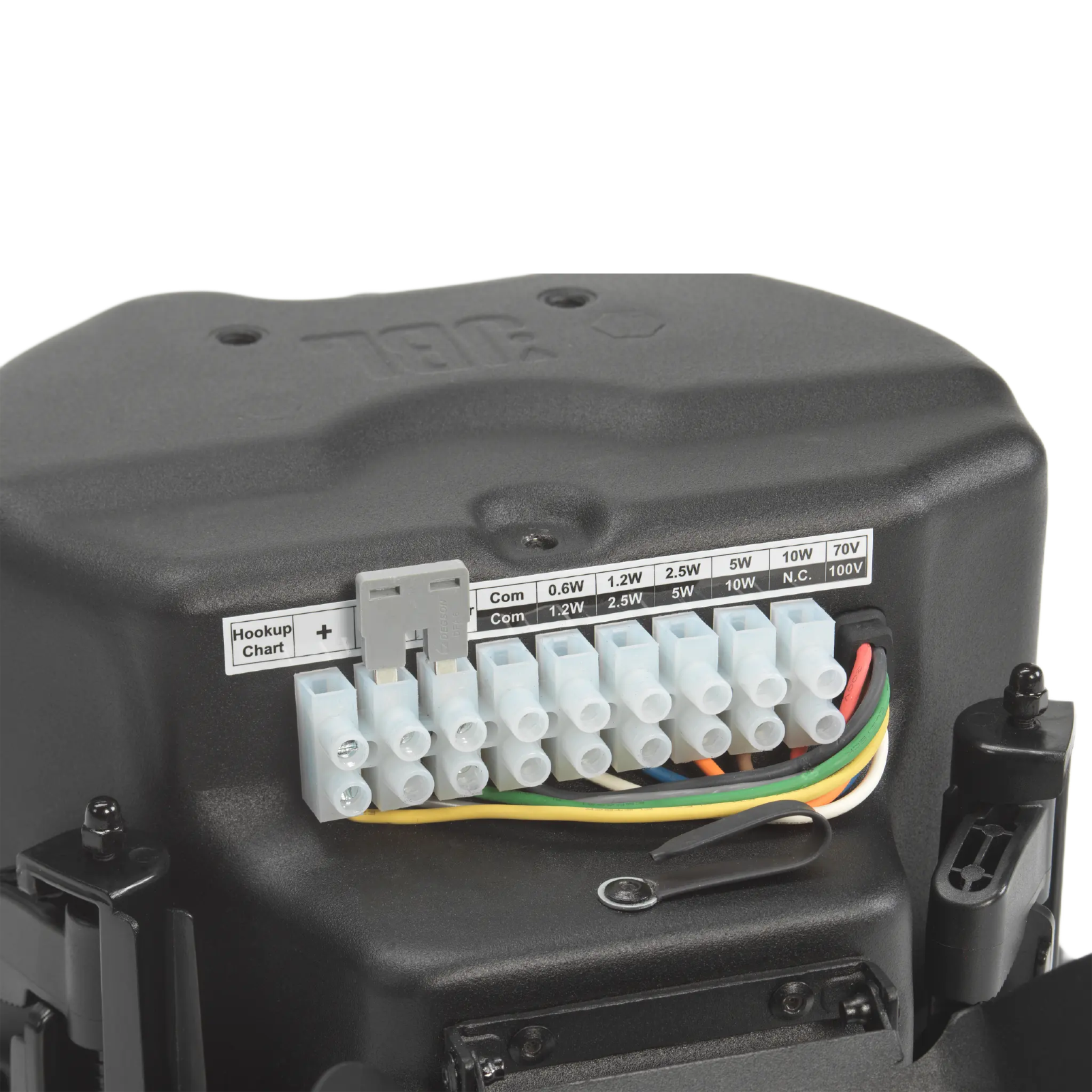

Transformer Taps
70 V = 10 W, 5 W, 2.5 W, 1.2 W & 0.6 W ; 100 V = 10 W, 5 W, 2.5 W & 1.2 W

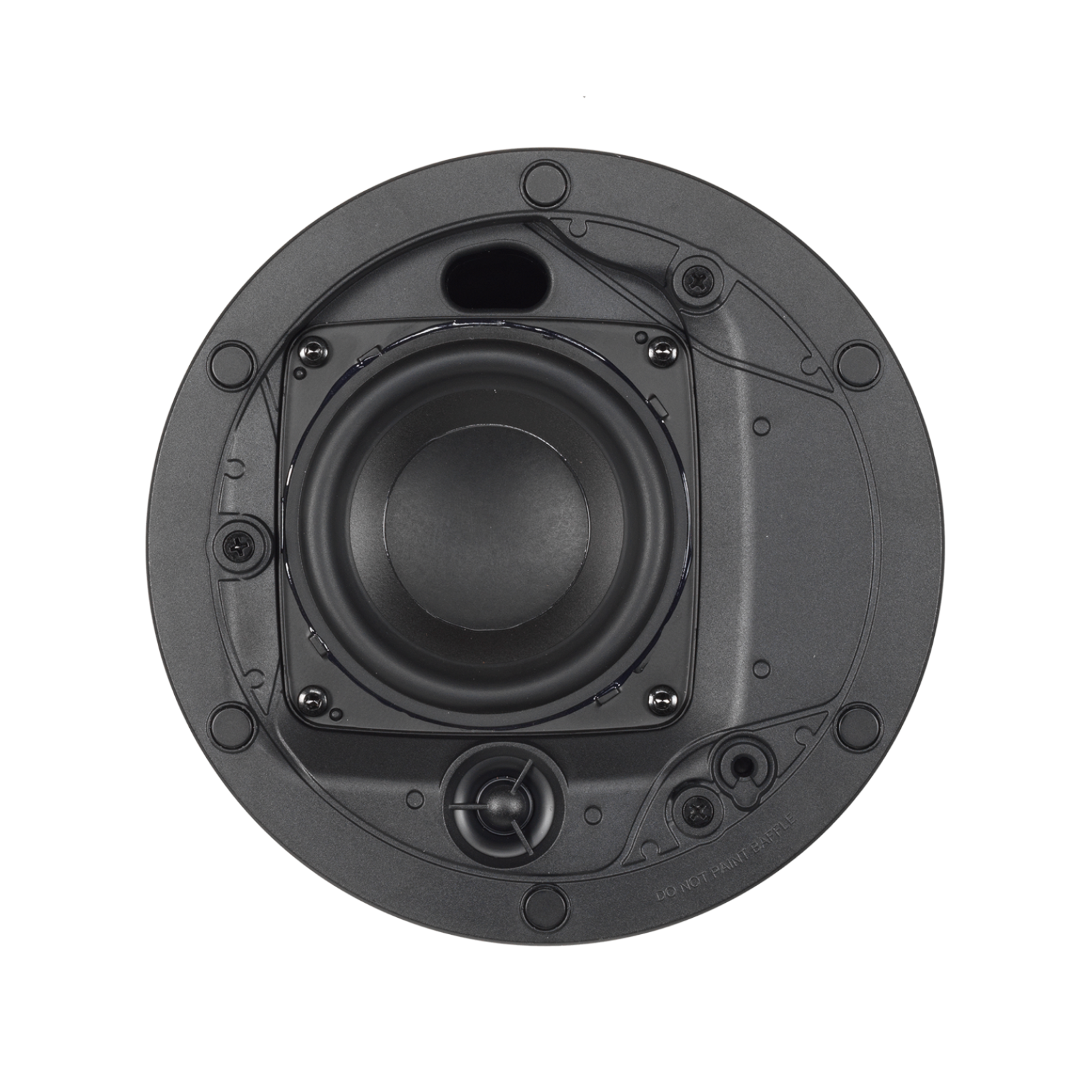

Drivers
LF = 103 mm (4 in) with PP cone and paper cup, SBR surround ; HF = 13 mm (0.5 in) PEI dome
Safety Agency Rating
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental
Environmental 0° C to 45 °C.
IP rating = IP32 per EN/IEC 60529. Operating temperature
Optional Accessories
JBL-MTC-414BG black (RAL9004) round grille ; JBL-MTC-414SG white (RAL9003) square grille ; JBL-MTC-414WG weather grille ; JBL-MTC-424NC new construction bracket ; JBL-MTC-424MR mud-ring construction bracket ; JBL-MTC-48TRX4 tile rail for 4′ x 4′ ceiling tiles
Color
Stock grille is White (RAL9003), paintable
Dimensions
Ceiling Cutout Size
168 mm (6.6 in)
Dimensions
114 mm (4.6 in) H x 203 mm (8.1 in) dia. ; 105 mm (4.2 in) from bottom of ceiling tile to top of backcan
