JBL Control 47C/T

General Specifications

Frequency Range

55 Hz – 20 kHz

Power Rating

IEC System Long-Term Ratings (low-Z direct) – 150 Watts Continuous Program Power ; 75 Watts Continuous Pink Noise (300W peak), hrs

Sensitivity

91 dB (1kHz – 16 kHz)

Transformer Taps

60W, 30W, 15W (7.5W at 70V only)

Coverage Angle

120° conical, constant directivity

Impedance

8 ohms (in bypass mode)

LF Driver

165 mm (6.5 in)

HF Driver

25 mm (1 in)

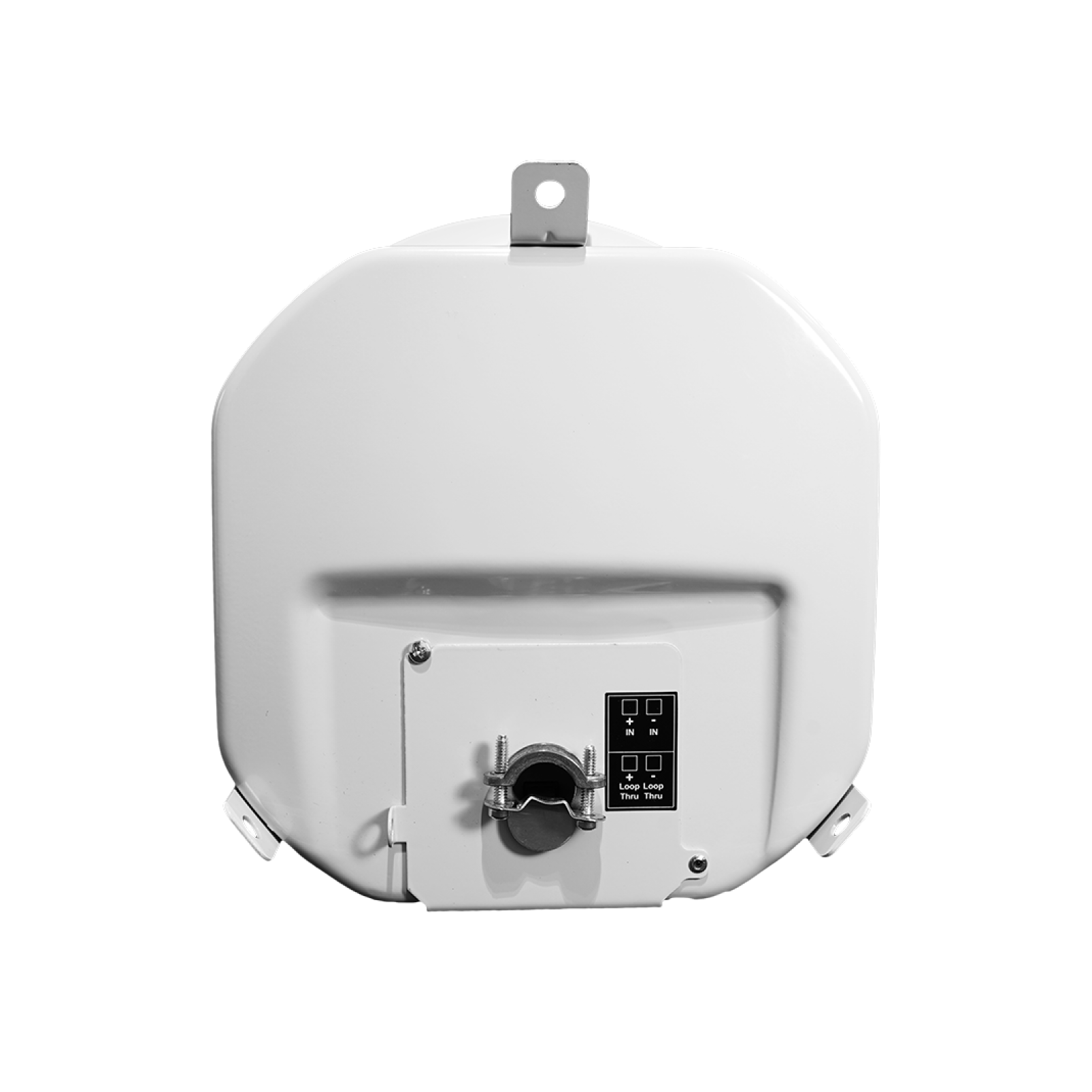

Input Connectors

Two removeable locking 2-pin connectors with screwdown terminals

Included Accessories

C-rings, tile rails, paint shield, cutout template, Grille

Suspension Tabs

Three, on top panel

Maximum SPL (1m)

110 dB (low-impedance, 116 dB peak) ; 109 dB (top 70V/100V tap)

Safety Agency

Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

Backcan

Formed steel (included blind-mount)

Baffle/Rim

ABS baffle with UL94-V0 flame class fire rating

Ceiling Cutout Size

282 mm Diameter (11.1 in) (cardboard cutout template included)

Optional Accessories

MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket

Plenum Usage

Yes, backcan included

Dimensions

Dimensions (Diameter x Depth)

305mm Diameter x 259mm Depth (12.0 in x 10.2 in)
