General Specifications
- Frequency Response (-10 dB)
- 75 Hz – 17 kHz
- Frequency Range (±3 dB)
- 110 Hz – 16 kHz
- Power Capacity
- 75 Watts Continuous Pink Noise Power (with 300 Watts peaks) ; 150 Watts Continuous Program Power
- Nominal Sensitivity
- 93 dB
- Nominal Coverage Angle
- 75° (+15°/-20°)
- Directivity (Q)
- 10.4
- Directivity Index (DI)
- 9.8 dB
- Rated Maximum SPL @ 1m
- 112 dB continuous pink noise, 118 dB peak
- Rated Impedance
- 8 ohms
- Transformer Taps
- 70V = 60W, 30W, 15W & 7.5W ; 100V = 60W, 30W, 15W
- Transformer Insertion Loss
- 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
- LF Driver
- 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
- HF Driver
- 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former

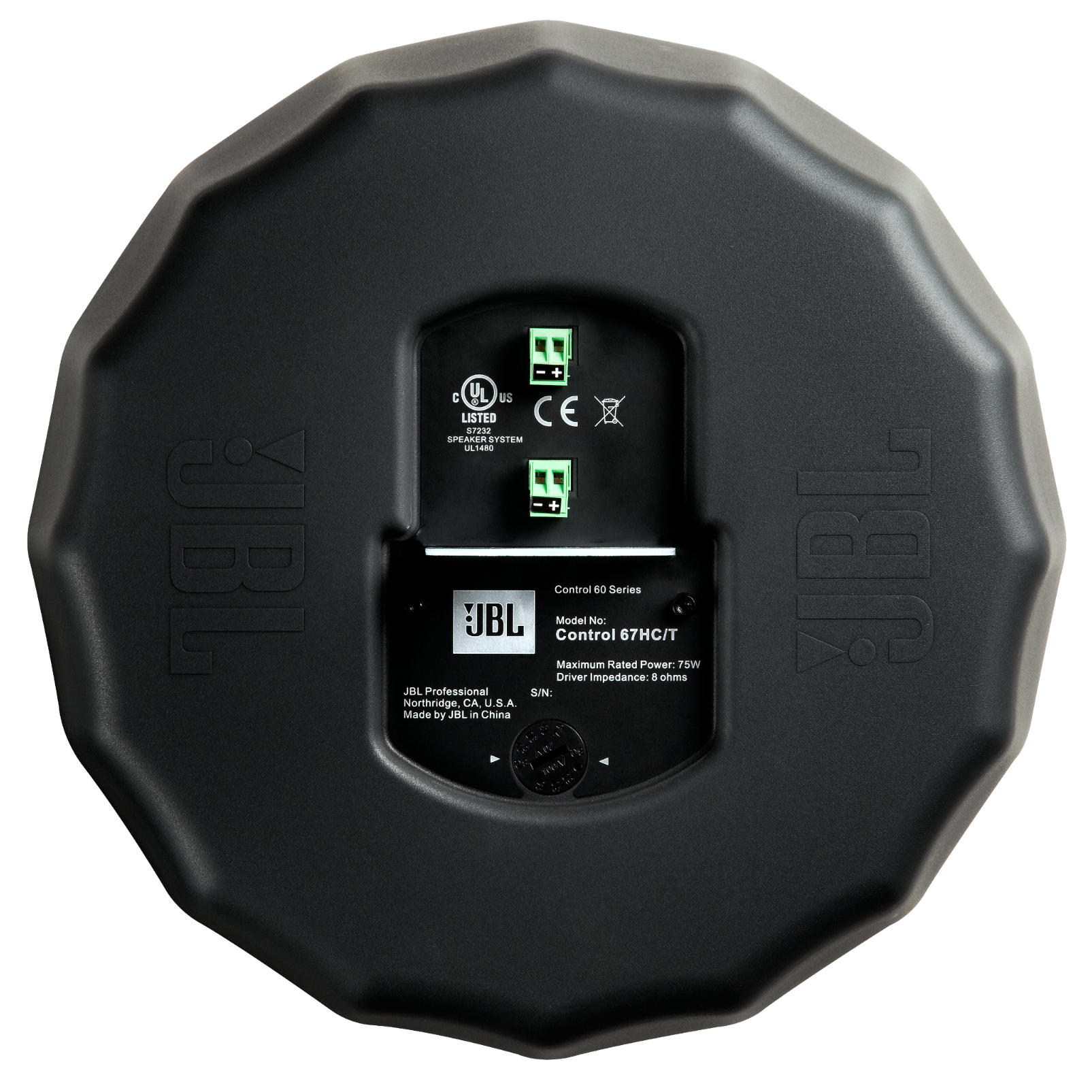

- Termination
- Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
- Suspension
- Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple? brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
- Safety Agency Ratings
- Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple?-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
- Included Accessories
- Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
- Optional Accessories
- MTC-PC60HC top panel / terminal cover
Dimensions
- Diameter
- 333 mm (13.1 in)
- Depth
- 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
- Net Weight (ea)
- 5.9 kg (13 lbs)
- Shipping Weight (pair)
- 14.1 kg (31 lbs)
Design
- Enclosure Material
- High impact polystyrene
- Grille
- Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
- Environmental
- Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
- Finish
- Available in black or white. Paintable.
