100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs
Sensitivity
88 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL (1m)
Maximum SPL (1m) 108 dB (peaks of 114 dB) 60 W Tap
Direct 8Ω
Crossover Network
1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
Impedance
8 ohms

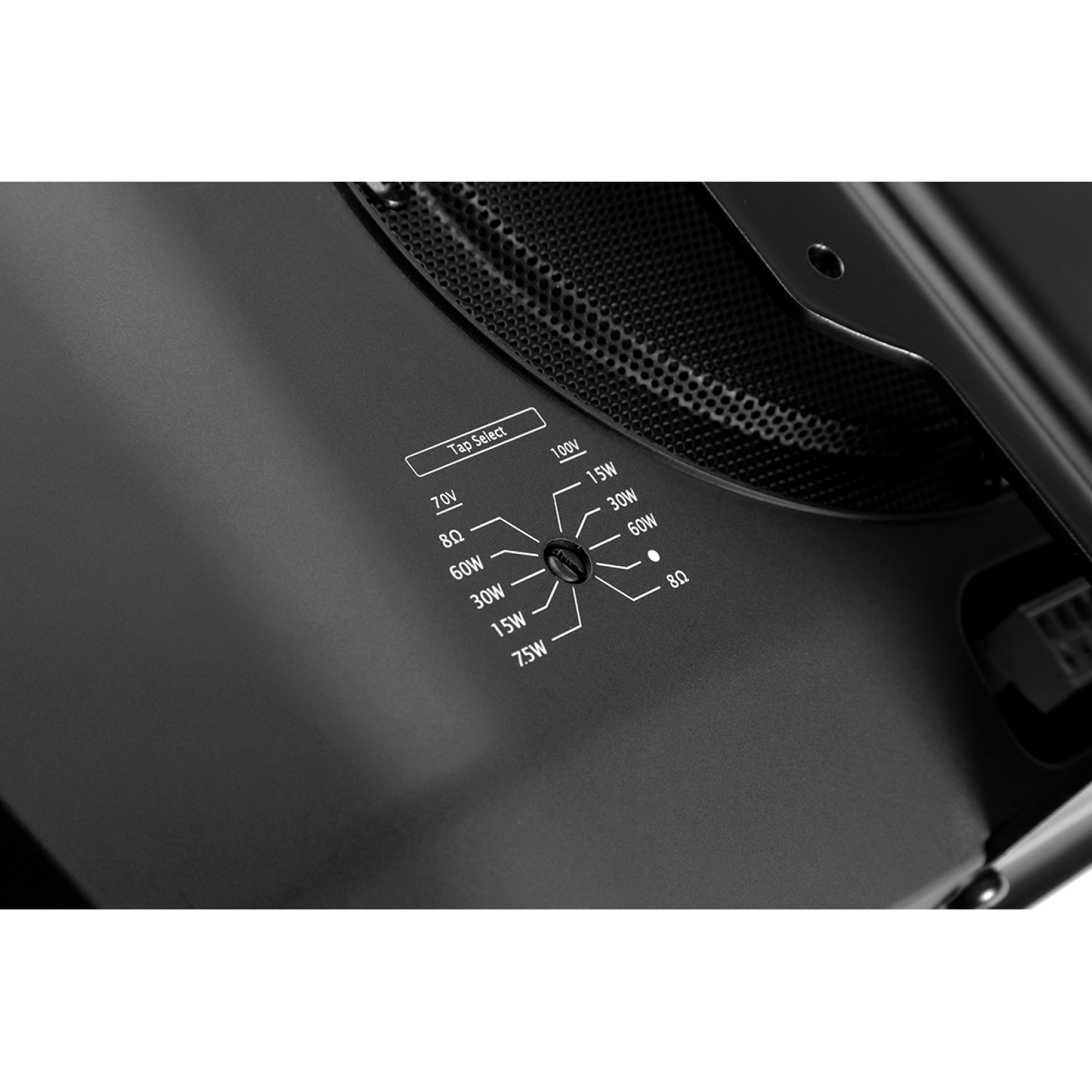

Transformer Taps
70V = 60W, 30W, 15W, 7.5W ; 100V = 60W, 30W, 15W

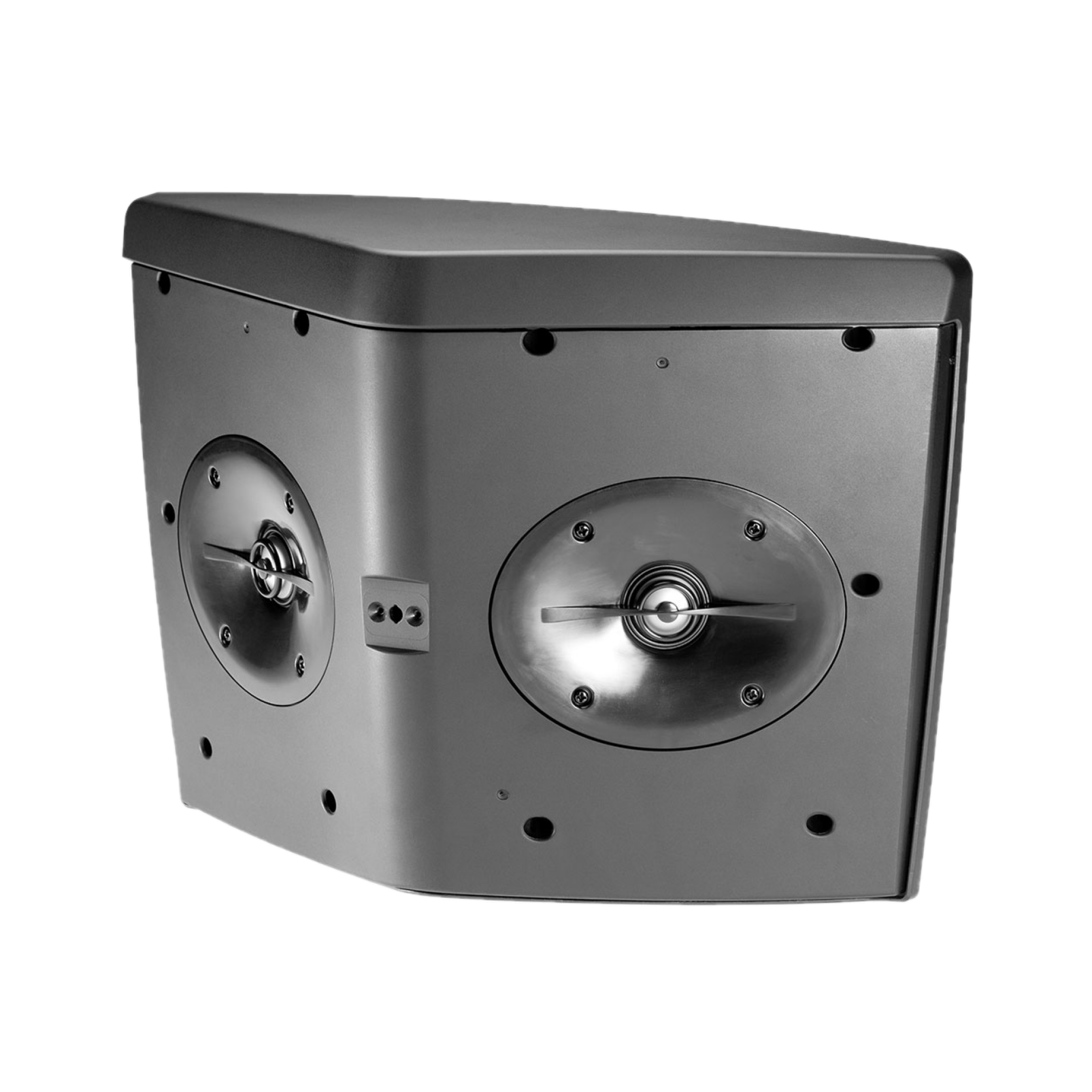

Drivers
LF = CMMD? ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil. ; HF = Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
Enclosure
Fiberglass-reinforced ABS

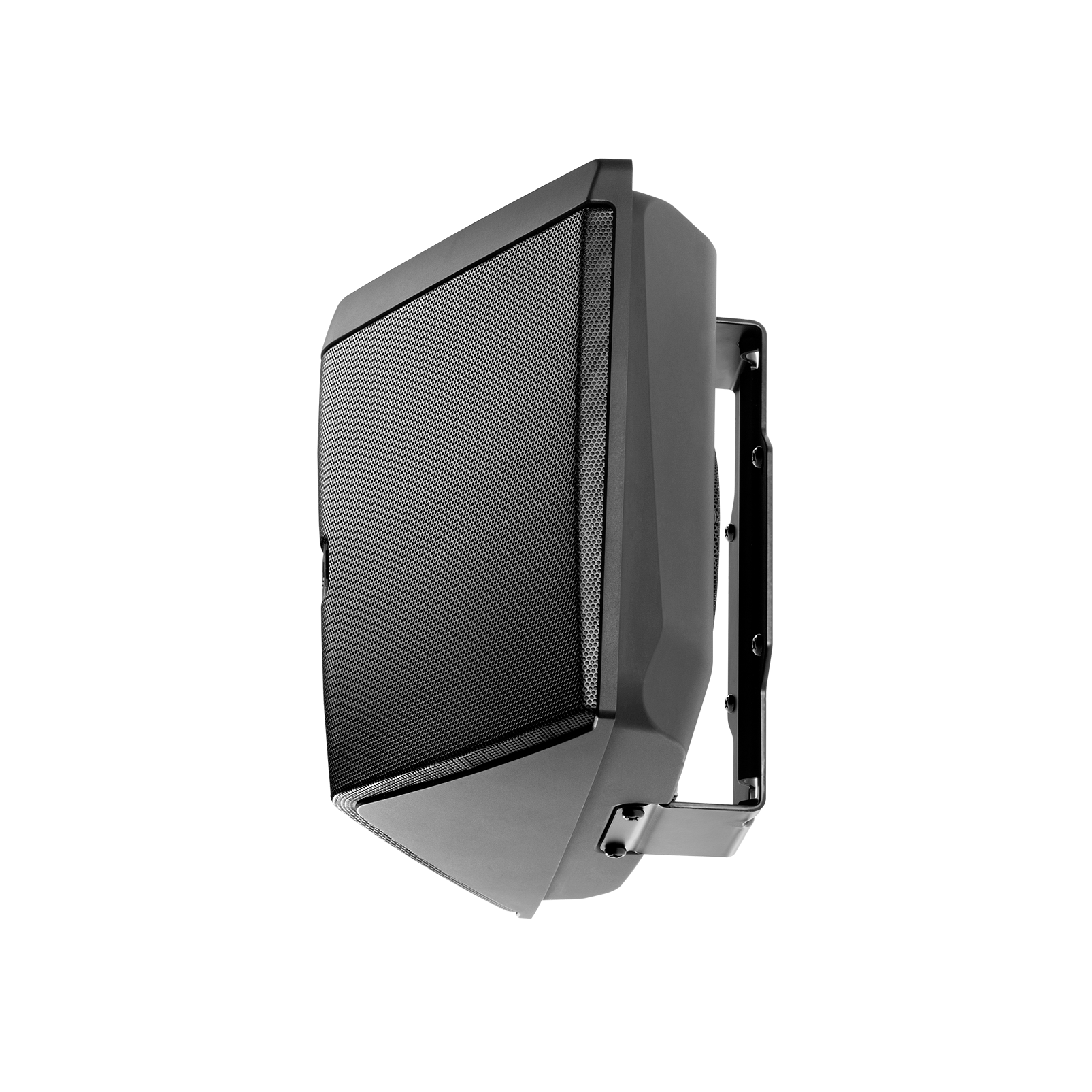

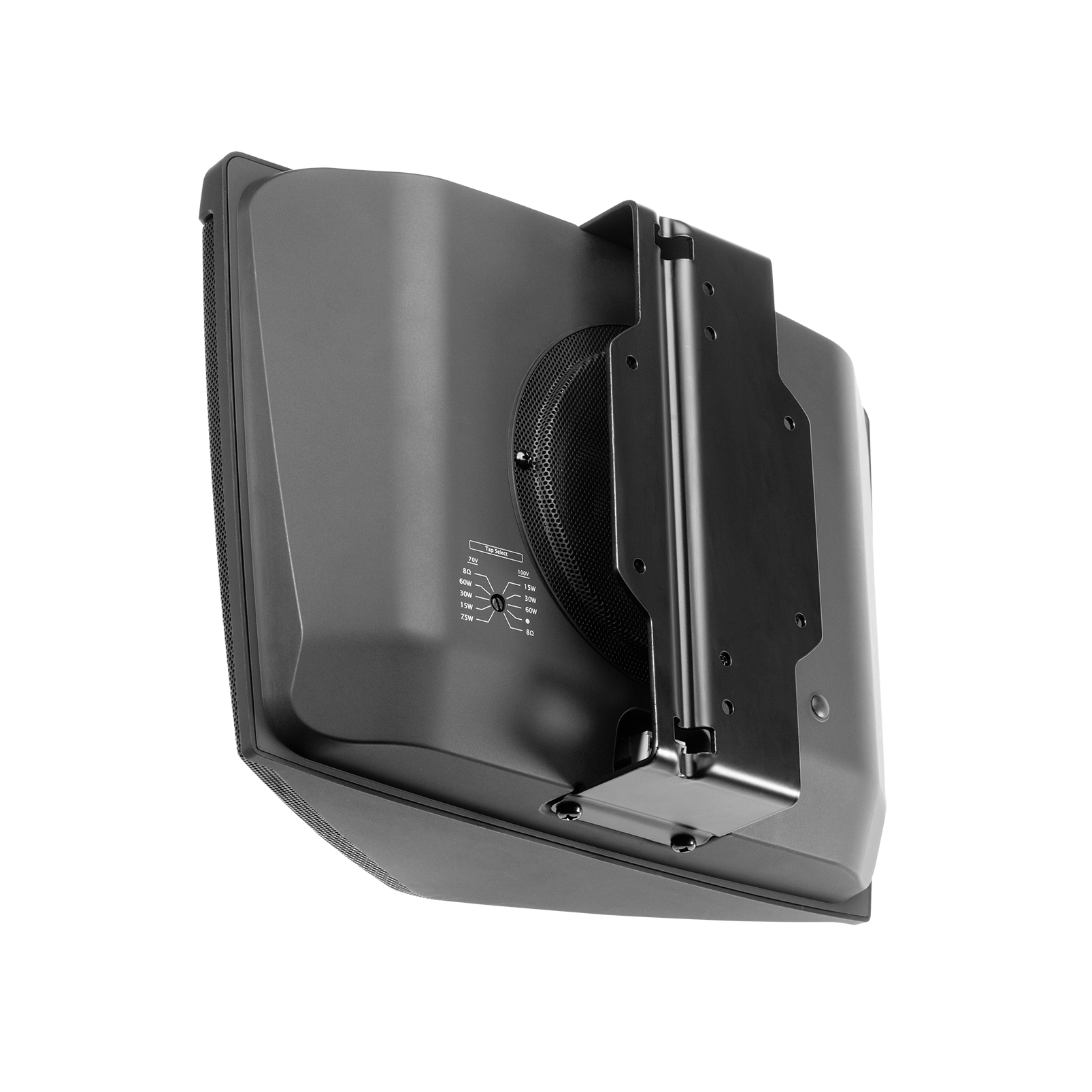

Attachment
Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
Grille
Aluminum grille, painted to match cabinet color.
Input Connectors
Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm).
Outdoor Capability
IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
Included Accessories
U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel.
Mounting Hardware
Included wall-mount bracket.
Dimensions
Dimensions (H x W x D)
362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.
