General Specifications
- Frequency Range (-10dB)
- 50 Hz – 20 kHz
- Frequency Response (±3 dB)
- 68 Hz – 18 kHz
- Coverage Angle
- 180°H x160°V
- Directivity Factor (Q)
- 5.4 (1 k – 16 kHz)
- Directivity Index (DI)
- 7.2 dB (1 k – 16 kHz)
- System Power Rating (IEC)
- 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs
- Sensitivity
- 88 dB (Ave. 80 Hz – 20 kHz)
- Maximum SPL (1m)
Maximum SPL (1m) 108 dB (peaks of 114 dB) 60 W Tap
- Direct 8Ω
- Crossover Network
- 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
- Impedance
- 8 ohms
- Transformer Taps
- 70V = 60W, 30W, 15W, 7.5W ; 100V = 60W, 30W, 15W
- Drivers
- LF = CMMD? ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil. ; HF = Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
- Enclosure
- Fiberglass-reinforced ABS
- Attachment
- Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
- Grille
- Aluminum grille, painted to match cabinet color.

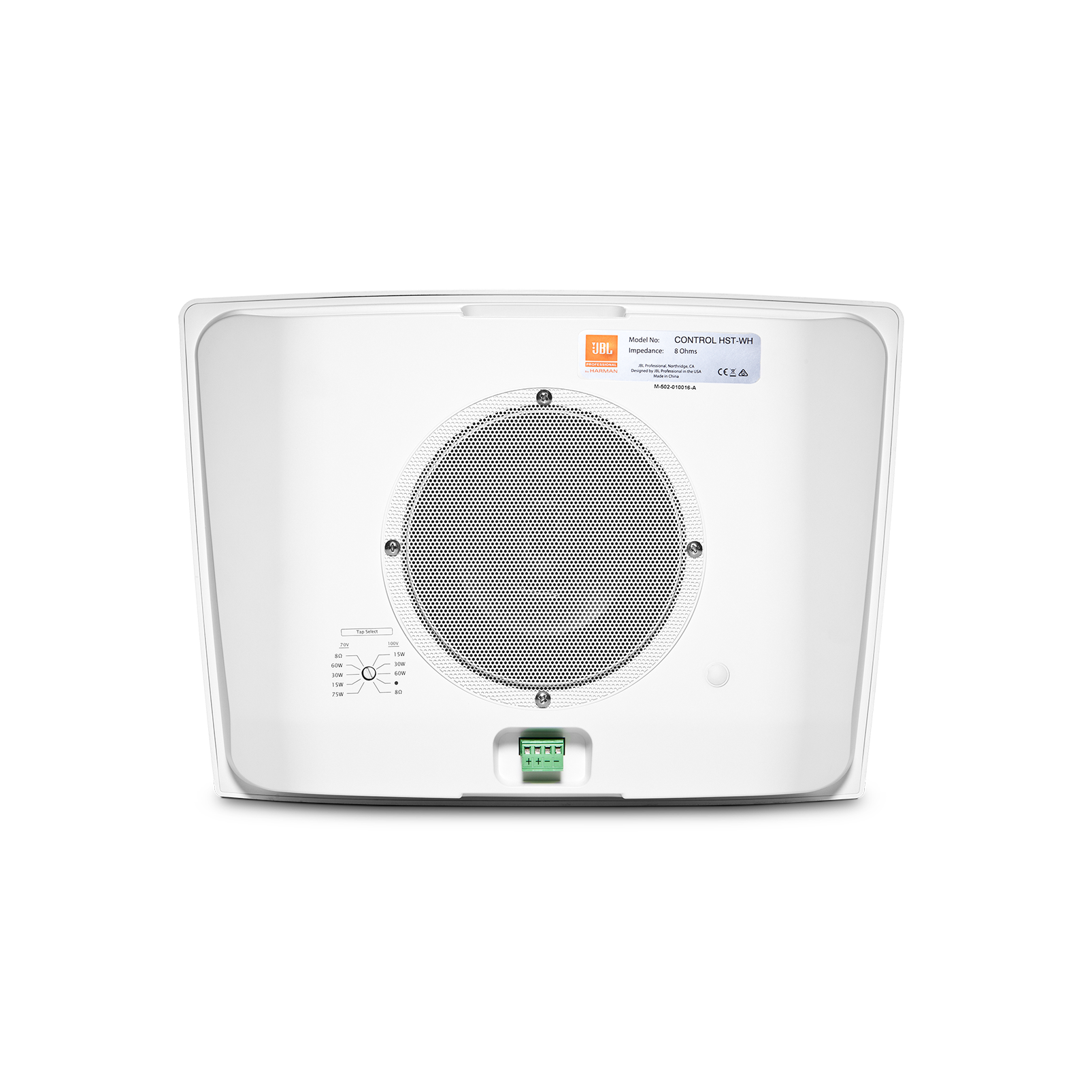

- Input Connectors
- Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm).
- Outdoor Capability
- IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.

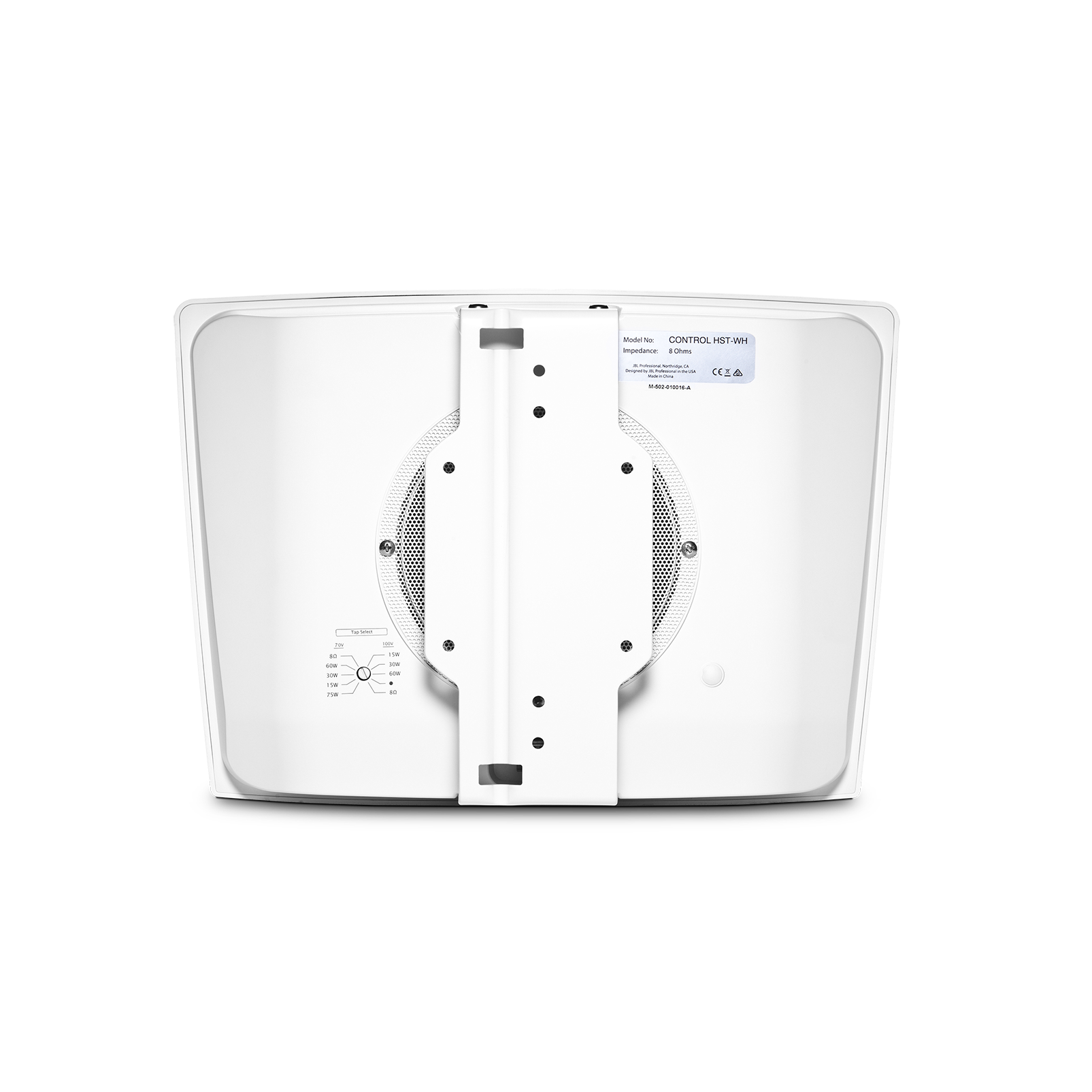

- Included Accessories
- U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel.
- Mounting Hardware
- Included wall-mount bracket.
Dimensions
- Dimensions (H x W x D)
- 362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.
- Net Weight (each)
- 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket
